Ventilator Phanteks D30-120 12 cm wit 250-2000 RPM fluïdumdynamisch lager

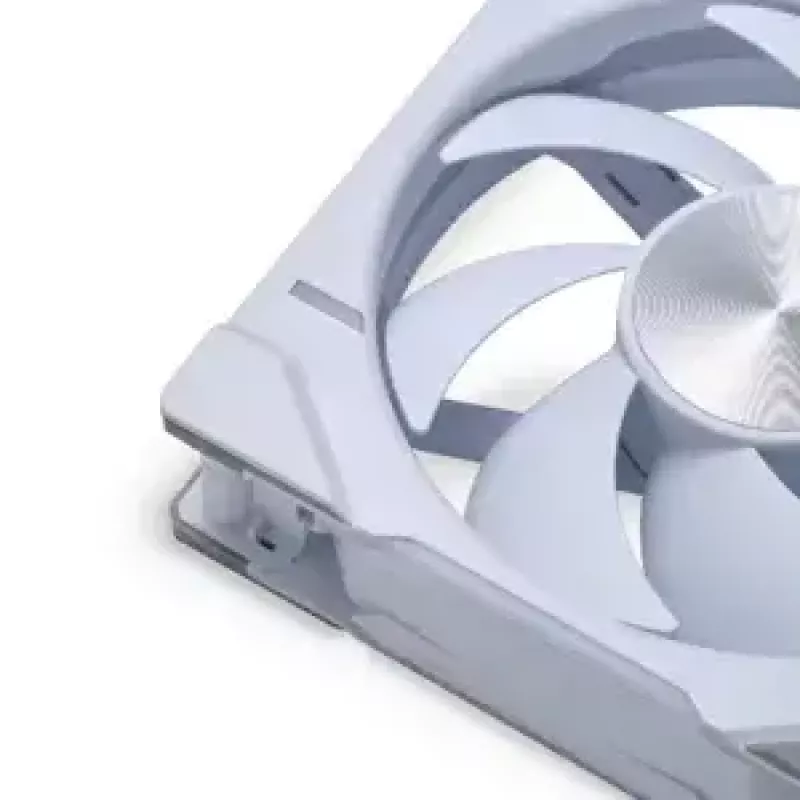

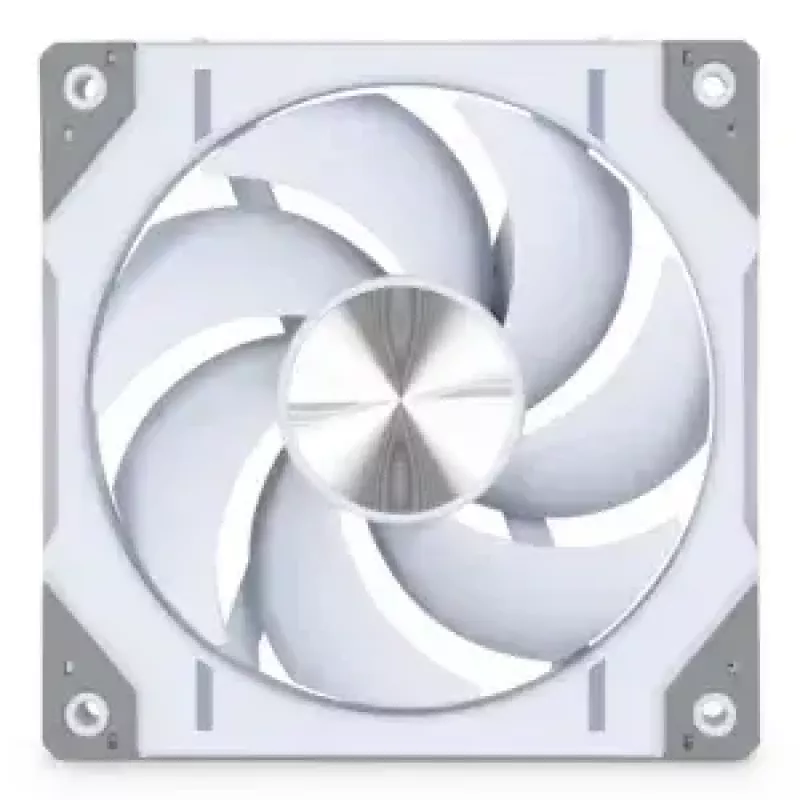

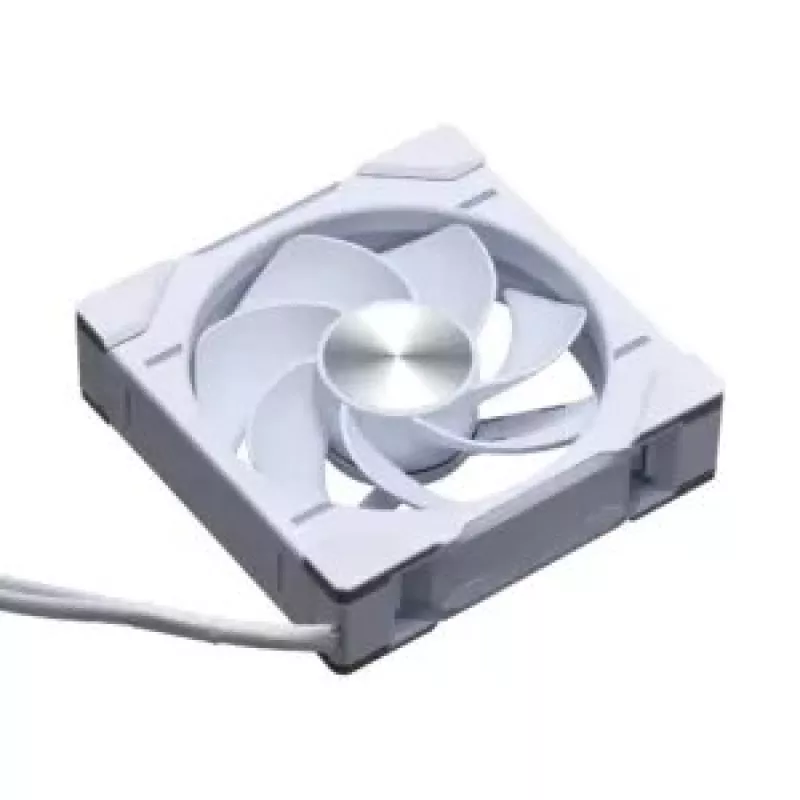

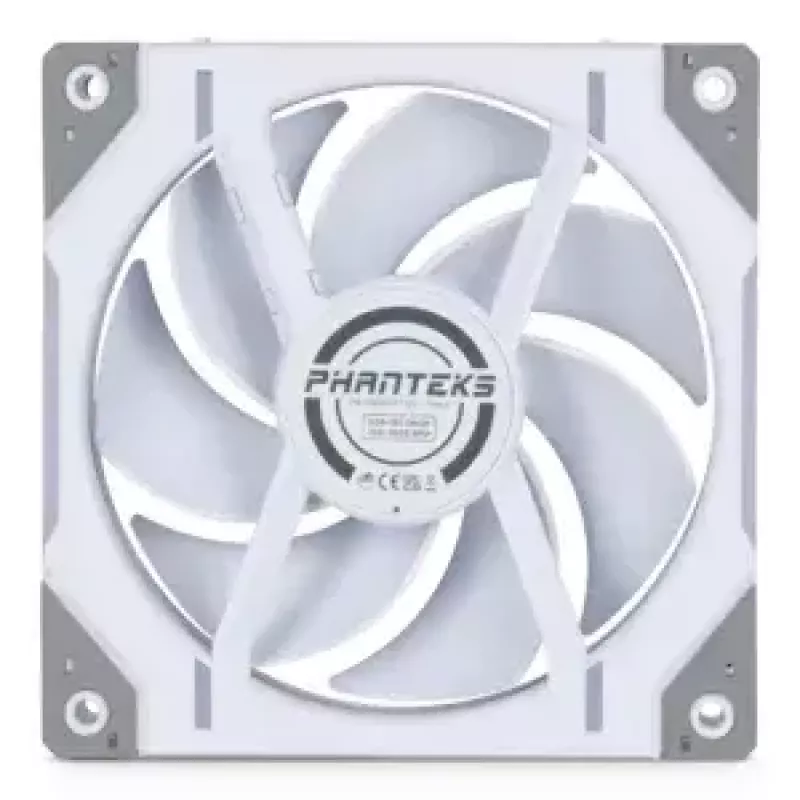

The Phanteks D30-120 is a 120 mm case fan with integrated D-RGB lighting, a 30 mm thick aerodynamic blade design and Fluid Dynamic Bearing for reduced noise and long service life. It supports PWM control from a standard motherboard fan header and is available in regular and reversed airflow models to allow flexible installation. The white finish and full-frame lighting make it suitable for builds that require both effective cooling and a clean visual appearance.

Advantages

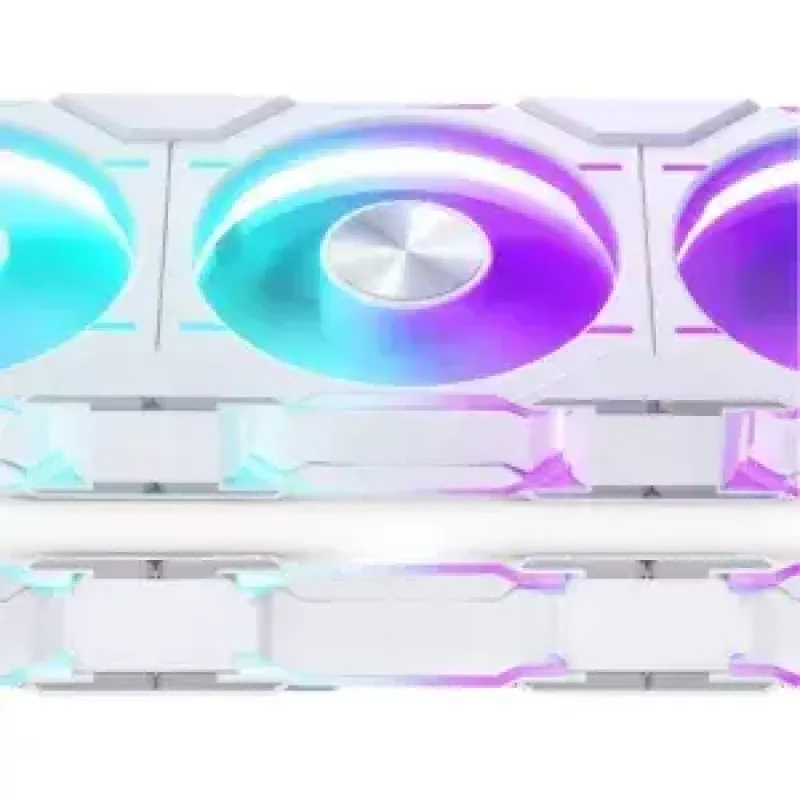

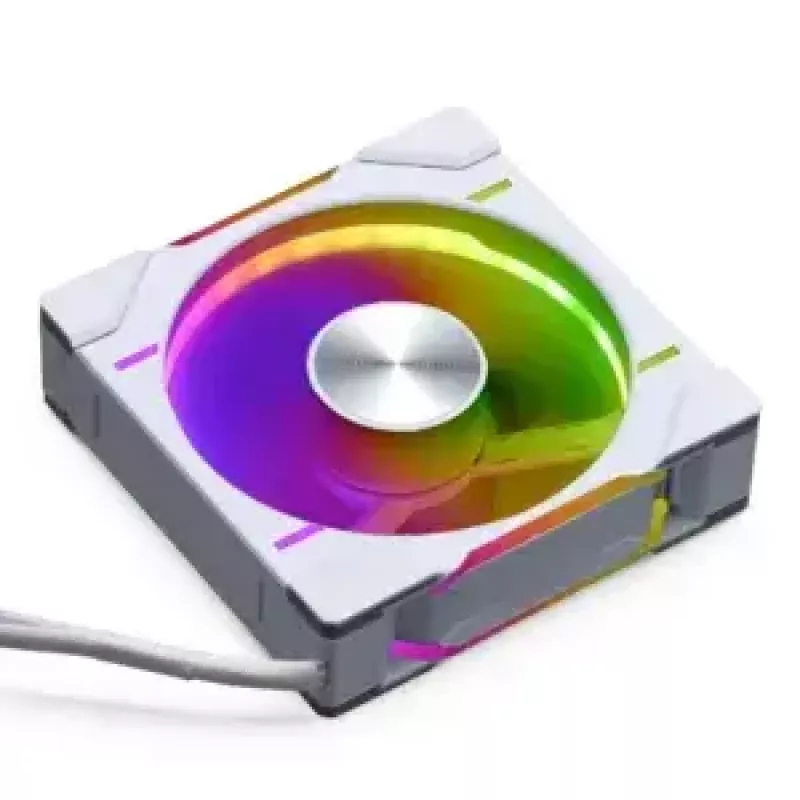

The D30-120 offers full-frame D-RGB illumination visible from all sides and blade reflections for smooth lighting effects. A 30 mm thick blade profile increases noise-normalized performance, improving static pressure for radiators and performance across mesh or dust filters. Bridge connectors allow linking up to four fans into a single, cleaner cable run, and screw cover plates hide mounting screws for a neater look. Fluid Dynamic Bearing reduces operational noise while enhancing durability.

Suitable for

• Case cooling for gaming or workstation PCs
• Radiator or AIO cooling where higher static pressure is needed
• Systems with mesh or dust filters
• RGB-themed builds requiring D-RGB synchronization

Key specifications

• Fan diameter: 120 mm
• Speed range: 250–2000 RPM (PWM)
• Bearing type: Fluid Dynamic Bearing
• Maximum air pressure: 3.01 mmH2O
• Operating voltage: 5–13.2 V
• Colour: White
• MPN: PH-F120D30_DRGB_PWM_WT01
• EAN: 0886523002932

How to use

Mount the fan to the case or radiator using the supplied screws and, if desired, install the screw cover plates to hide the heads. Choose the regular or reversed model according to the required airflow direction (regular: front to rear; reversed: rear to front). Connect the PWM power cable to a motherboard fan header for automatic speed control. Attach the D-RGB connector to a compatible Digital-RGB header on the motherboard or a Phanteks Digital-RGB controller to enable lighting control and synchronization.

Recommendations

For optimal cooling performance on radiators and through filters, use multiple D30-120 fans configured to match airflow direction and link them with the bridge connectors to minimize cable clutter; ensure your motherboard or controller supports Digital-RGB to synchronize lighting effects.
