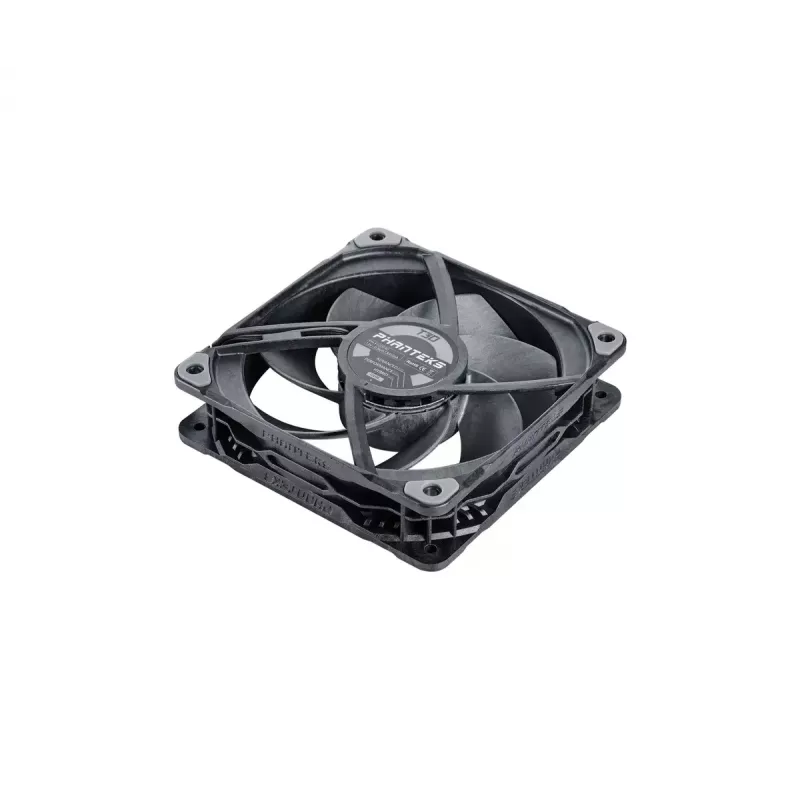

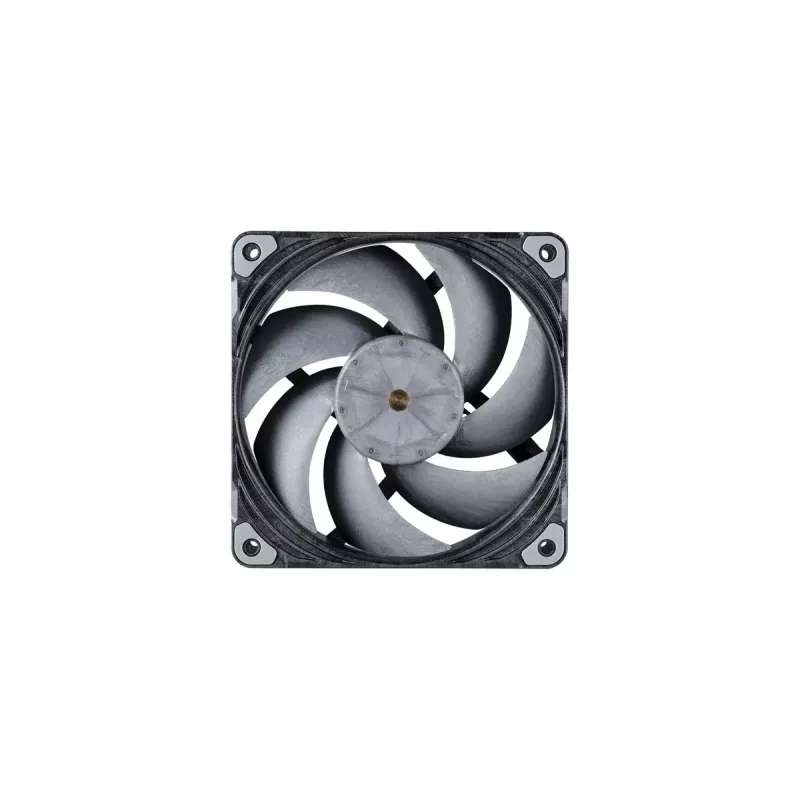

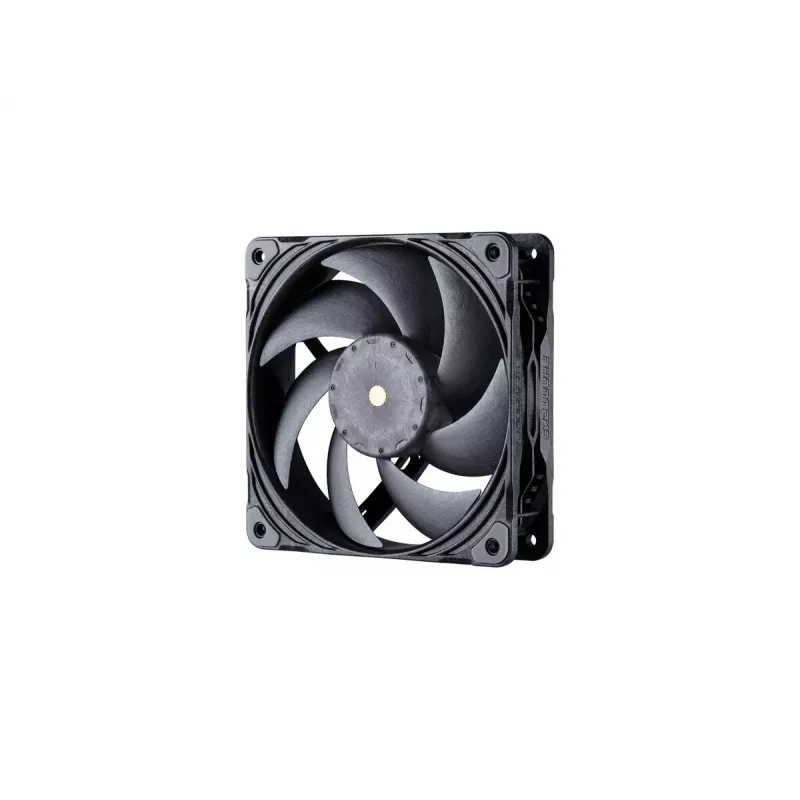

Ventilator Phanteks PH-F120T30 120 mm computerbehuizing-ventilator grijs 3 stuks

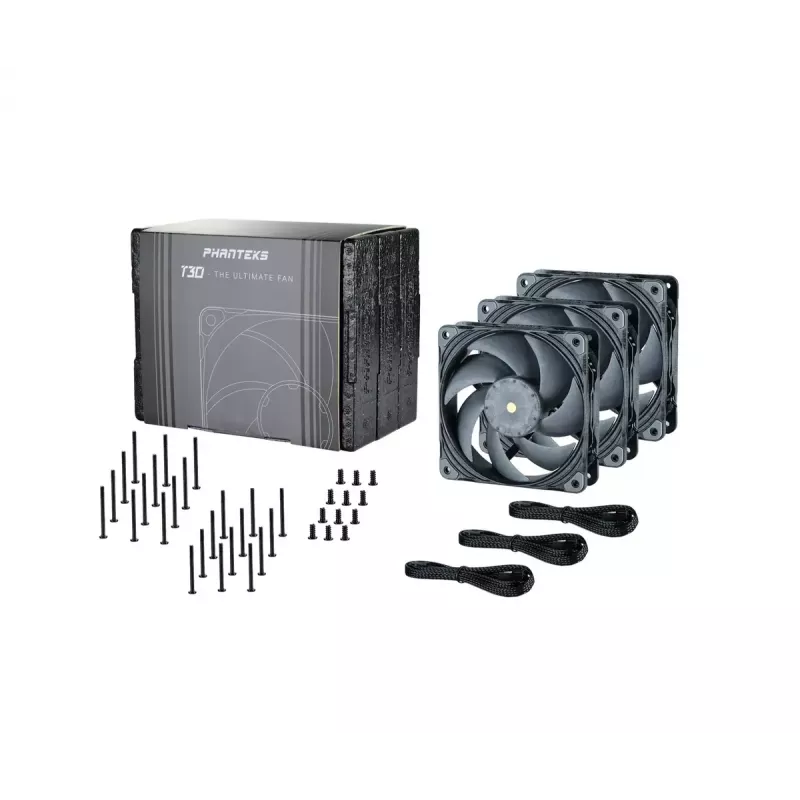

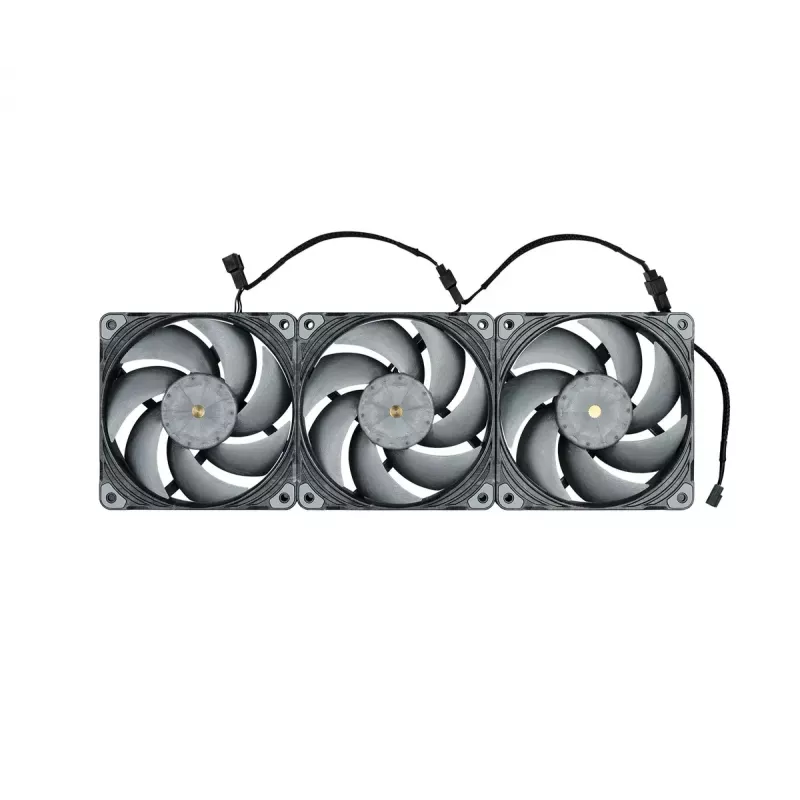

The Phanteks PH-F120T30 is a 120 mm computer case fan engineered for efficient case airflow and cooling. Developed in collaboration with SUNON and leveraging Phanteks' chassis and cooler expertise, this 30 mm-thick fan uses an aerodynamic blade design and industrial-grade components to balance high cooling performance with low noise and good acoustic quality. The grey three-pack (PH-F120T30_BG_3P) is suitable for upgrading or building systems requiring reliable case ventilation.

Advantages

The T30-120 combines a refined aerodynamic blade profile and a thicker 30 mm frame to increase airflow and static pressure compared with standard 25 mm fans while maintaining low noise levels. Dual ball bearings enhance durability and operational stability. Manufactured with industrial-grade materials, the fan aims for consistent performance over extended use.

Suitable for

• General PC case ventilation
• Airflow-focused or mixed air/liquid-cooled desktop systems
• Replacing or upgrading standard 120 mm fans in enclosures

Key specifications

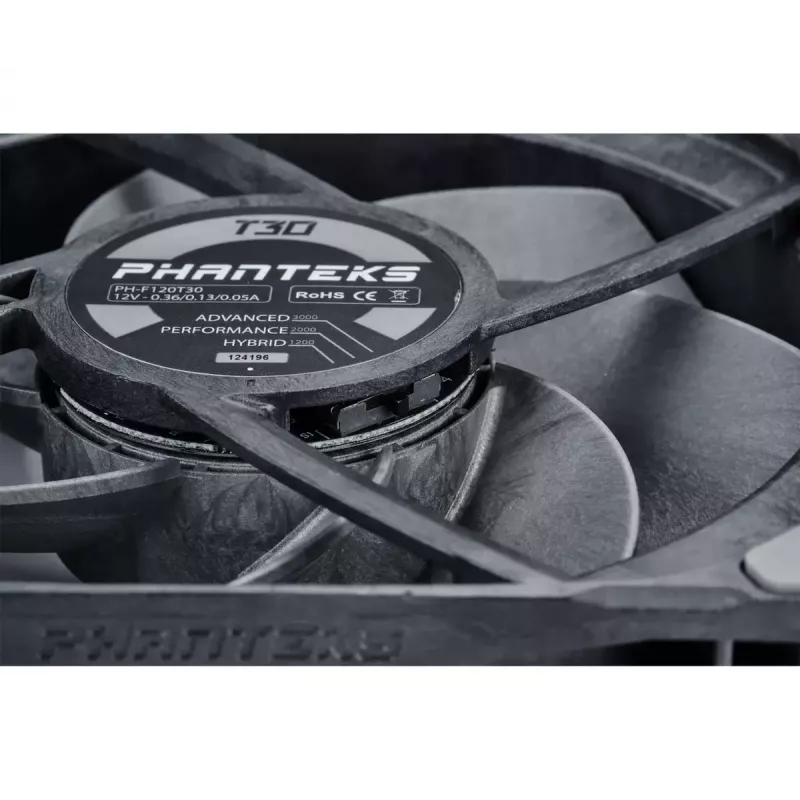

• Model: Phanteks PH-F120T30 (PH-F120T30_BG_3P)
• Fan diameter: 120 mm

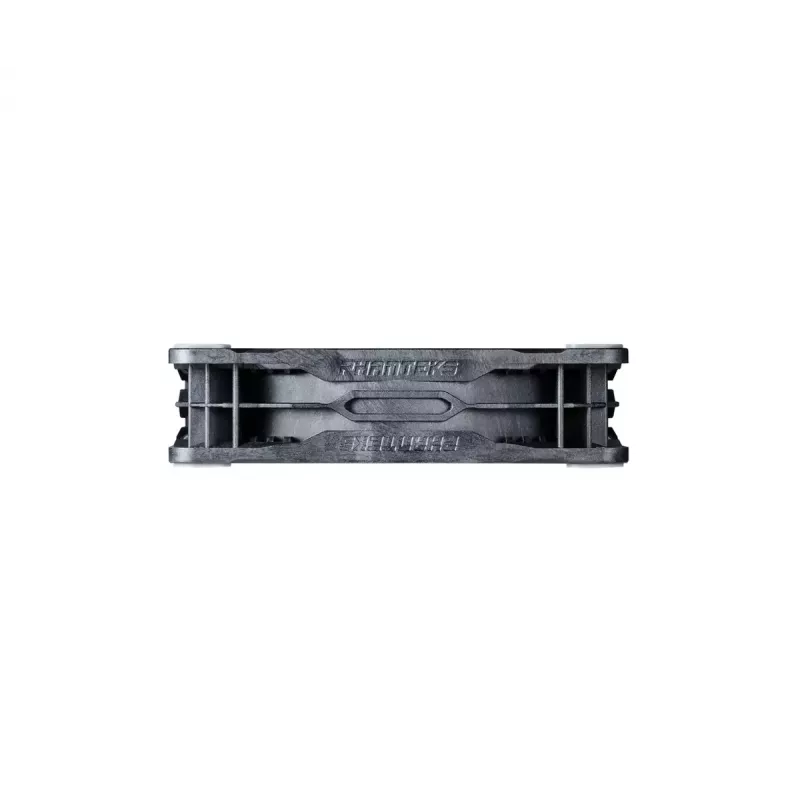

• Frame thickness: 30 mm
• Maximum speed: 2000 RPM
• Maximum airflow: 67 CFM
• Maximum static pressure: 0.13 mmH2O
• Bearing type: Dual ball bearing
• Operating voltage range: 10.2–13.2 V
• Colour: Grey
• Weight (single): 0.231 kg

How to use

Install the fan in a compatible 120 mm mounting location in your case, orienting the airflow direction toward the desired intake or exhaust path. Use the appropriate mounting screws and ensure secure attachment to avoid vibration. Connect the fan to a compatible header on the motherboard or a fan controller that supports the operating voltage range. Adjust fan speed through BIOS, software, or a hardware controller as needed.

Recommendations

For balanced cooling and acoustics, place the PH-F120T30 fans to create a consistent front-to-back or bottom-to-top airflow path. Regularly clean dust filters and fan blades to maintain performance and service life.
