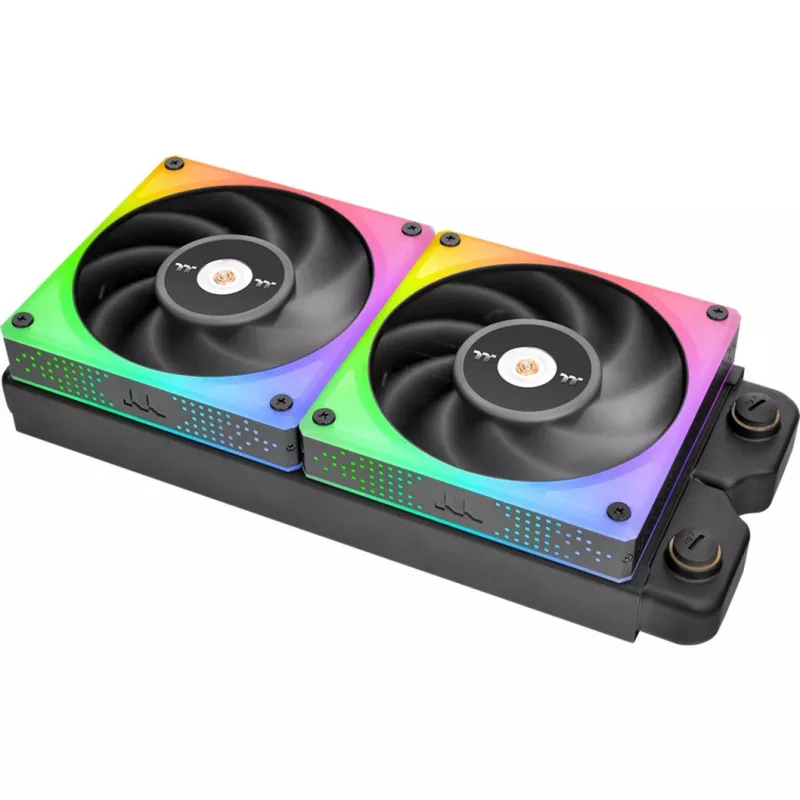

Ventilator Thermaltake TOUGHFAN 12 RGB 12 cm wit 500-2000 t/min

The Thermaltake TOUGHFAN 12 RGB is a 120 mm case fan with integrated addressable RGB lighting and a speed range of 500–2000 RPM. It features a luminous frame with 24 addressable LEDs supporting 16.8 million colors and is built with a full-steel motor hub and LCP fan blades to ensure stability, reduced vibration and low noise while delivering focused airflow and static pressure for case or radiator cooling.

Advantages

TOUGHFAN 12 RGB provides precise lighting control through a 4th-generation software controller compatible with TT RGB Plus, offering stable connections and synchronized 16.8M color effects. The fan delivers up to 2000 RPM, 53.75 CFM airflow and 2.4 mm-H2O static pressure with a low noise level of 21.2 dB-A. Construction details such as a full-steel motor hub, 2nd-generation hydraulic bearing and liquid crystal polymer (LCP) blades increase durability, lower operational noise and extend lifespan. A transparent anti-vibration rubber mounting system further reduces vibration and preserves lighting clarity.

Suitable for

• Case cooling for gaming PCs and workstations
• Radiator or AIO cooling where high static pressure is beneficial
• Builds that require addressable RGB synchronization with TT RGB Plus
• Quiet systems where low noise and long fan life are priorities

Key specifications

• Type: 120 mm fan
• Speed: 500–2000 RPM
• Airflow: 53.75 CFM (maximum)
• Static pressure: 2.4 mm-H2O
• Noise level: 21.2 dB-A
• RGB: 24 addressable LEDs, 16.8 million colors, TT RGB Plus compatible
• Motor hub: full-steel
• Bearing: 2nd-generation hydraulic
• Blade material: Liquid crystal polymer (LCP)
• Color: White

How to use

Install the TOUGHFAN 12 RGB in your case or on a radiator using the included anti-vibration rubber pads and screws. Connect the fan power and RGB connectors to compatible motherboard headers or to a Thermaltake RGB controller supporting TT RGB Plus. Adjust fan speed through your motherboard BIOS, fan controller or software and configure lighting effects with the TT RGB Plus application or the supported controller. Ensure airflow orientation matches your intended intake or exhaust direction.

Recommendations

For optimal cooling and balanced acoustics, use the TOUGHFAN 12 RGB in push-pull radiator configurations or pair two fans per radiator position. Keep cables tidy to avoid obstructing airflow and periodically clean the blades to maintain performance and prolong lifespan.
