VENTION HDMI Splitter 1 ingang 8 uitgangen 4K@60Hz Zwart

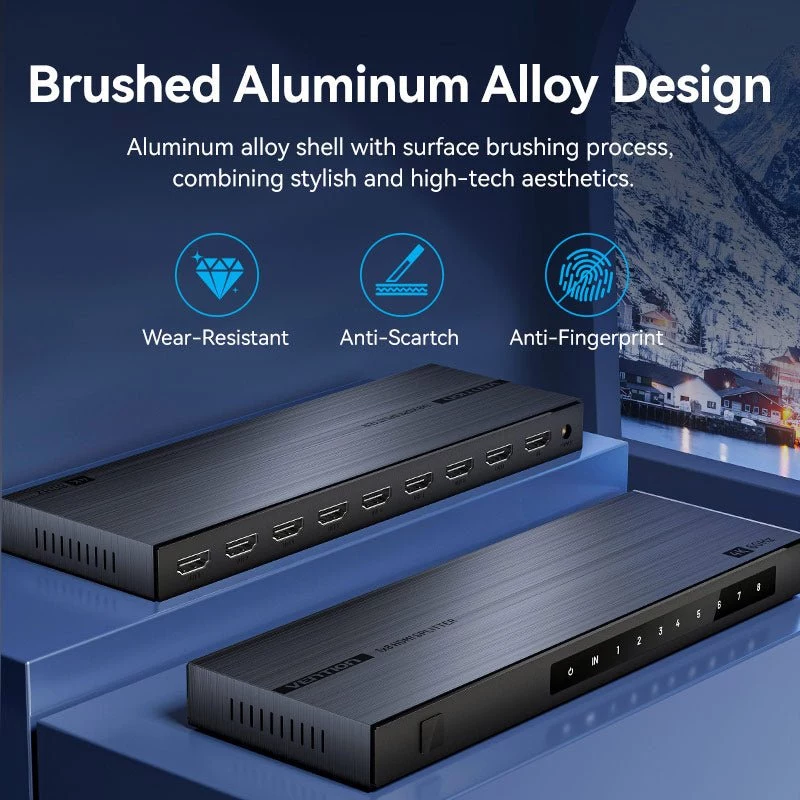

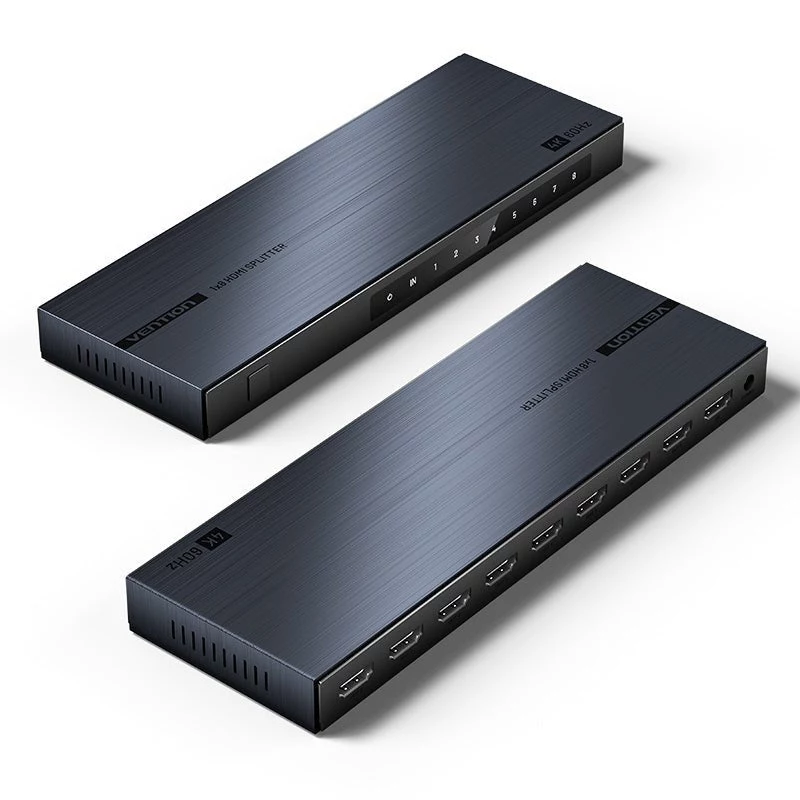

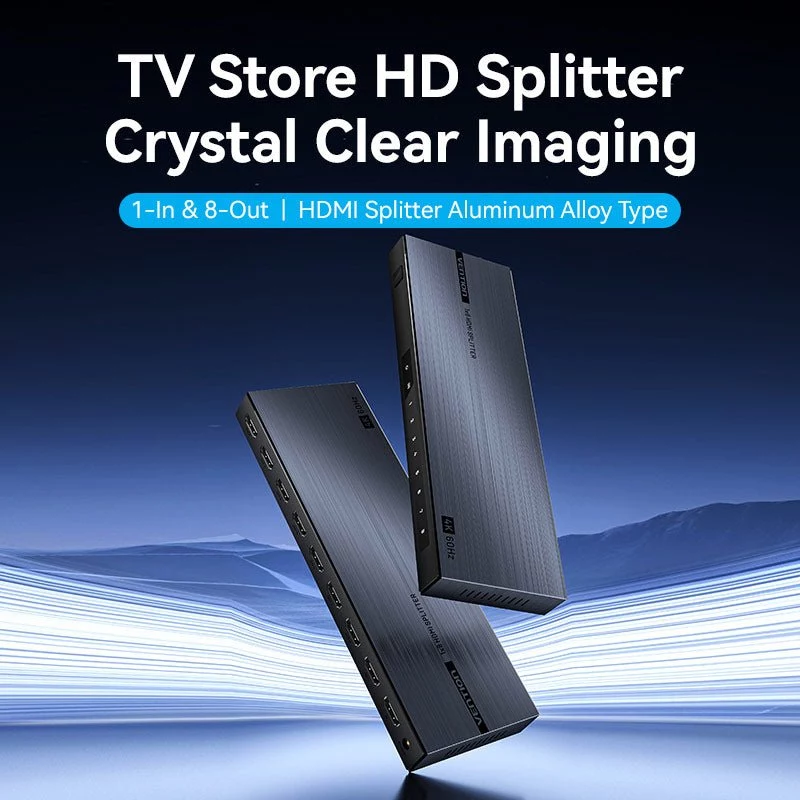

The VENTION HDMI Splitter 1x8 is a high-performance device that distributes a single HDMI source to eight displays simultaneously, supporting resolutions up to 4K@60Hz. Built with an aluminum alloy housing, it ensures stable signal transmission and efficient heat dissipation. Ideal for digital signage, conference rooms, and home entertainment setups.

Advantages

Supports 4K@60Hz resolution with 18Gbps bandwidth, HDCP 2.2, HDR10, and Dolby Vision. Plug-and-play installation with no drivers required. Durable aluminum alloy construction for long-lasting use.

Suitable for

• Home theaters and gaming setups
• Digital signage and advertising displays
• Conference rooms and educational environments
• Retail stores and showrooms

Key specifications

• HDMI Version: 2.0
• Max Resolution: 4K@60Hz (3840x2160)
• Video Bandwidth: 18 Gbps
• HDCP: 2.2 (backward compatible with 1.4)
• Inputs: 1
• Outputs: 8
• Audio Formats: DTS-HD, Dolby-trueHD, LPCM7.1, DTS, Dolby-AC3, DSD
• HDR Support: HDR10, Dolby Vision
• Color Depth: 8/10/12-bit (1080p), 8-bit (4K@60Hz)
• Power Supply: DC 5V/2A (adapter included)
• Housing Material: Aluminum Alloy
• Color: Black
• Max Input Cable Length: 5m (AWG26)
• Max Output Cable Length: 10m (AWG26)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10°C to 80°C
• ESD Protection: ±8kV air, ±4kV contact
• LED Indicators: Power, Input, Output Status

Recommendations

For optimal performance, use high-quality HDMI cables (AWG26 or better) and ensure the power adapter is connected. This splitter is not a switch or matrix; it duplicates the same signal to all outputs.
