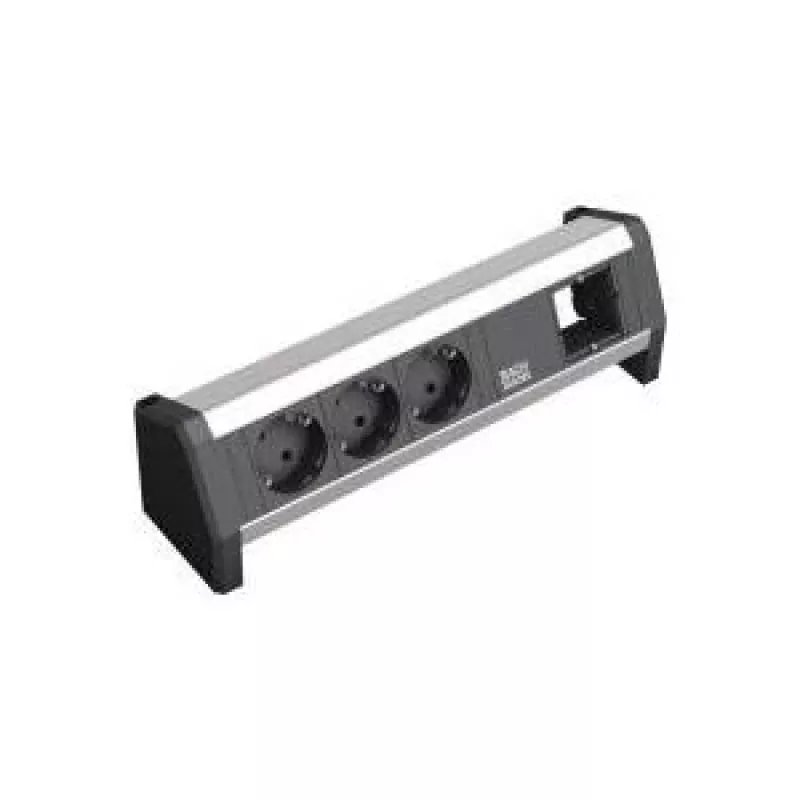

Verlengsnoer Bachmann 3x Schuko 1x GST18 zwart zilver

The Bachmann Power Extension provides three Schuko (Type F) socket outlets with earthing contact plus one GST18 plug connection for in-feed or onward power distribution. Housed in an anodised aluminium profile with black and silver plastic parts, the unit is designed for desk-edge installation and for linking multiple modules via the integrated Wieland GST18 connector. The product supports 230 V AC input and is intended for use in offices and home workstations where accessible power and safe, standardised plug connections are required.

Advantages

The Wieland GST18 plug is used for the rear power connection and for the power output, offering a standardised, lockable connector with touch-safe contacts and the option to swap cables for different lengths. The anodised aluminium profile gives a durable housing while the bracket allows desk-edge mounting without damaging the tabletop. A downstream GST18 socket enables series connection of multiple power strips in compliance with relevant standards.

Suitable for

• Office desks and individual workstations
• Home offices and study desks
• Situations requiring a mix of fixed under-desk power (via a STEP strip) and easily accessible desk-edge outlets
• Setups where standardised GST18 linkage between power modules is needed

Key specifications

• Brand: Bachmann
• Model / MPN: 902.000
• EAN: 4016514030439
• Outputs: 3 × Schuko (Type F) sockets with earth, set at 35°
• Power connector: 1 × GST18 input / 1 × GST18 output
• Length: 322.5 mm
• Housing: Anodised aluminium profile with black/silver plastic parts
• Rated voltage: 230 V AC
• Rated current (from product summary): 16 000 mA (16 A)

How to use

Mount the unit on the desk edge using the supplied bracket and tighten the internal screw with a size 4 Allen key; this mounting method is designed not to damage the tabletop. Connect the incoming mains cable to the GST18 inlet on the rear panel; if required, use a longer or shorter GST18 cable because the connector is interchangeable. The GST18 outlet can be used to forward power to an adjacent module or a downstream power strip. Plug devices such as laptops, chargers and peripherals into the three Schuko sockets for easy access.

Recommendations

Use the GST18 connector to chain multiple power strips only in accordance with local electrical regulations and the product's rated current. Secure the unit with the bracket and ensure the Allen screw is tightened to prevent movement. Do not exceed the rated current of 16 A total across the outputs.
