VGA-kabel Vision 2x VGA 15-pins D-Sub 10 m

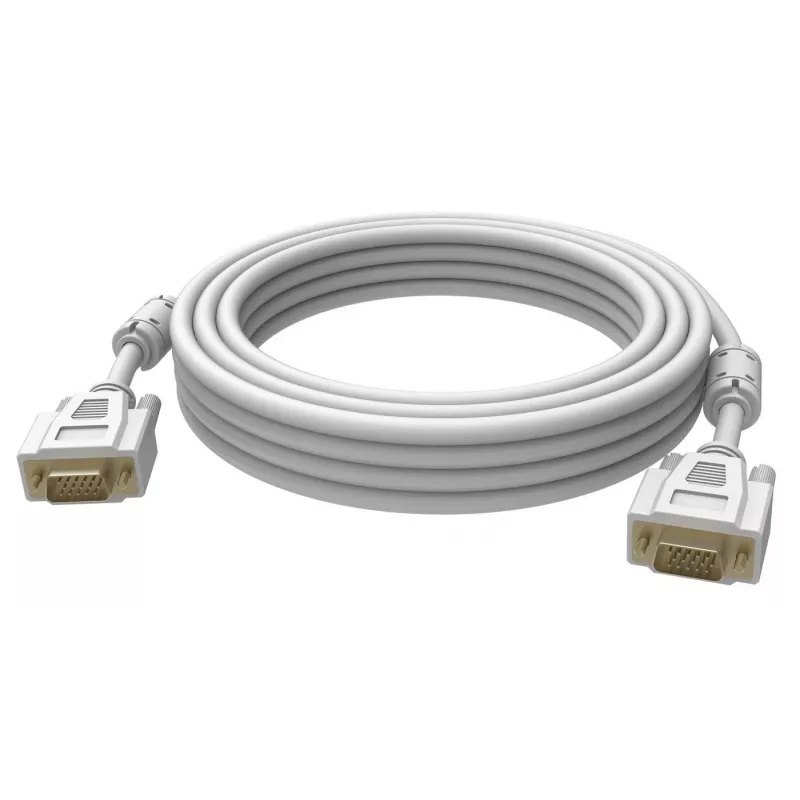

VGA Cable Vision 2x VGA 15-pin D-Sub 10m plugs into the VGA socket on a computer and connects to a display device at the other end. This 10 metre VGA cable features two 15-pin D-Sub (male) connectors, gold-plated contacts and ferrite cores on both ends to reduce RF interference. The cable has a PVC sheath with an outer diameter of 8.0 mm and uses 28 AWG conductors with an Al‑Mg alloy braid providing over 65% coverage. It is CE- and FCC-certified for compliance with international standards.

Advantages

The cable provides reliable analogue video transmission with gold-plated VGA connectors for stable contact and ferrite cores to suppress radio-frequency interference. Its 8 mm PVC jacket and 28 AWG conductors offer a balance of flexibility and durability for installations up to 10 metres. The braided Al‑Mg shielding with a drain wire laid between aluminum mylar and braid enhances noise rejection and maintains impedance characteristics.

Suitable for

• Connecting desktop computers to monitors
• Connecting laptops or PCs to projectors
• Use in classrooms, meeting rooms, and presentation setups
• Temporary or fixed AV installations requiring a 10 m VGA link

Key specifications

• Connectors: VGA 15-pin D-Sub (male) to VGA 15-pin D-Sub (male)
• Length: 10 m
• Colour: White
• Sheath: PVC, outer diameter 8.0 mm
• Conductor thickness: 28 AWG
• Shielding: Al‑Mg alloy braided shield, >65% coverage; drain wire between aluminum mylar and braid
• Ferrite cores on both ends
• Impedance: 75 Ω (at 10 MHz, coaxial reference)
• Resistance: 237.25 Ω/1000 m at 20 °C
• Compliance: CE, FCC

How to use

Insert one VGA 15-pin D-Sub (male) connector into the VGA socket of your computer and tighten the thumbscrews to secure the connection. Plug the other end into the VGA input of the display device (monitor, projector or similar) and tighten its thumbscrews. If necessary, enable the external display in your operating system or projector settings and adjust resolution and refresh rate to match the display capabilities.

Recommendations

For best signal quality over 10 m, route the cable away from strong sources of electromagnetic interference (power cables, high-current equipment). Ensure connectors are fully seated and thumbscrews tightened; if image quality is degraded, verify display settings and check both ferrite cores are present and properly fitted.
