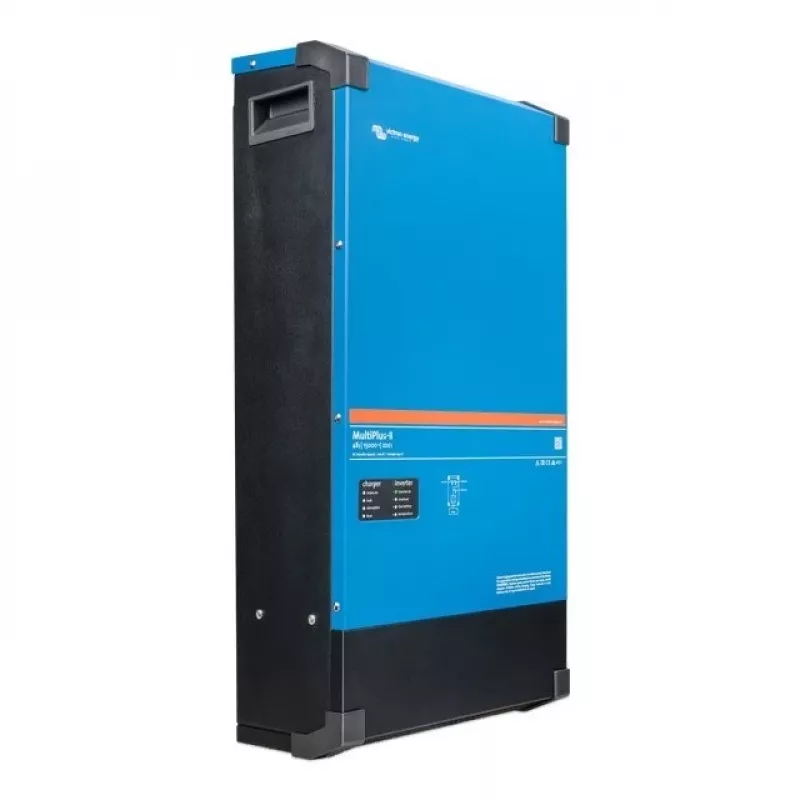

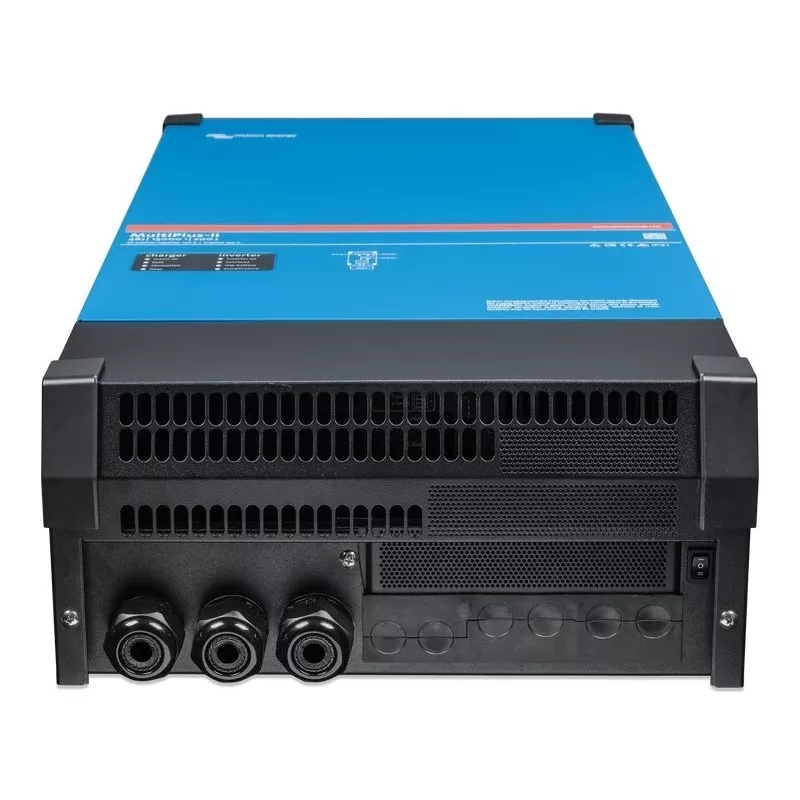

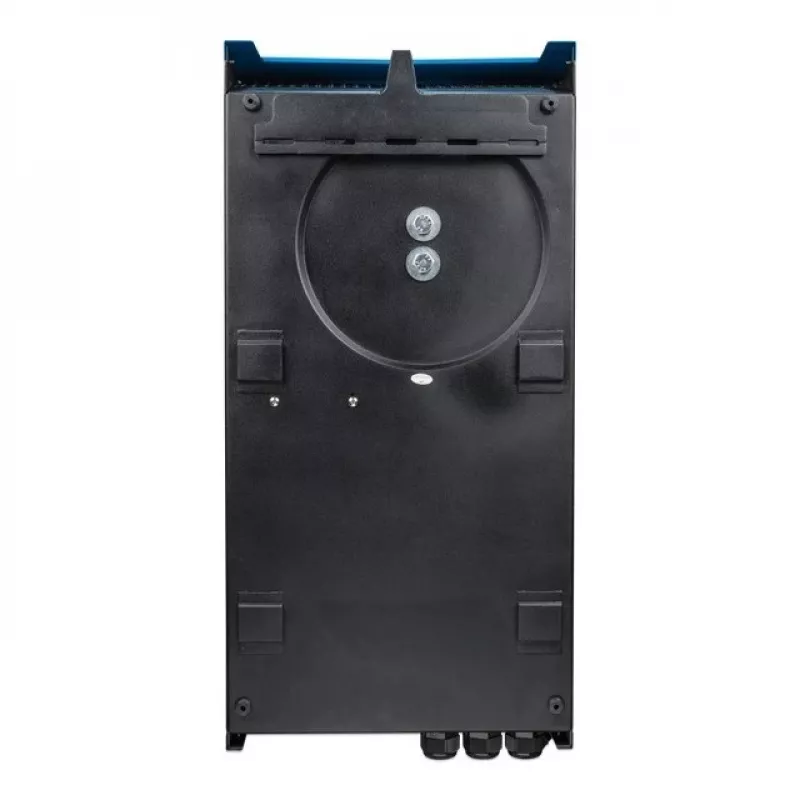

Victron Energy MultiPlus-II 48/15000/200-100 omvormer/lader

The Victron Energy MultiPlus-II 48/15000/200-100 is a powerful inverter/charger designed for demanding off-grid and mobile applications. Combining a 15000VA inverter, a 200A battery charger, and a 100A AC transfer switch, it delivers reliable power conversion and management. With PowerAssist technology, it can supplement limited AC sources with battery power, preventing overloads. The unit supports parallel and three-phase configurations for scalability.

Advantages

High continuous output of 15000VA / 12000W at 25°C with 96% efficiency. PowerAssist feature dynamically balances AC input and battery power. Robust construction with aluminium enclosure and comprehensive protection features. Suitable for professional marine, vehicle, and stationary systems.

Suitable for

• Off-grid solar systems
• Marine and RV installations
• Backup power systems
• Industrial and commercial applications

Key specifications

• Battery Voltage: 48 VDC
• Inverter Output Power (Continuous): 15000 VA / 12000 W (at 25°C)
• Inverter Output Voltage: 230 VAC
• Inverter Output Frequency: 50 Hz (adjustable 60 Hz)
• Max. Efficiency: 96%
• Charger Max. Current: 200 A
• AC Transfer Switch Current: 100 A
• AC Input Voltage Range: 187 - 265 VAC
• PowerAssist Feature: Yes
• Parallel & 3-Phase Capability: Yes
• Zero-load Power: 45 W
• Operating Temperature Range: -40 to +65°C
• Communication Ports: VE.Bus, AUX, Temperature sensor, Voltage sensor, Relay
• Enclosure Material: Aluminium
• Protection Features: Output short circuit, overload, battery voltage high/low, temperature high, DC ripple high, AC backfeed
• Inverter Topology: High frequency
• Total Harmonic Distortion (THD): < 2%
• Surge Power: 25000 W

Recommendations

For optimal performance, use with appropriate battery banks and ensure proper ventilation. Consult the manual for detailed installation and configuration instructions.
