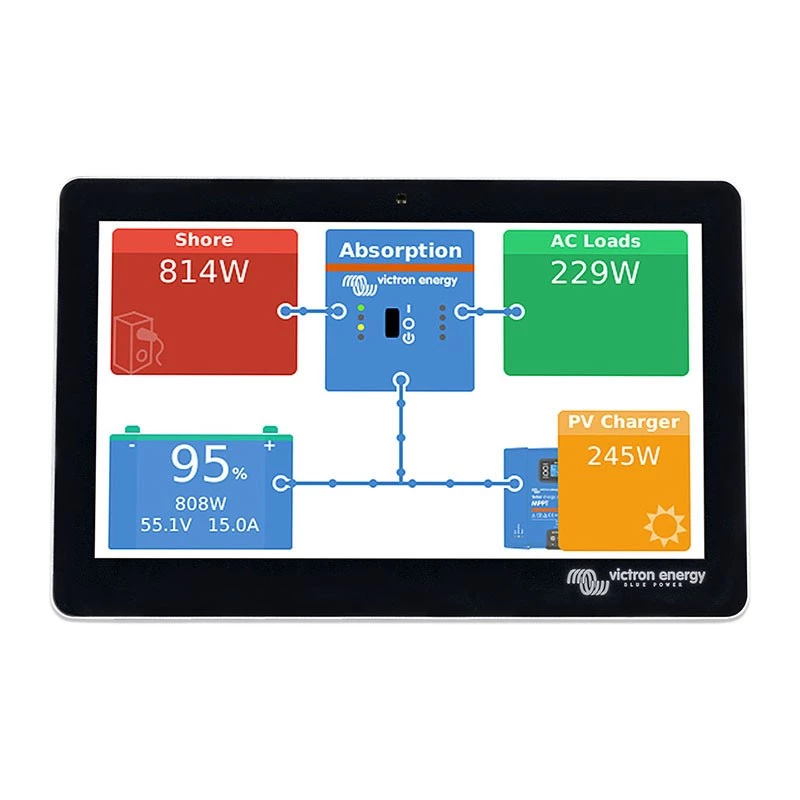

Touchscreen-display GX Touch 70 BPP900455070 — 7 inch, 800×480 resolutie

GX Touch 70 BPP900455070 is a 7-inch touchscreen display with a native resolution of 800×480 pixels. Designed for control panels, industrial human-machine interfaces (HMIs) and compact embedded systems, the module offers a clear graphical surface and touch input in a small form factor. The display supports standard mounting and electrical interfaces for integration into devices where a compact, easy-to-read touchscreen is required.

Advantages

The 7-inch glass surface and 800×480 resolution provide readable text and simple graphics in a compact footprint. Capacitive touch responsiveness enables intuitive user interaction while the module’s compact dimensions simplify integration into space-limited enclosures. The display’s common mounting arrangement and electrical connections reduce development time when adding a touchscreen interface to industrial panels or embedded products.

Suitable for

• Industrial control panels and machine HMI
• Embedded devices and single-board computer projects
• Compact operator terminals and status displays
• Custom enclosures requiring a small touchscreen interface

Key specifications

• Active screen diagonal: 7 inches
• Native resolution: 800 × 480 pixels (WVGA)
• Touch input: capacitive touch panel
• Viewing area: compact format suitable for single-hand operation
• Typical mounting: standard cutout and screw-mount arrangement for panel integration
• Visual output: full-color transmissive TFT suitable for text and basic graphics

How to use

Install the touchscreen into the device panel using the standard cutout dimensions and secure it with the recommended mounting points. Connect the display’s power and signal lines according to the controller or HMI driver documentation for your system. Calibrate the touch panel through the host controller or operating system utilities to ensure accurate touch mapping. Use the 800×480 pixel resolution when designing user interfaces so that controls, text and icons render at the intended size and spacing.

Recommendations

For reliable operation in industrial environments, verify electrical compatibility with your host controller and provide stable supply voltage. Protect the visible surface from abrasive cleaning agents; use a soft, lint-free cloth and manufacturer-recommended cleaning solutions. During integration, allow for service access and cable strain relief to facilitate maintenance and reduce mechanical stress on connectors.
