Video-deurintercom DoorBird D1102FV

The DoorBird D1102FV is a stainless steel video intercom system designed for secure door communication and remote monitoring. It delivers 1080p resolution video with an ultra wide-angle lens offering a 150° horizontal field of view, combined with IR LED illumination for night vision. The unit is weather-resistant with an IP65 rating and connects via wired Ethernet or Wi‑Fi to integrate with building control systems, mobile apps, and network recorders. Its compact dimensions make it suitable for installation in constrained spaces while providing a professional exterior finish.

Advantages

The DoorBird D1102FV combines high-definition 1080p imaging and a 150° ultra wide-angle lens to capture broad scenes at entry points, reducing blind spots. Constructed from stainless steel and rated IP65, the device withstands rain and dust for reliable outdoor use. Infrared LEDs allow for usable night-time images. Flexible connectivity options — including Ethernet and 802.11b/g/n Wi‑Fi — support integration with IP-based access control, remote monitoring, and smartphone notifications. The slim profile simplifies mounting on narrow surfaces.

Suitable for

• Residential entrances and apartment building lobbies
• Commercial premises and office entry points
• Gated communities and caretakers’ stations
• Locations requiring weatherproof outdoor surveillance and two-way communication

Key specifications

• Video resolution: 1080p (Full HD)
• Lens: ultra wide-angle, 150° horizontal field of view
• Night vision: IR LED illumination for low-light imaging
• Housing material: stainless steel
• Ingress protection: IP65 (protection against dust and water jets)
• Connectivity: Ethernet (10 Gigabit and 100 Gigabit compatible) and Wi‑Fi 802.11b/g/n

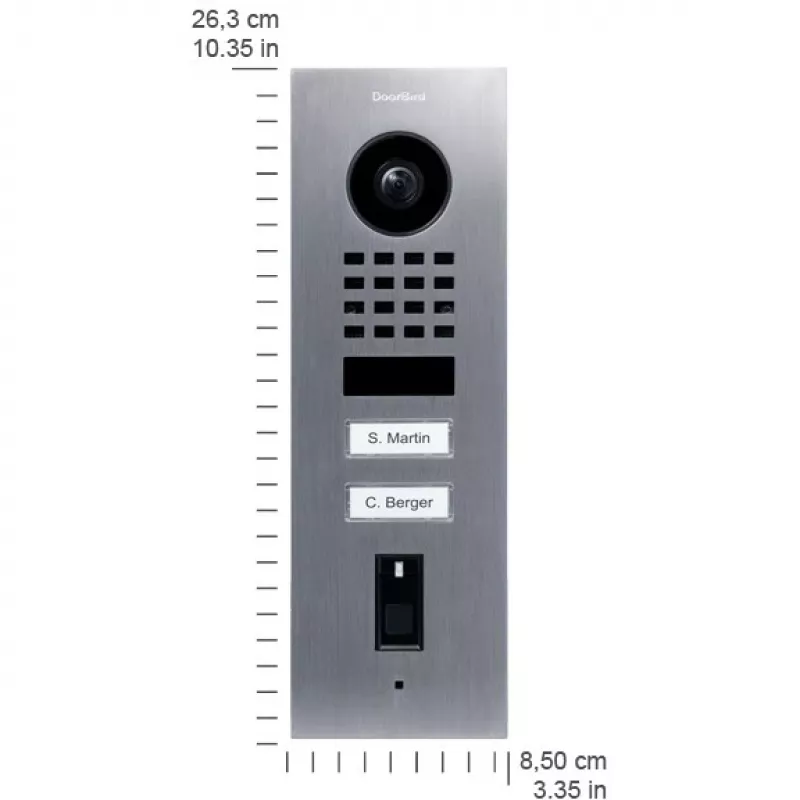

• Dimensions: 85 mm (W) x 29.7 mm (D) x 263 mm (H)

How to use

Mount the DoorBird D1102FV at the chosen entrance following local wiring and mounting regulations, ensuring a stable network connection via Ethernet or Wi‑Fi. Power the unit per the manufacturer's wiring requirements and configure network settings using the provided mobile app or web interface. Position the camera to cover the desired approach area while avoiding direct glare sources. Test the IR night function in low-light conditions and adjust angle or height if necessary. Integrate with access control or recording systems as needed through the device's IP interfaces.

Recommendations

For optimal performance, install the unit at a height and angle that centers the entrance area within the 150° field of view and use a wired Ethernet connection where possible for the most reliable data transmission. Regularly inspect the stainless steel housing and seals to maintain the IP65 weatherproofing, and clean the lens periodically to ensure clear image quality.
