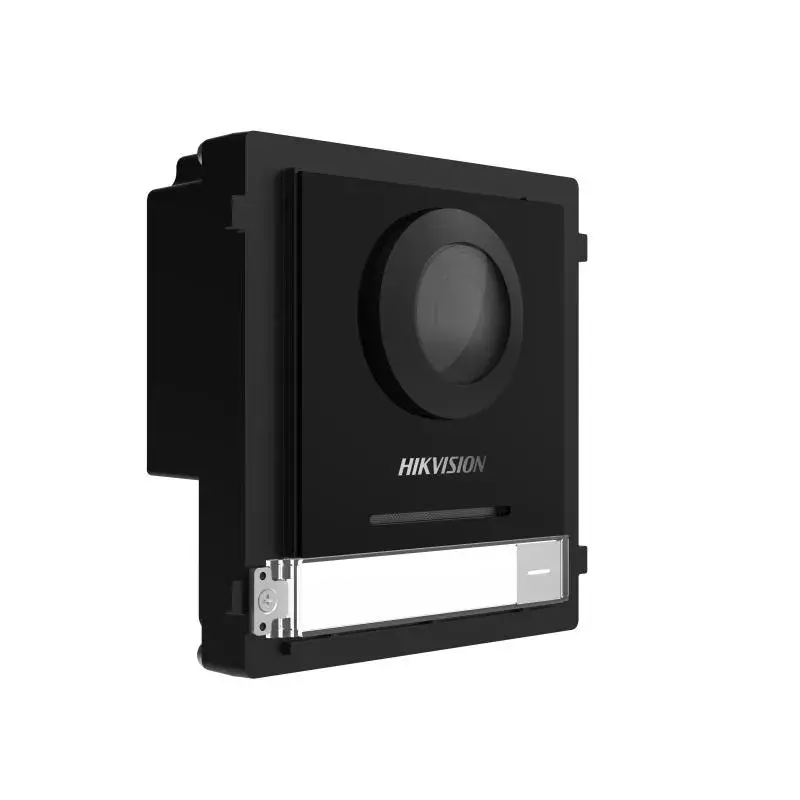

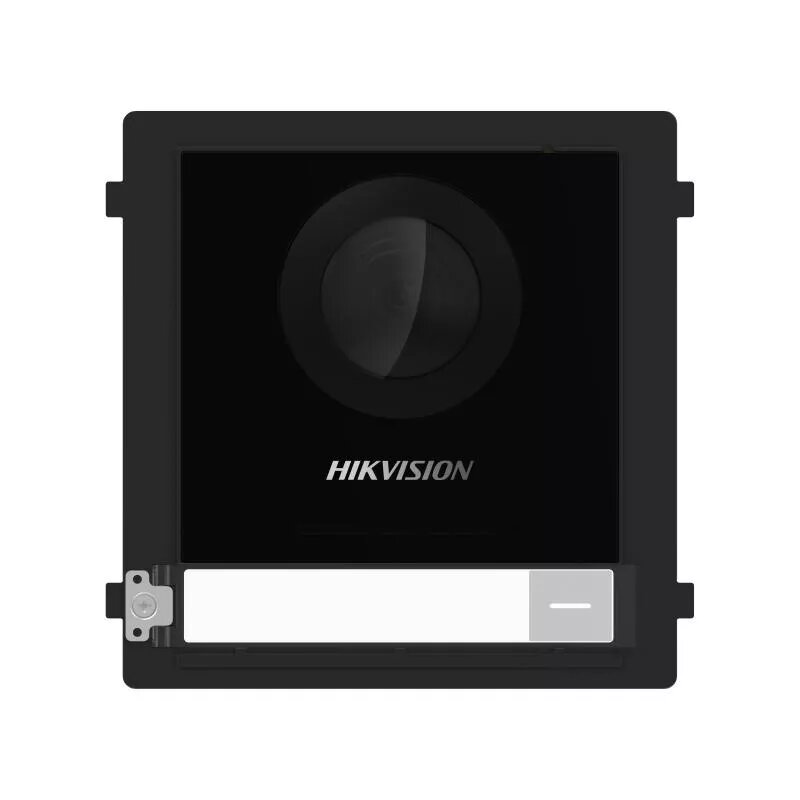

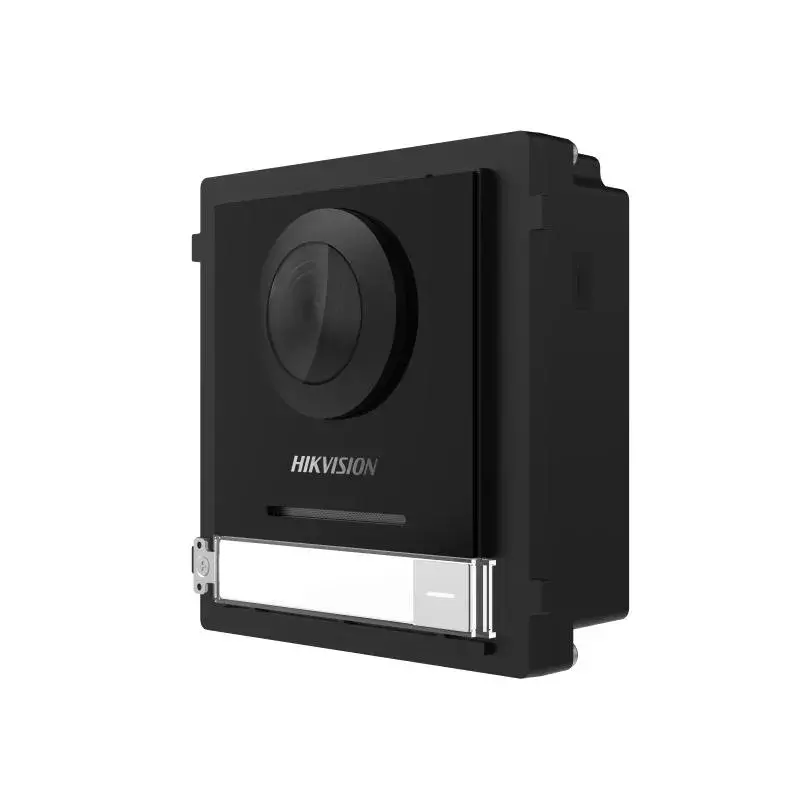

Videodeurintercom Hikvision DS-KD8003Y-IME2

The Hikvision DS-KD8003Y-IME2 is a two-wire video intercom station in a compact black housing designed for easy retrofit of existing door entry systems. It features a 2 MP camera with a 146° horizontal and 82° vertical field of view, IR night vision up to 3 m and an IP65 rating for reliable outdoor operation. The unit supports multiple OSD languages and connects to indoor stations and a distributor using only two wires (power and audio/video), reducing installation time and cost.

Advantages

The two-wire design enables fast and cost-effective upgrades by reusing existing cabling while maintaining high video and audio quality through Power Line Communication (PLC) and an advanced camera module. Modular door station options allow customization with modules such as card readers, name tags, and keypads. Weather-resistant IP65 construction and multi-language OSD increase suitability for diverse outdoor residential and small commercial installations. Integration with CCTV systems and mobile app control extends remote monitoring and access management capabilities.

Suitable for

• Retrofit upgrades of old intercom systems
• Residential entrance doors and small apartment buildings
• Small commercial premises requiring outdoor access control
• Installations needing weather-resistant outdoor stations

Key specifications

• Model: Hikvision DS-KD8003Y-IME2
• Camera resolution: 2 MP
• Field of view: 146° horizontal, 82° vertical
• Night vision: IR LEDs up to 3 m
• Ingress protection: IP65
• Connection: two-wire (power + audio/video) via distributor
• Dimensions: 100 mm (W) × 42 mm (D) × 98 mm (H)
• OSD: multi-language support

How to use

Mount the outdoor station at the entrance following the manufacturer’s mounting instructions and connect it to the distributor using the existing two-core cable for power and audio/video transmission. Configure the outdoor unit via the installer interface to set OSD language and camera orientation as needed. Combine the door station with desired modular accessories (card reader, keypad, name tag) before finalizing the mounting. Integrate with indoor stations, CCTV systems, and mobile app services according to the system wiring and network setup procedures.

Recommendations

For best video performance and reliable night operation, keep the camera lens clean and ensure IR LEDs are not obstructed. Use the two-wire distributor supplied by the system manufacturer to maintain PLC audio/video quality and follow IP65 guidelines to protect connections from direct water exposure.
