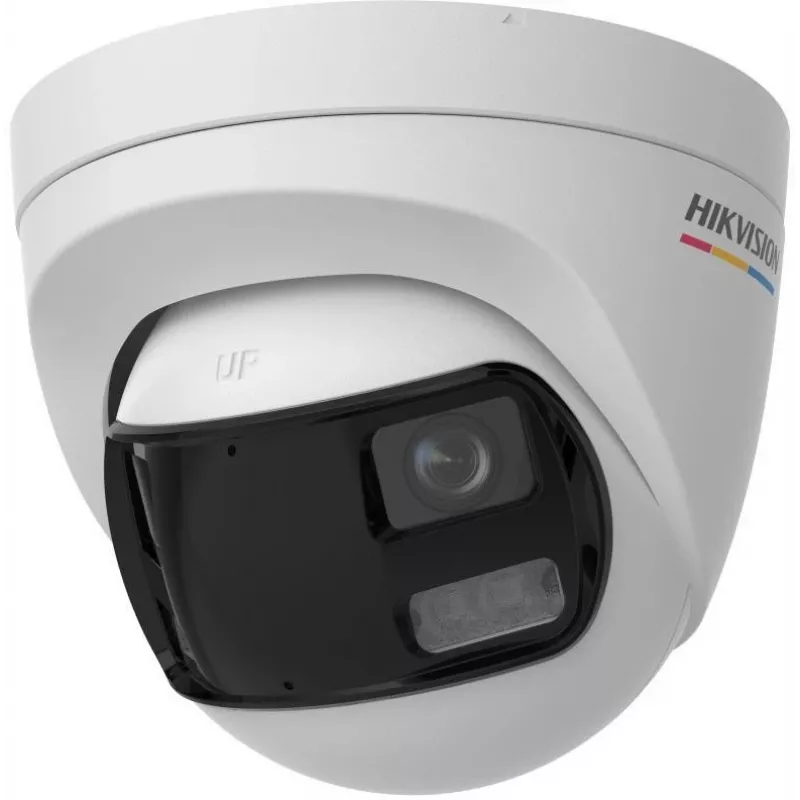

Hikvision DS-2CE72KF3TP-DLS(180°) 3K turret CCTV-camera met 2,8 mm lens, 100° gezichtsveld, wit licht, IP67, 12 VDC

Securing your property at night while keeping full-colour details is a challenge for many conventional CCTV cameras. The Hikvision DS-2CE72KF3TP-DLS(180°) is engineered to solve that problem with 24/7 colour imaging and a built-in white light, delivering vivid, detailed footage even in complete darkness.

Who is it for

Ideal for residential gardens, driveways, commercial perimeters, parking lots and farm sites where both intruder deterrence and clear identification are essential. Its robust construction and high IP rating also make it suitable for semi-outdoor and outdoor installations in demanding weather conditions.

Main features

• 3K CMOS sensor with 3072 x 1728 resolution for sharp images
• 4-in-1 video output (TVI/AHD/CVI/CVBS) for compatibility with most DVRs
• 2.8 mm fixed lens providing a wide 100° horizontal field of view
• Built-in white light extends visibility up to 20 m and enables colour night vision
• Digital WDR (DWDR), BLC, HLC and motion detection for enhanced image optimisation
• IP67-rated metal housing protects against rain, dust and extreme temperatures
• Low power consumption of 3.5 W at 12 VDC with wide voltage tolerance

Specifications

• Image Sensor: 3K CMOS
• Max Resolution: 3072 x 1728
• Lens: 2.8 mm fixed focal
• Field of View: 100° (H), 52° (V), 120° (D)
• Min Illumination: 0.001 Lux @ F1.0 (AGC ON), 0 Lux with white light
• White Light Range: up to 20 m
• Video Output: 4-in-1 (TVI/AHD/CVI/CVBS)
• Frame Rate: 3K@20fps, 4MP@25/30fps, 1080P@25/30fps
• WDR: Digital WDR (DWDR)
• Day/Night: 24/7 colour imaging
• Ingress Protection: IP67
• Power: 12 VDC ± 25%, max 3.5 W
• Operating Temperature: -40 °C to 60 °C
• Housing Material: Metal
• Camera Type: Turret
• Smart Features: Motion Detection, Privacy Mask, BLC, HLC, Global, HLS

Tips

Mount the camera at a height of 2.5–3 m and angle it slightly downward for optimal coverage. Ensure the power supply is rated at 12 VDC with sufficient current (at least 0.5 A) to avoid voltage drops over long cable runs. Use a compatible 4-in-1 or TVI DVR to take full advantage of the 3K resolution.
