Videosplitter ROLINE 14.01.3556 HDMI 2x HDMI 3840x2160 60Hz

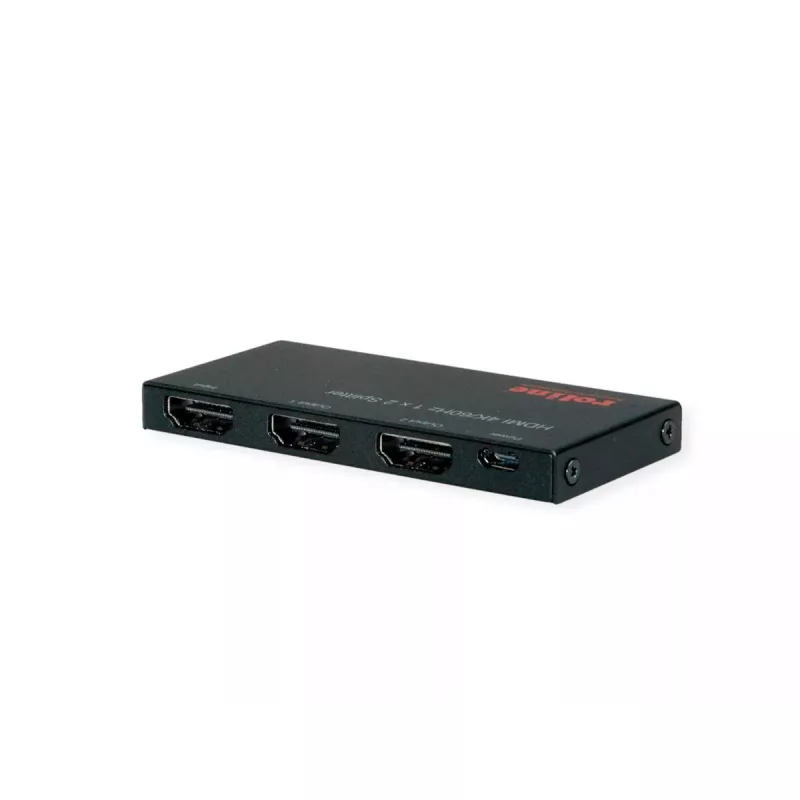

The ROLINE 14.01.3556 HDMI video splitter enables simultaneous HDMI output to two displays while preserving high-resolution video up to 3840 x 2160 at 60 Hz. Designed as a compact black unit, it provides three HDMI ports (one input, two outputs) in a small housing measuring 83 mm × 40 mm × 9 mm and weighing approximately 57 g. The device is suitable for environments where reliable duplication of a single HDMI source to multiple displays is required, such as home theater setups or business presentations.

Advantages

The splitter supports UHD 4K resolution at 60 Hz, ensuring sharp image quality and smooth motion for compatible sources and displays. Its compact form factor and lightweight construction make it simple to place near media players, set-top boxes, or laptops without requiring extra shelf space. The three HDMI ports provide a straightforward connection layout for one source and two outputs, and the black finish integrates discreetly into existing AV installations.

Suitable for

• Home theater systems where the same HDMI source must be shown on multiple TVs or projectors
• Conference rooms and meeting spaces for mirroring a laptop or media player to two screens
• Retail displays and trade show booths requiring identical video across two monitors
• Classrooms and training rooms for simultaneous display to instructor and student screens

Key specifications

• Supported maximum resolution: 3840 x 2160 pixels at 60 Hz
• Video port type: HDMI
• Number of HDMI ports: 3 (1 input, 2 outputs)
• Device colour: Black
• Dimensions (W × D × H): 83 mm × 40 mm × 9 mm
• Weight: approx. 0.0573 kg

How to use

Connect the HDMI source (for example a Blu-ray player, streaming box, or laptop) to the input HDMI port on the splitter. Use standard HDMI cables to connect the two output ports to the target displays or projectors. Power the source device and the displays as required; the splitter does not require complex configuration and will mirror the input signal to both outputs automatically. Verify that connected displays support 3840 x 2160 at 60 Hz if that resolution and refresh rate are needed.

Recommendations

For stable 4K@60Hz performance, use high-quality HDMI cables rated for the required bandwidth and keep cable lengths as short as practical. If one connected display does not support the source resolution, set the source to a compatible resolution to ensure all displays render correctly. Place the splitter near the source or use cable management to avoid strain on connectors.
