Videoswitch HDMI DeLOCK 18685

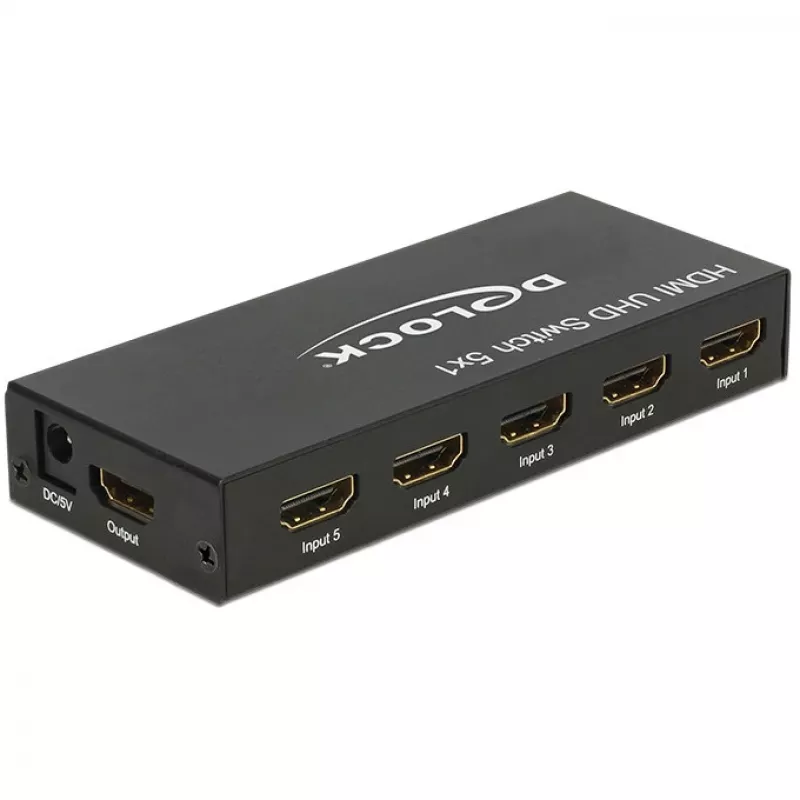

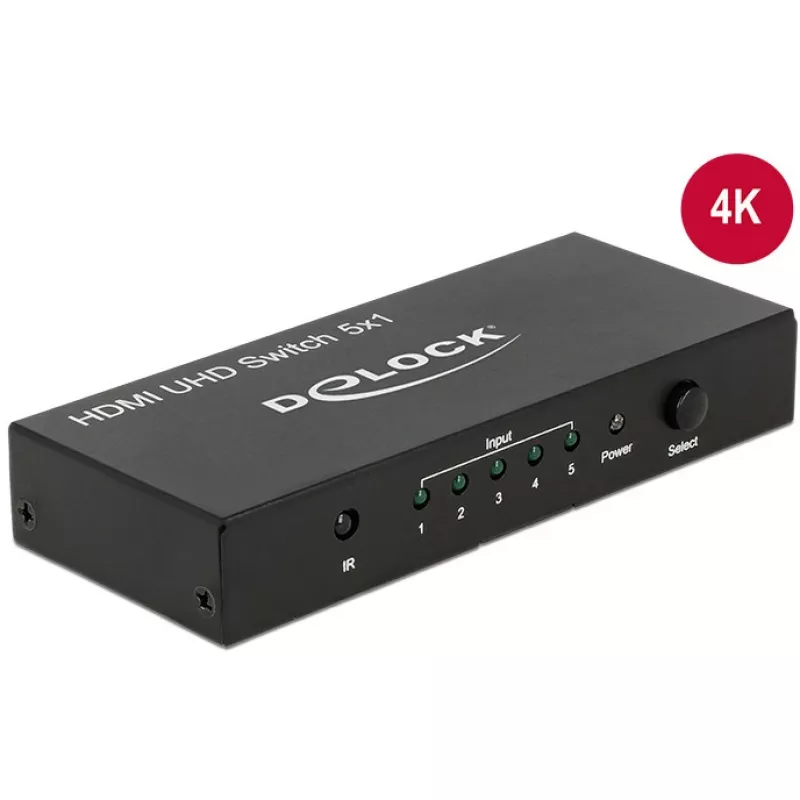

The DeLOCK 18685 HDMI video switch lets you connect up to five HDMI source devices to a single HDMI monitor, TV or projector. The compact metal housing (123 x 51 x 20 mm) supports HDMI bandwidth up to 18 Gbit/s and is powered via an external AC adapter (100–240 V). A USB cable is included for convenient connectivity. Switching between sources is done either with the button on the unit or using the supplied remote control.

Advantages

Durable metal construction in a compact form factor, support for high-bandwidth HDMI signals up to 18 Gbit/s, and the ability to manage five HDMI inputs with a single output. The unit includes a USB cable and accepts a wide-range AC adapter input (100–240 V), enabling flexible installation and reliable operation.

Suitable for

• Home entertainment setups with multiple HDMI players
• Small conference rooms and meeting spaces with several HDMI sources
• Classrooms and training rooms requiring quick source switching
• Presentations with a single display and multiple input devices

Key specifications

• Model: DeLOCK 18685
• Video port type: HDMI
• Number of inputs: up to 5 HDMI sources
• Output: 1 HDMI
• Max bandwidth: 18 Gbit/s
• Housing: metal
• Dimensions: 123 x 51 x 20 mm
• Power input: AC adapter 100–240 V
• Colour: Black

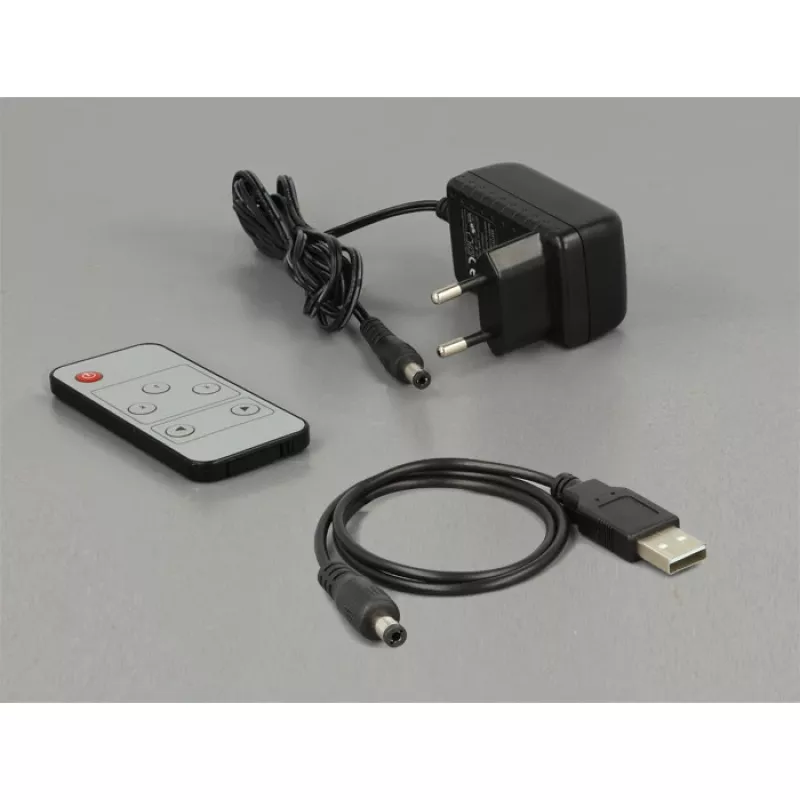

• Included accessories: USB cable, remote control

How to use

Connect up to five HDMI source devices to the switch’s HDMI input ports and connect the switch output to your HDMI monitor, TV or projector. Attach the AC adapter to provide power and, if required, connect the supplied USB cable for additional connectivity. Use the front-panel button or the remote control to select the active HDMI source. Ensure cables are firmly seated and the display is set to the correct HDMI input.

Recommendations

For best performance, use high-quality HDMI cables rated for the required bandwidth and avoid very long cable runs. Verify that source devices and the display support the resolution and refresh rate you intend to use to ensure signal compatibility.
