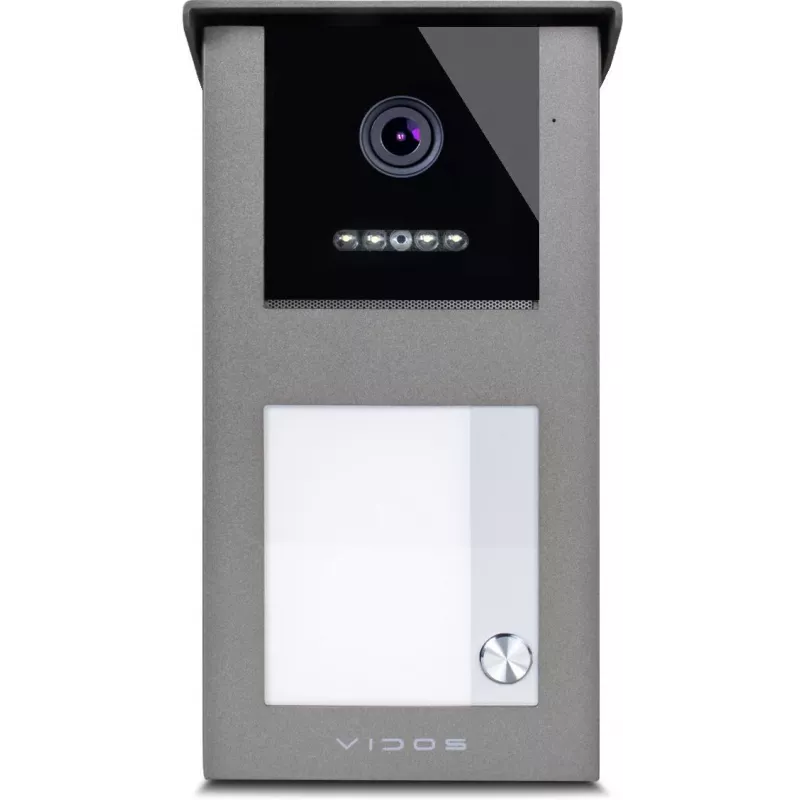

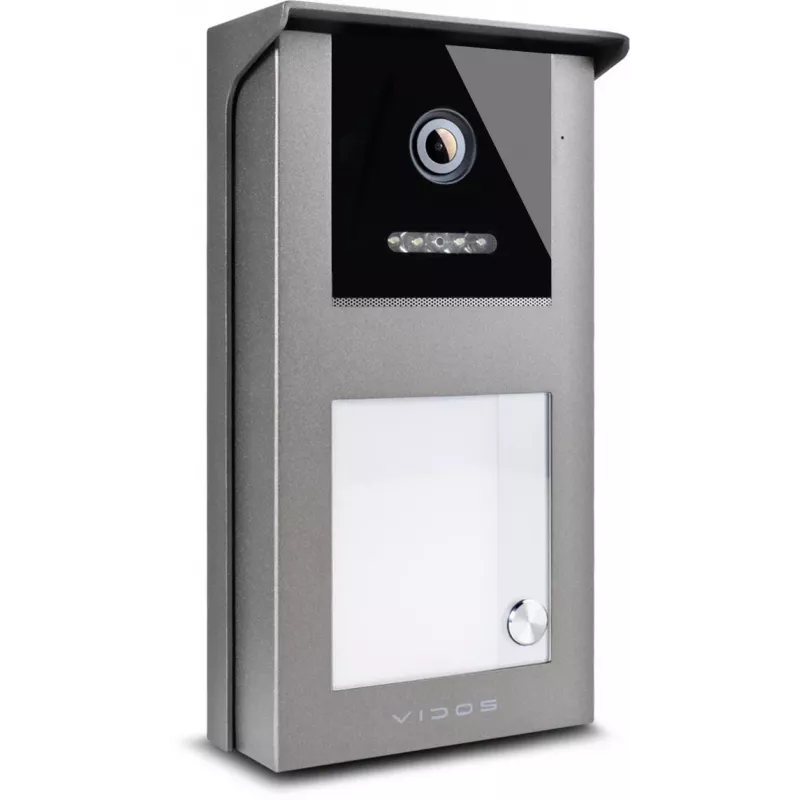

VIDOS IPX S101-1 buitenpaneel met RFID-lezer, 2MP-camera, PoE, zwart

The VIDOS IPX S101-1 is a robust outdoor access control panel designed for secure entry management. Featuring a 2.0 MP Full HD camera, two-way audio, and an integrated RFID reader, it provides reliable video surveillance and communication. Built with an aluminum alloy housing and rated IP65/IK07, it withstands harsh weather conditions. Power over Ethernet (PoE) simplifies installation, making it ideal for residential and commercial buildings.

Advantages

High-definition 1080p video ensures clear identification. The built-in RFID reader supports 125kHz EM cards for keyless entry. Two-way full-duplex audio enables natural conversation. PoE support reduces cabling costs. Durable construction guarantees long-term performance.

Suitable for

• Apartment buildings and gated communities
• Office entrances and restricted areas
• Industrial facilities requiring secure access

Key specifications

• Camera: 2.0 MP, Full HD 1080p, H.264 compression
• Viewing angle: 130° horizontal, 70° vertical
• Night vision: IR LEDs
• Connectivity: Wired Ethernet (RJ-45)
• Power: PoE (IEEE 802.3af) or DC 12V
• RFID reader: 125kHz EM
• Relay output: 1x NO/NC for door/gate control
• Audio: Two-way, full duplex
• Material: Aluminum alloy
• Mounting: Surface mount
• IP rating: IP65
• IK rating: IK07
• Operating temperature: -30°C to +50°C
• Compatibility: VIDOS IPX Series Monitors

Recommendations

For optimal performance, pair with a VIDOS IPX Series indoor monitor. Ensure proper network setup for PoE functionality. Suitable for outdoor use in various climates.
