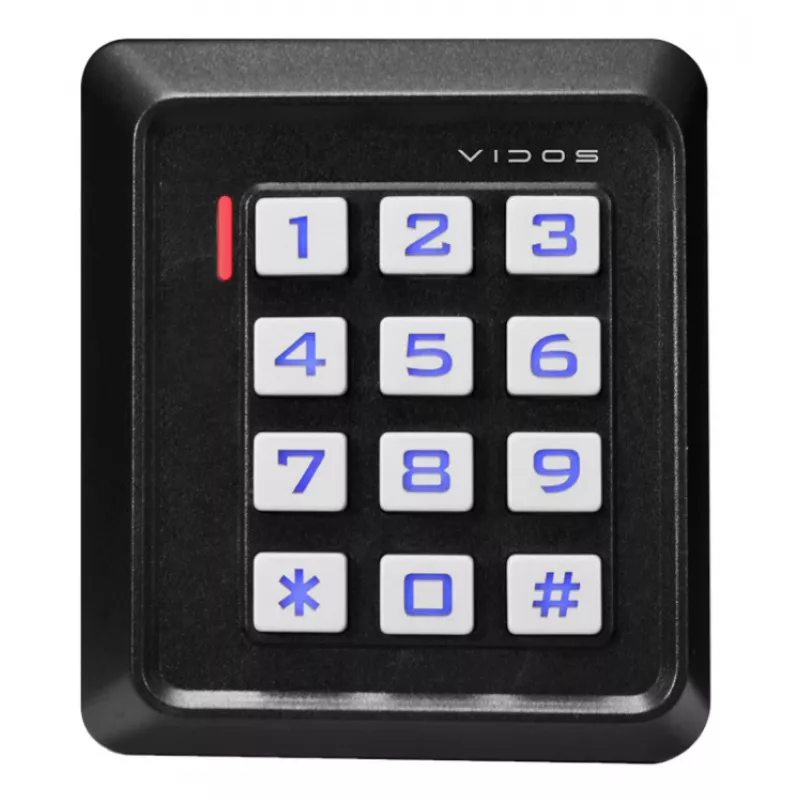

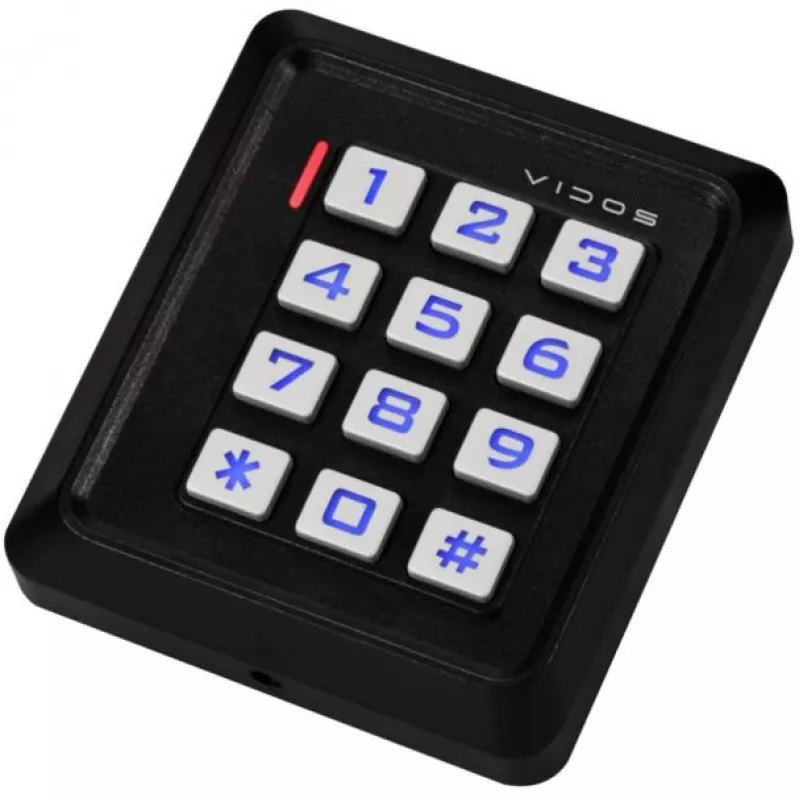

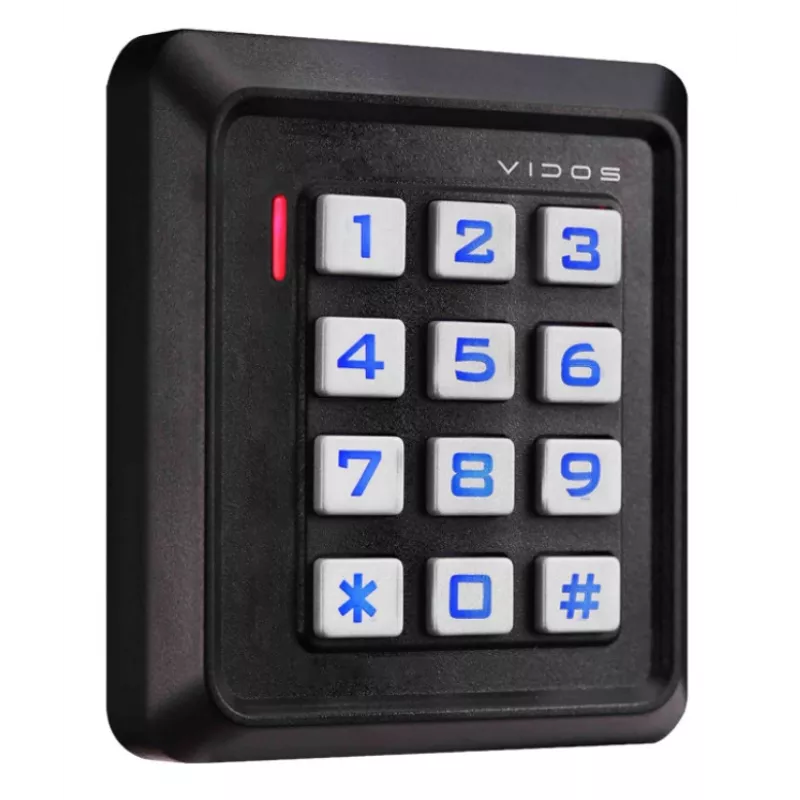

VIDOS ZS40B codeslot met proximity-lezer

The VIDOS ZS40B is a combination lock with a built-in proximity reader, designed for indoor access control. It supports opening via RFID card, key fob, sticker, or a four-digit code, and features a backlit keypad with an operation mode LED.

Key features

• Backlit keypad with operation mode LED
• Control of electric strike via card, key fob, RFID sticker, or four-digit code
• Adjustable unlock time: 1–99 seconds
• Built-in internal alarm system to protect against unauthorized use
• Door open sensor function (requires installation of a contact sensor)
• Supports reversing strikes and electromagnetic locks (NO/NC relay)
• Anti-sabotage sensor
• Option to connect an additional release button

Specifications

• Brand: Vidos
• MPN: ZS40B
• Housing material: ABS plastic
• Proximity card reader: built-in
• Reader operating standard: UNIQUE 125kHz
• Zone support: 1
• Memory capacity: 2000 user cards/codes
• Relay contact rating NO/NC: 1A/12V (1 relay output)
• RFID reader range: approx. 5 cm (depending on transponder used)
• Power supply: 12V DC
• Current consumption in operating mode: 60mA
• Current consumption in standby mode: 25mA
• Operating temperature: -20°C to +50°C
• Ingress protection: IP40
• Dimensions: 82 x 92 x 21 mm
• Housing colour: black
