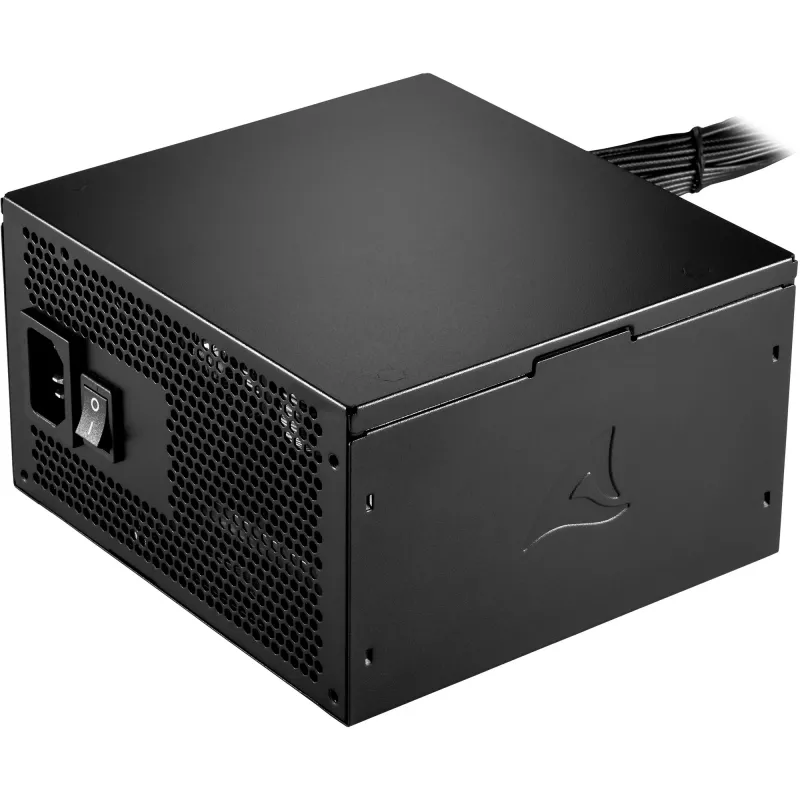

Voedingseenheid Sharkoon Rebel P10 750 W

The Sharkoon Rebel P10 750 W is an ATX power supply unit designed to provide stable power for desktop PC builds. Rated at 750 W total output, it supplies energy through a 24-pin ATX motherboard connector and a set of peripheral cables. The unit features active cooling with a 120 mm fan and uses sleeve bearing technology to balance noise, longevity and cost. It accepts a wide AC input voltage range from 100 to 240 V and comes in a black finish suitable for most chassis interiors.

Advantages

The PSU delivers a continuous 750 W output suitable for mainstream and performance-oriented systems without requiring modular cabling. A standard 24-pin ATX connector ensures straightforward compatibility with ATX motherboards, while the included cable lengths — a 55 cm motherboard cable and a 480 mm Molex cable — simplify internal routing. The 120 mm fan with sleeve bearing provides active cooling to maintain stable operating temperatures. Compact dimensions and a moderate weight of 1.66 kg make the unit easy to install in typical ATX cases.

Suitable for

• Mainstream desktop PCs and workstations with single GPU configurations
• System builds where fixed-cable PSUs are acceptable for cost or simplicity reasons
• Users needing a reliable 750 W supply for CPU and peripheral power delivery

Key specifications

• Total power: 750 W
• Motherboard connector: 24-pin ATX

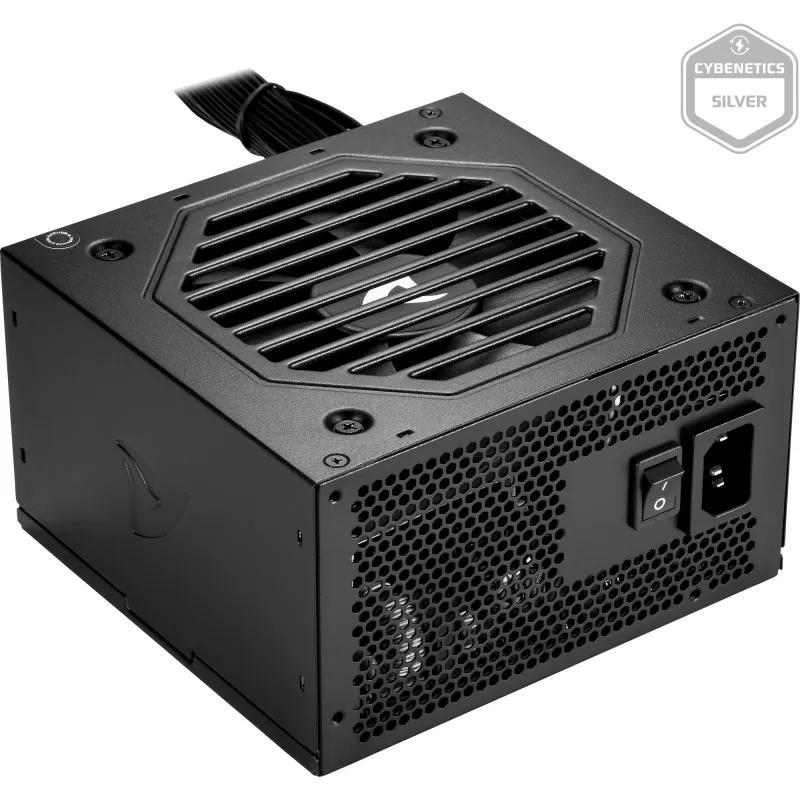

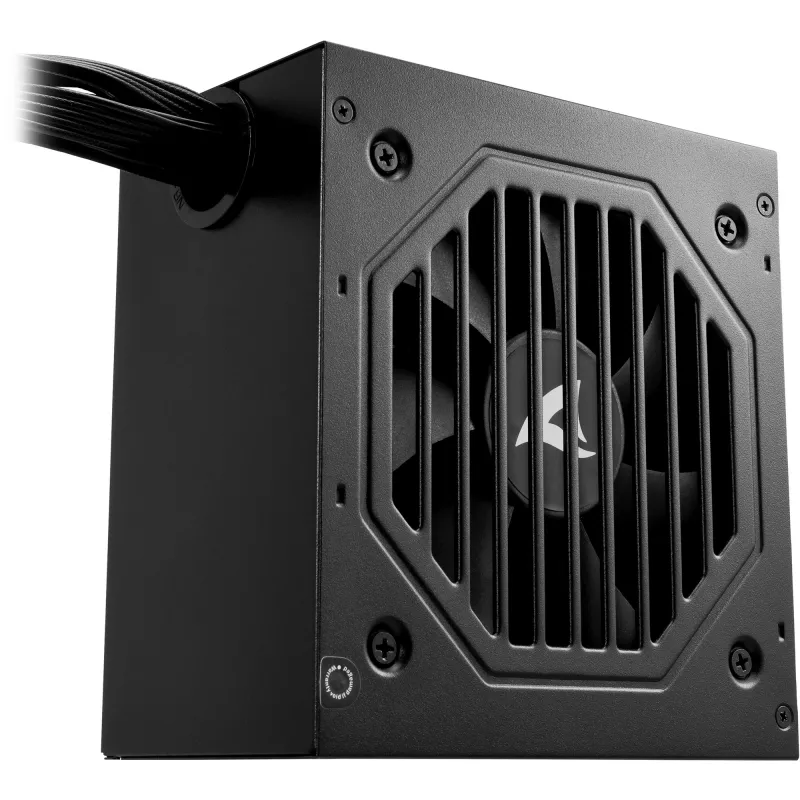

• Cooling: 120 mm fan with sleeve bearing
• AC input voltage range: 100–240 V

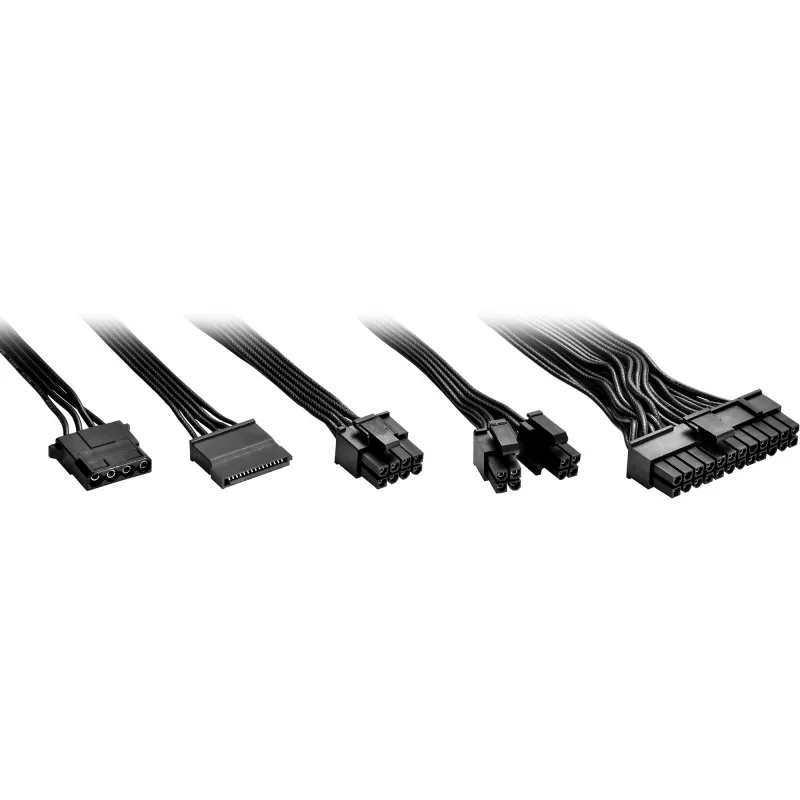

• Cable details: 55 cm motherboard cable, 480 mm Molex cable
• Product colour: Black
• Weight: 1.66 kg
• Form factor: ATX

How to use

Install the power supply into a compatible ATX case following standard safety precautions: disconnect mains power, ground yourself to prevent static discharge, and secure the PSU with mounting screws. Connect the 24-pin ATX cable to the motherboard main power socket, then attach peripheral cables to drives and other components as required. Ensure the AC supply matches the 100–240 V input range and use a properly rated mains cable. After connections are verified, power on the system and monitor voltages and fan operation during initial boot.

Recommendations

The unit is intended for systems that do not demand modular cabling or extreme efficiency certifications. For improved airflow, route the 55 cm motherboard cable close to case edges and avoid obstructing the 120 mm fan intake. Regularly check dust buildup on the fan and vents and perform routine cleaning to preserve cooling performance and service life.
