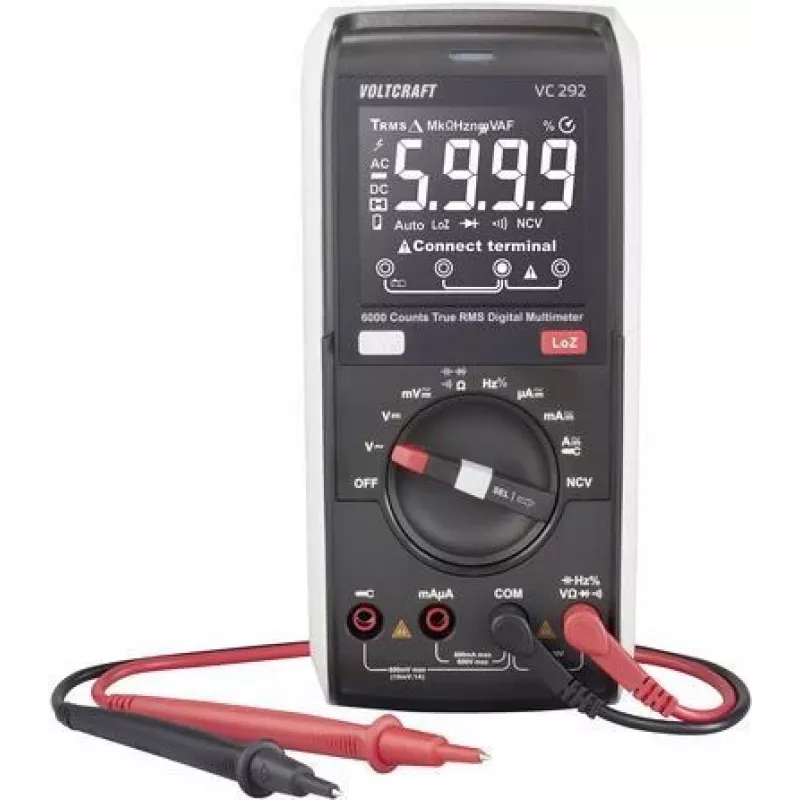

VOLTCRAFT VC292 True RMS digitale multimeter CAT III 600 V 6000 counts VC-12884315

Electrical troubleshooting demands precision and safety, but many multimeters fall short on accuracy or lack essential features for demanding tasks. The VOLTCRAFT VC292 bridges this gap, offering True RMS measurements and a 6000-count display for reliable readings on non-sinusoidal signals. With CAT III 600 V safety rating, it is suitable for measurements on building installations, distribution boards, and industrial equipment.

Who is it for

This multimeter is ideal for electricians, electronics technicians, HVAC professionals, and advanced DIY enthusiasts who need a dependable tool for diagnosing AC/DC circuits, testing components, and verifying continuity. Its auto-ranging function and comprehensive measurement capabilities make it accessible for both field service and bench work.

Main features

• True RMS measurement for accurate AC voltage and current on distorted waveforms
• 6000-count LCD with backlight for clear readings in low-light conditions
• Auto-ranging with manual override for fast and precise measurements
• Non-contact voltage (NCV) detection for quick safety checks
• Data hold, min/max, and relative functions to capture and compare readings
• Built-in flashlight for working in dark panels or cabinets
• Temperature measurement with K-type thermocouple (-40 °C to +1000 °C)
• Diode and continuity tests with audible buzzer

Specifications

• DC voltage: 0.1 mV – 600 V (±0.5% + 3 digits, input impedance 10 MΩ)
• AC voltage: 1 mV – 600 V (True RMS)
• DC current: 0.1 µA – 10 A
• AC current: 0.1 µA – 10 A (True RMS)
• Resistance: 0.1 Ω – 60 MΩ
• Capacitance: 1 nF – 60 mF
• Frequency: 1 Hz – 10 MHz
• Temperature: -40 °C to +1000 °C
• Safety rating: CAT III 600 V
• Power supply: 1x 9V block battery

Tips

Always verify the meter's operation on a known voltage source before and after testing a circuit. For current measurements, ensure the test leads are in the correct jacks and the circuit is de-energized when changing ranges. Use the NCV function only as a preliminary check; always confirm with direct contact measurement.
