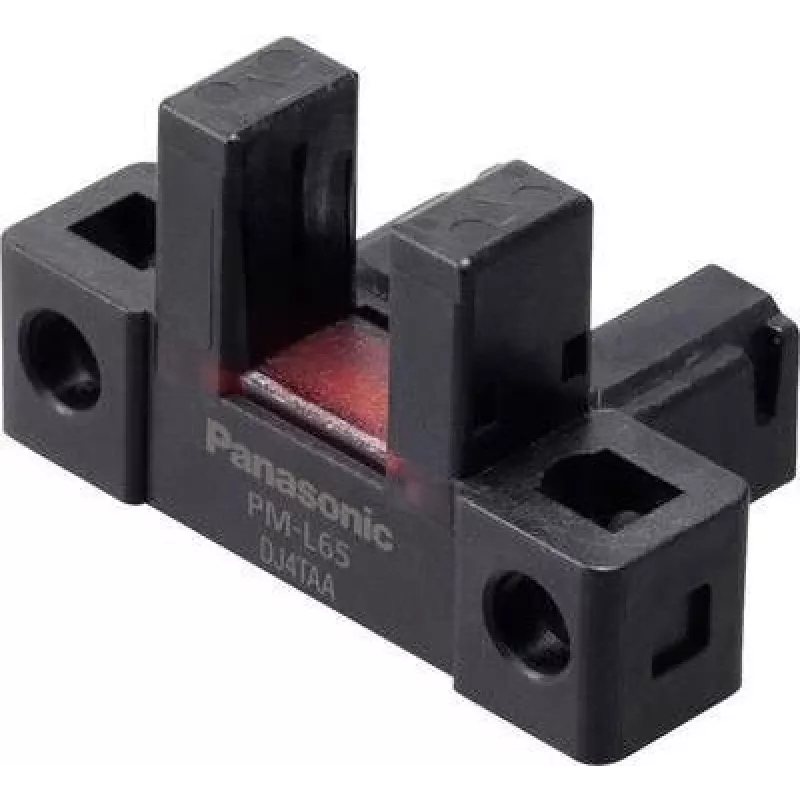

Vorklichtsluis Panasonic PM-L65 L-type, licht-/donkerschakelend, 5–24 VDC

The Panasonic PM-L65 L-type fork photoelectric sensor is a through-beam sensing device designed for reliable detection of small parts and labels in industrial automation. It supports both light-on (light operate) and dark-on (dark operate) switching configurations and accepts a supply voltage range of 5–24 V DC. Its fork design provides a compact sensing gap suited for presence and position sensing on conveyor lines, pick-and-place stations, and labelling equipment.

Advantages

The PM-L65 offers straightforward installation thanks to its L-type fork form factor and clear optical path. Dual switching modes allow flexibility for different contrast and reflection conditions, while the wide supply voltage range makes it compatible with common industrial DC power systems. The through-beam arrangement provides high immunity to ambient light and contamination compared with diffuse sensors, delivering consistent detection of thin or low-contrast targets.

Suitable for

• Presence and position detection of small mechanical parts on conveyor systems
• Label detection on webs or packaged goods
• Object counting and positioning in automated assembly lines
• Pick-and-place verification for small components

When it may not be suitable

The PM-L65 is optimized for objects that pass through the fork gap; it is not intended for long-range sensing or for detecting objects outside the fork’s aperture. Applications that require detection through thick or highly transparent materials, or that need programmable logic or advanced signal processing built into the sensor, may require a different sensor type or an external controller.

Key specifications

• Sensing method: through-beam (fork)
• Switching modes: light-on and dark-on selectable
• Supply voltage: 5–24 V DC
• Mounting style: L-type fork housing for slot detection
• Typical use: presence/position sensing, label detection, counting

How to use

Mount the PM-L65 so the target passes through the fork gap perpendicular to the optical axis. Select the required switching mode (light-on or dark-on) according to target contrast and wiring preferences. Connect the sensor to a suitable 5–24 V DC supply and wire the output to your controller, PLC, or relay input with attention to the specified polarity and common. Adjust sensor alignment to ensure the emitter and receiver are properly opposed across the sensing slot; no complex tuning is required beyond mechanical positioning in most installations.

What to consider before purchase

• Confirm the fork gap and physical dimensions match the size of objects to be detected
• Ensure the 5–24 V DC supply is available and has the appropriate wiring and protection
• Verify whether light-on or dark-on switching is preferred for the application
• Check environmental conditions (temperature, dust) to ensure sensor suitability

Recommendations

For reliable operation, install the sensor on a stable bracket to maintain alignment, keep the optical surfaces free of debris, and select the switching mode that best matches the target’s optical properties. Use proper cable routing and surge protection when integrating with industrial control equipment.
