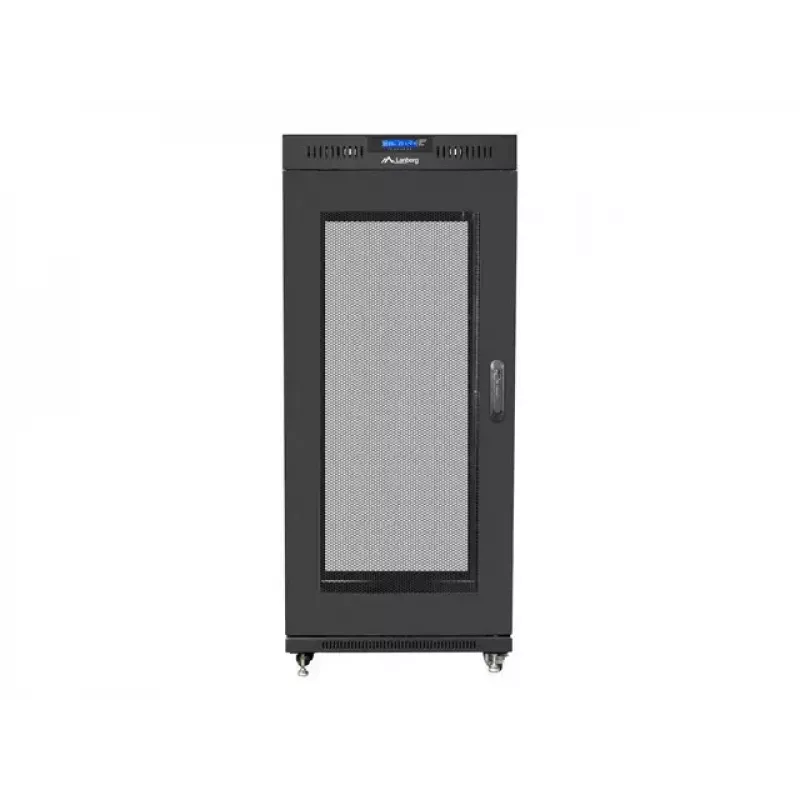

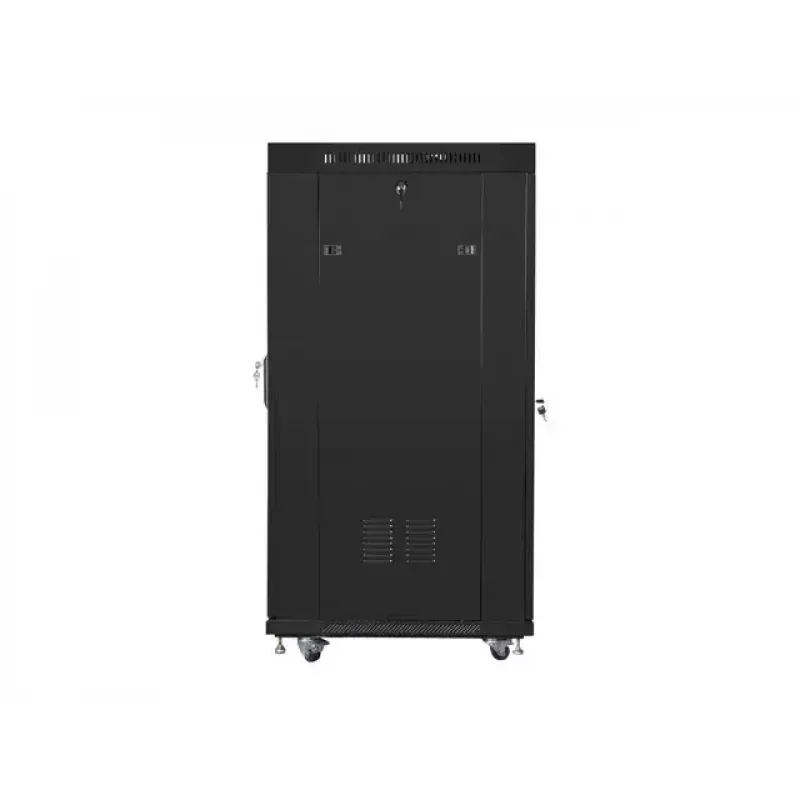

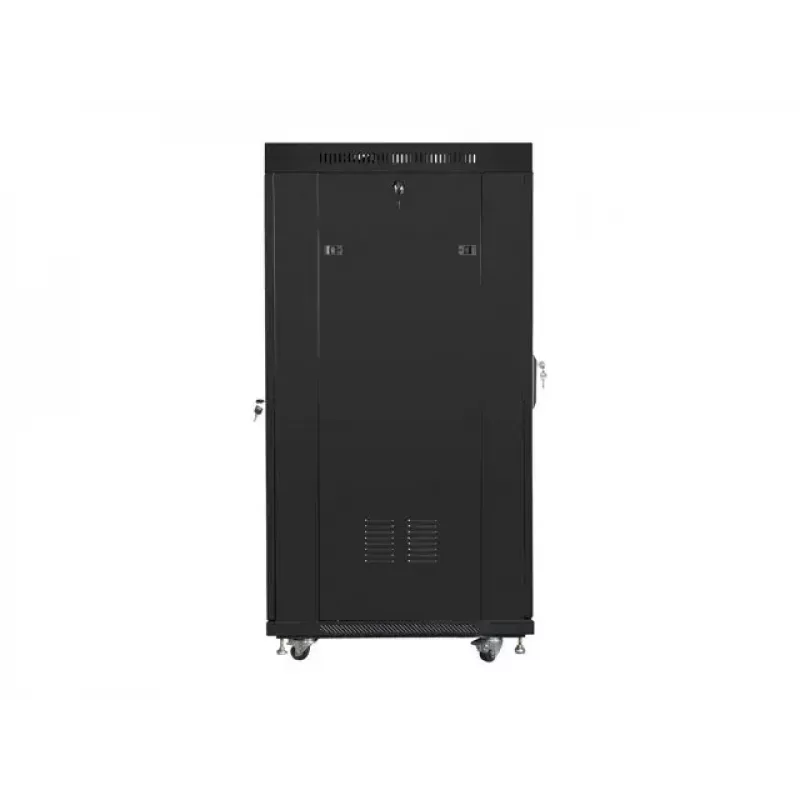

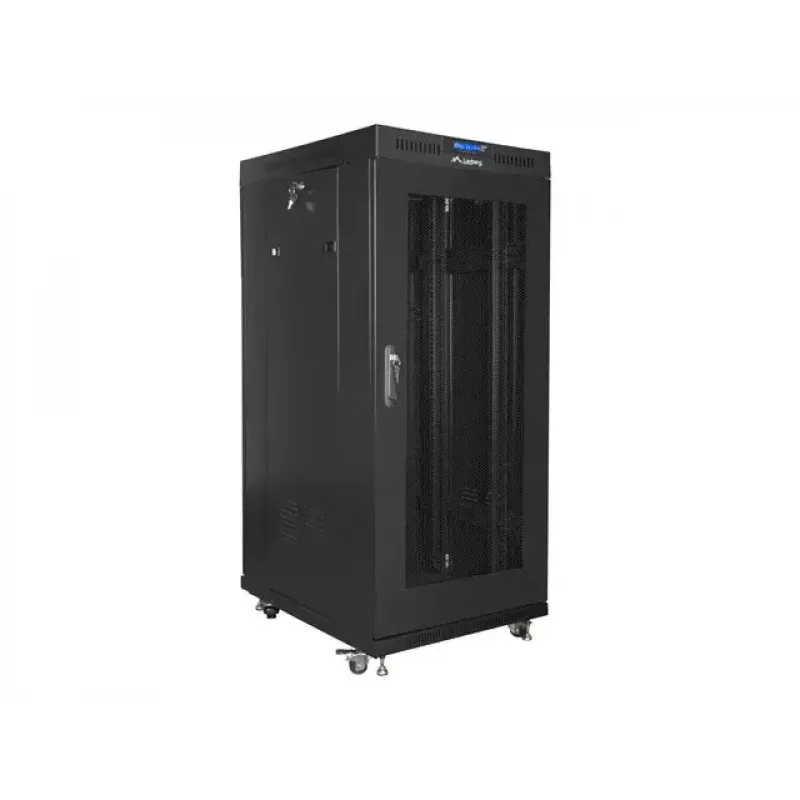

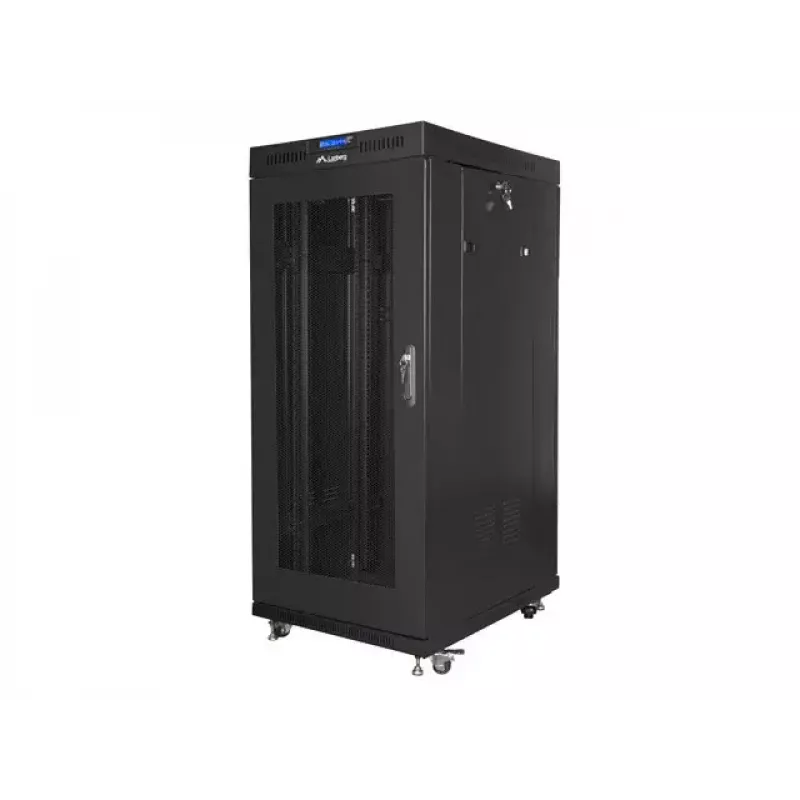

Vrijstaand rack Lanberg FF01-8015-23BL 15U 800kg zwart

Freestanding rack Lanberg FF01-8015-23BL is a 19" cabinet with 15U capacity and a maximum load of 800 kg, designed for housing network and server equipment. Constructed from high-grade cold-rolled steel with adjustable vertical mounting rails, this black cabinet includes a front perforated door with reversible hinge and lock, removable side panels with locks, and a rear perforated door with lock. The rack provides cable entry panels on the top and bottom and comes with M6 cage nuts and blank panels for cable management. An LCD display on the front shows basic operating information such as internal temperature, current time and fan status; the fan tray contains four 230V fans. The cabinet is supplied in four flat packs for self-assembly and is intended for indoor use (IP20).

Advantages

The Lanberg FF01-8015-23BL offers robust construction and a high 800 kg load capacity suitable for dense equipment installations. Adjustable vertical rails and included accessories (M6 cage nuts, blank entry panels) simplify mounting and cable routing. Perforated doors and multiple fans enable airflow monitoring and cooling, while the LCD display provides quick access to basic environmental and fan status information. Removable side panels and reversible front door increase accessibility during installation and maintenance.

Suitable for

• Network closets and small to medium server rooms
• Data centers with limited floor space needing 15U racks
• CCTV and IP surveillance installations
• Low-voltage systems: cable TV, alarm, fire protection, access control

Key specifications

• Brand: LANBERG
• Model: FF01-8015-23BL
• Rack size: 19" / 15U
• Maximum load: 800 kg
• Dimensions (H×W×D): 905 × 800 × 1000 mm
• Max mounting depth: 860 mm
• Weight: 110 kg
• IP rating: IP20 (indoor use)
• Material: cold-rolled steel
• Doors and panels: front perforated door (reversible) with lock, rear perforated door with lock, removable side panels with locks
• Cooling: fan tray with 4 × 230V fans
• Extras: front LCD display (temperature, time, fan status), M6 cage nuts, blank entry panels
• Assembly: supplied in four flat packs for self-assembly

How to use

Unpack the four flat packs and follow the included assembly instructions to build the cabinet frame. Install and adjust the vertical mounting rails to suit your equipment depth (up to 860 mm), fit the M6 cage nuts into the rails, and mount devices into the 15U space. Route cabling through the top or bottom blank entry panels and secure side panels and doors. Connect the fan tray to a suitable 230V supply and verify the LCD displays internal temperature and fan status before placing equipment under load.

Recommendations

Place the cabinet on a level indoor surface with adequate ventilation and ensure access to a 230V power source for fans. When installing heavy equipment, distribute weight evenly and secure devices to the rails. Regularly monitor the LCD for temperature and fan status and maintain clearance around perforated doors to preserve airflow.
