Vrijstaand rack Lanberg FF01-8822-12BL 22U Zwart 800 kg

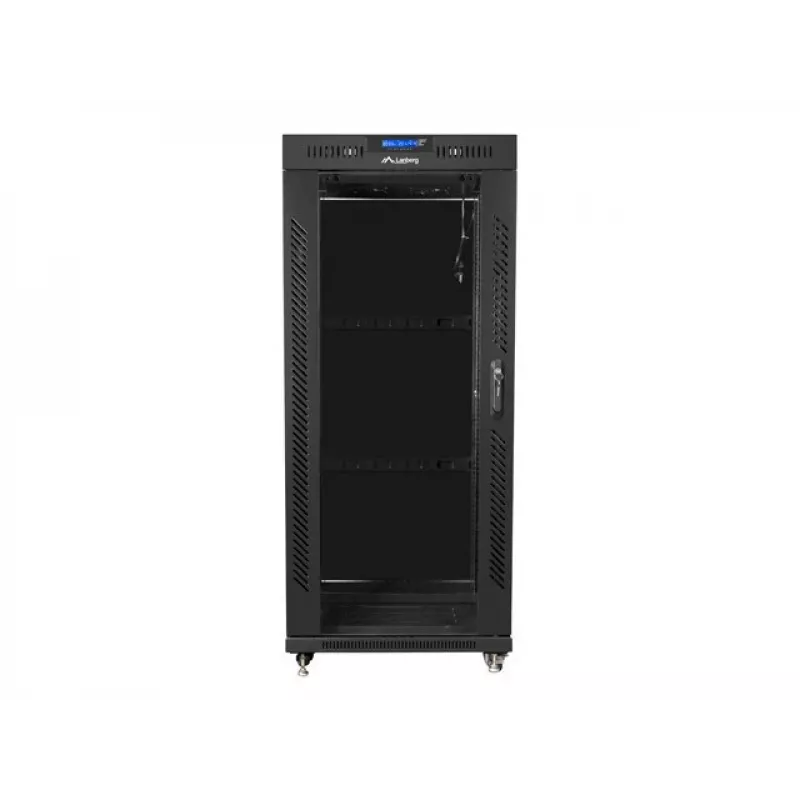

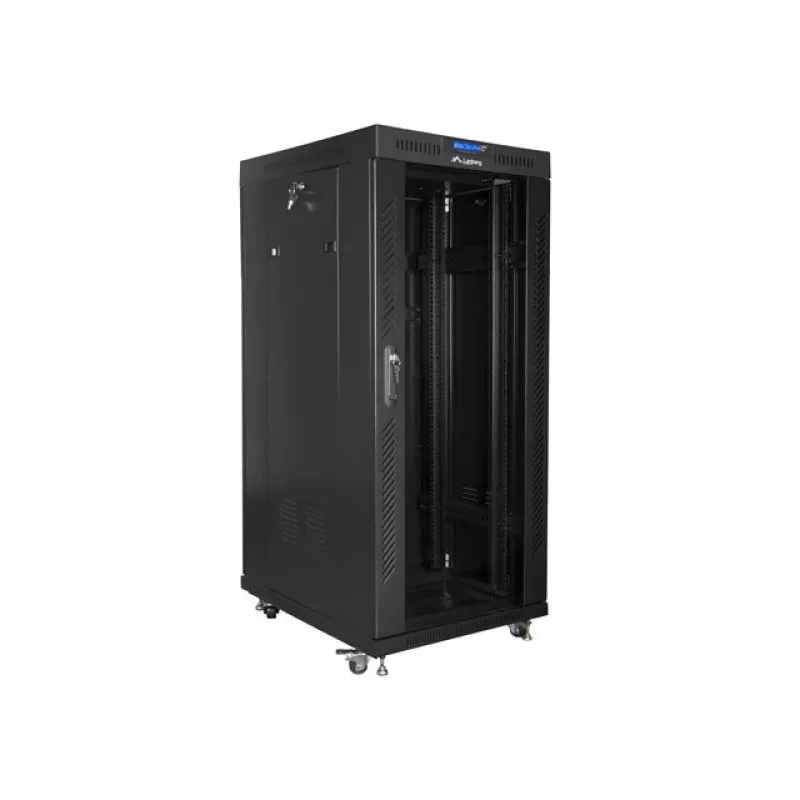

Free standing Lanberg cabinet FF01-8822-12BL is a 19" floor cabinet designed for mounting network and server equipment with a maximum load capacity of 800 kg. Made of high-grade cold-rolled steel, the cabinet provides adjustable vertical mounting rails, removable side panels with locks, a rear solid steel door with lock and a front tempered glass door that can be installed to open to the right or left. The cabinet includes an LCD display on the front showing internal temperature, current time and fan status, and it ships in three flat packs for easier transport and on-site assembly.

Advantages

The Lanberg FF01-8822-12BL offers a high load capacity and adjustable depth of vertical rails to accommodate various 19" devices. Its tempered glass front door and locked removable side panels provide controlled access and equipment visibility. Built-in LCD provides basic operational information at a glance, and the cabinet supports cable entry from top and bottom with blank entry panels included. The design and materials ensure durable construction suitable for server rooms, network closets and low-voltage systems.

Key specifications

• Form factor: 19" free standing floor cabinet
• Model: FF01-8822-12BL
• Maximum load capacity: 800 kg
• Material: cold rolled steel
• Front door: tempered glass, reversible (right/left) with lock

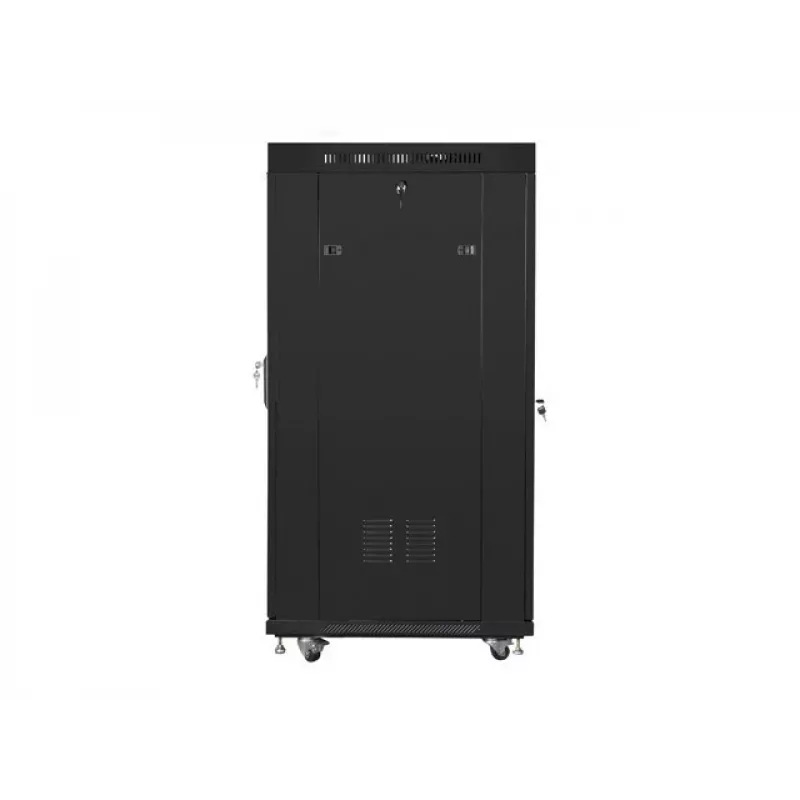

• Rear door: solid steel with lock
• Side panels: removable with locks
• Vertical rails: depth adjustable
• Cooling: fan tray with 4 fans (230 V)
• LCD display: shows internal temperature, time and fan status
• Cable entry: top and bottom with blank entry panels
• Accessories included: M6 cage nuts, additional rail installation accessories, blank panels
• Packaging: three flat packs for self-assembly

How to use

Unpack the three flat packs and assemble the cabinet following the supplied instructions. Install vertical mounting rails to the required depth, secure equipment using the provided M6 cage nuts and accessories, and choose the door orientation for the tempered glass front door. Route cabling through the top or bottom cable entry panels and secure blank panels after wiring. Connect the fan tray to a 230 V supply and monitor the cabinet status on the front LCD display.

Recommendations

Place the cabinet on a level, stable surface in a ventilated room and ensure proper earthing. Distribute equipment weight evenly on the rails to avoid overloading, keep ventilation openings clear, and perform regular checks of temperature and fan operation displayed on the LCD. For installations in sensitive environments, consider additional power protection and monitoring solutions.
