Vrijstaand rack Triton RMA-22-A66-CAX-N1 22U 800 kg grijs

The Triton RMA-22-A66-CAX-N1 is a freestanding data and telecommunications cabinet with 22U of usable rack space and a maximum load capacity of 800 kg. Constructed with a welded frame and 1.3 mm thick skeleton rails, the grey RMA cabinet is designed for indoor IP20 environments and supports a wide range of accessories, cable management and configurable rail layouts to suit common installations.

Advantages

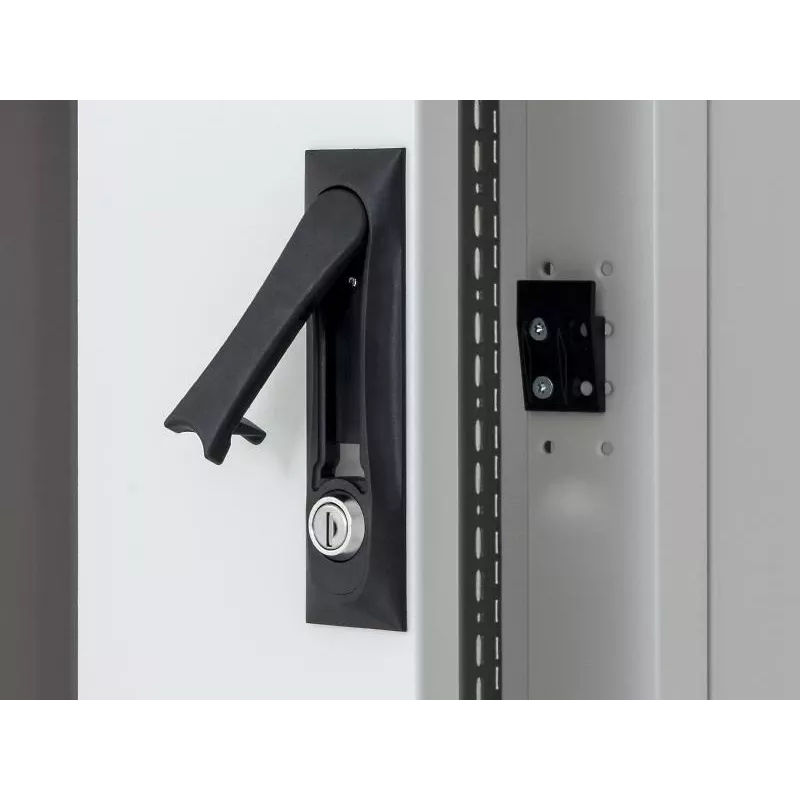

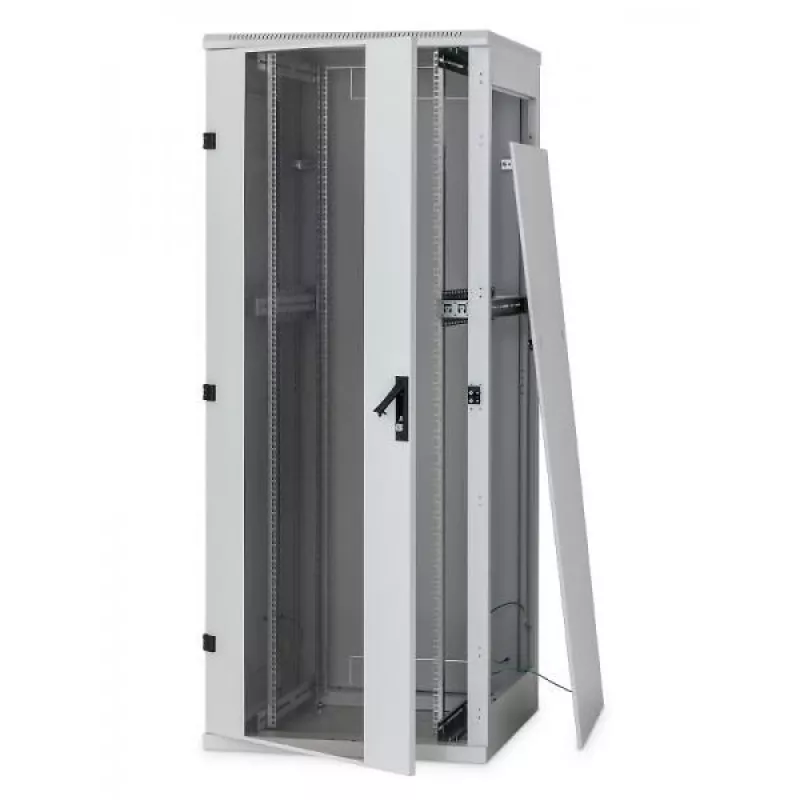

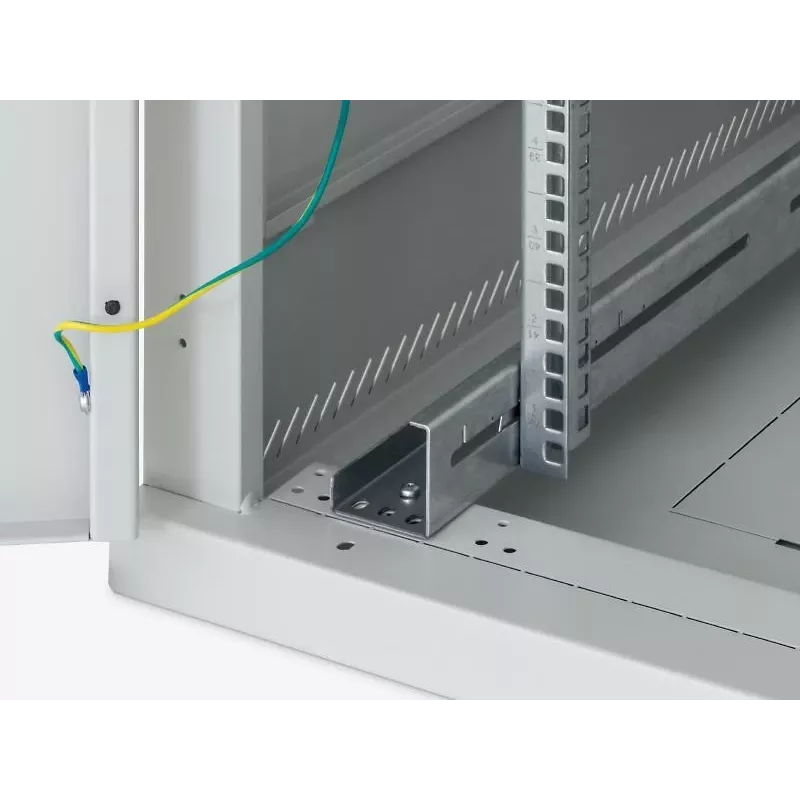

The cabinet has a rigid welded construction with widened 1.3 mm skeleton rails for improved durability. Doors can open nearly 180° and are removable or reversible for flexible installation. Vertical 19" rails are freely adjustable in depth and for cabinets deeper than 800 mm a middle pair of rails is included to support deeper equipment. Breakout-type blanking panels and brush strips allow sealed cable entry, while a perforated skeleton and optional fan door support active cooling. The model supports levelling feet as standard and optional castors, heavy-duty castors or a base for different placement needs.

Suitable for

• Data room and server installations with up to 22U of equipment
• Telecommunication equipment and network distribution
• Environments requiring structured cable management and sealed cable entry
• Indoor installations where IP20 protection is sufficient

Key specifications

• Model: Triton RMA-22-A66-CAX-N1
• Rack height: 22U
• Maximum load capacity: 800 kg
• Material: welded frame with 1.3 mm skeleton rails
• Protection rating: IP20 (indoor use)
• Weight: 44.4 kg
• Color: Grey
• Features: adjustable 19" vertical rails, removable/reversible doors, breakout blanking panels, perforated skeleton, support for fan units

How to use

Place the cabinet on its levelling feet or fit optional castors or a base according to the installation site. Adjust the vertical 19" rails to the required depth and mount equipment using standard 19" mounting holes. Route cables through the breakout blanking panels and seal openings with the supplied brush strips or protective fringe to reduce dust ingress. If active cooling is needed, install fan units using the designated fan door or the opening provided for external mounting and removal of fan units.

Recommendations

For optimal stability when mounting heavy equipment or using loads above 500 kg, install the horizontal cable management reinforcement in the skeleton and consider the swing frame option for 800 mm wide cabinets when a supported 19" equipment depth up to 330 mm is required.
