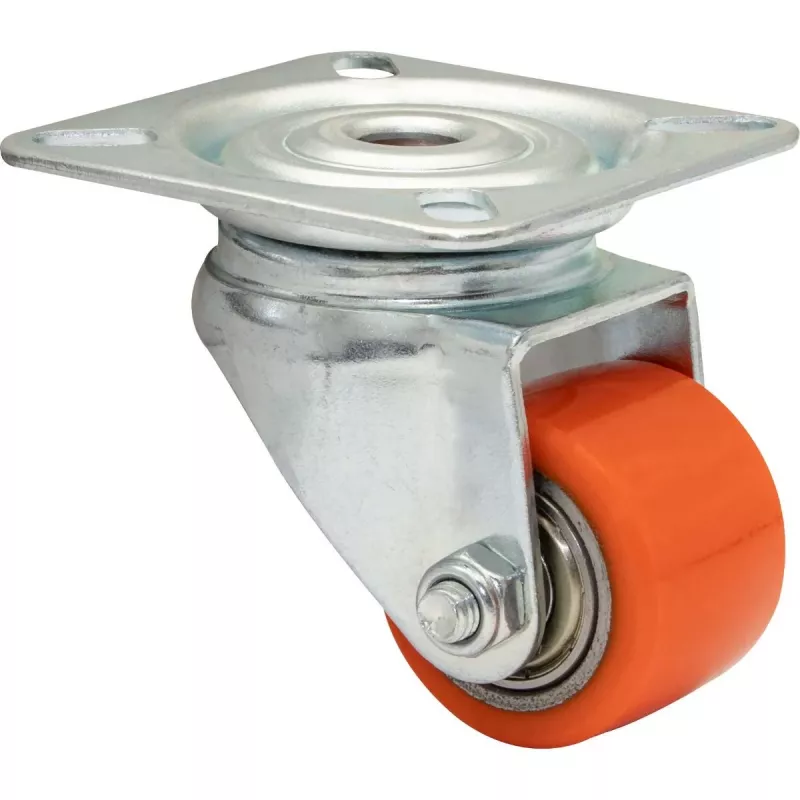

Wagner design yourself zware zwenkwiel RO 6935 rood (4693501)

Moving heavy loads on sensitive floors often damages surfaces and strains equipment. The Wagner design yourself Heavy Duty Swivel Castor RO 6935 solves this with a soft thermoplastic rubber wheel that protects floors while supporting up to 150 kg per castor. Its total stop brake locks both wheel and swivel, keeping trolleys and furniture securely in place.

Who is it for

This castor is ideal for workshops, warehouses, and home use where heavy equipment, furniture, or trolleys need to be moved safely without scratching floors. It suits anyone needing reliable mobility with a secure braking system.

Main features

• 100 mm wheel diameter for smooth rolling over obstacles
• 150 kg load capacity per castor for heavy-duty applications
• Total stop brake locks wheel and swivel simultaneously
• Thermoplastic rubber wheel is gentle on all floor types, including sensitive surfaces
• Galvanized steel housing resists corrosion
• Plain bearing for low maintenance and quiet operation

Specifications

• Wheel diameter: 100 mm
• Load capacity: 150 kg
• Overall height: 128 mm
• Mounting plate dimensions: 100 x 80 mm
• Mounting hole spacing: 80 x 60 mm
• Mounting hole diameter: 9 mm
• Wheel material: Thermoplastic rubber (TPE)
• Housing material: Galvanized steel
• Bearing type: Plain bearing
• Brake type: Total stop brake
• Temperature range: -20°C to +60°C

Tips

For best performance, ensure the mounting surface is flat and the castor is securely fastened. Use multiple castors with matching load ratings to distribute weight evenly. Regularly check the brake mechanism for smooth operation.
