WAGO 2004-1204 TOPJOB S 2-aderige doorvoerklem, 800 V, 32 A, 4 mm², grijs

The WAGO 2004-1204 is a high-quality 2-conductor through terminal block from the TOPJOB S series, designed for reliable and maintenance-free wiring in industrial and building installations. With a compact width of 6.2 mm and a rated voltage of 800 V, it offers space-saving and safe connections for solid and fine-stranded conductors up to 4 mm² (AWG 12). The push-in CAGE CLAMP® connection technology ensures fast, tool-free wiring, reducing installation time and costs.

Advantages

• Push-in CAGE CLAMP® for quick and easy connection
• Compact 6.2 mm width saves space on DIN-rail
• Rated voltage 800 V and rated impulse voltage 8 kV for high safety
• Wide conductor range: 0.25 - 4 mm² (22 - 12 AWG)
• V0 flammability rating according to UL 94 for fire safety
• Operating temperature range -35 °C to +85 °C for versatile use

Suitable for

• Industrial control cabinets
• Building automation systems
• Distribution boards
• Lighting and power circuits
• Machine wiring

Key specifications

• Series: TOPJOB S
• Connection technology: Push-in CAGE CLAMP®
• Number of conductors: 2
• Number of potentials: 1
• Rated voltage (EN): 800 V
• Rated impulse voltage: 8 kV
• Rated current (EN): 32 A
• Solid conductor: 0.25 - 4 mm² (22 - 12 AWG)
• Fine-stranded conductor: 0.25 - 4 mm² (22 - 12 AWG)
• Fine-stranded with ferrule: 0.25 - 2.5 mm² (22 - 14 AWG)
• Strip length: 9 - 11 mm (0.35 - 0.43 in)
• Mounting: DIN-rail 35 mm
• Color: Gray
• Insulating material: Polyamide (PA)
• Flammability rating: V0 (UL 94)
• Pollution degree: 3
• Operating temperature: -35 ... +85 °C

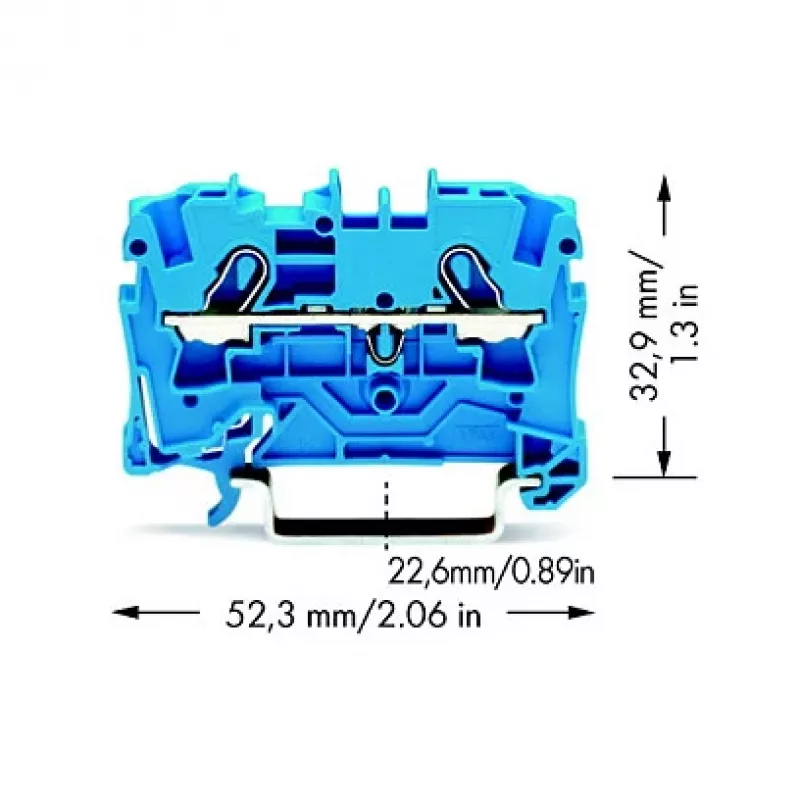

• Dimensions (W x H x D): 6.2 mm x 52.3 mm x 32.9 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper strip length (9-11 mm) for reliable connection. Suitable for use in environments with pollution degree 3.
