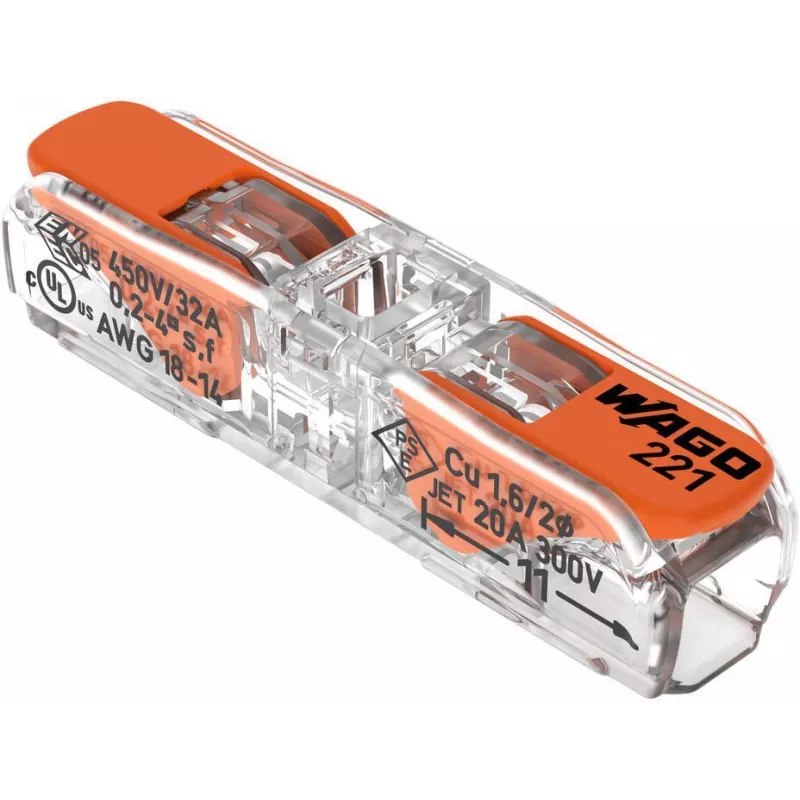

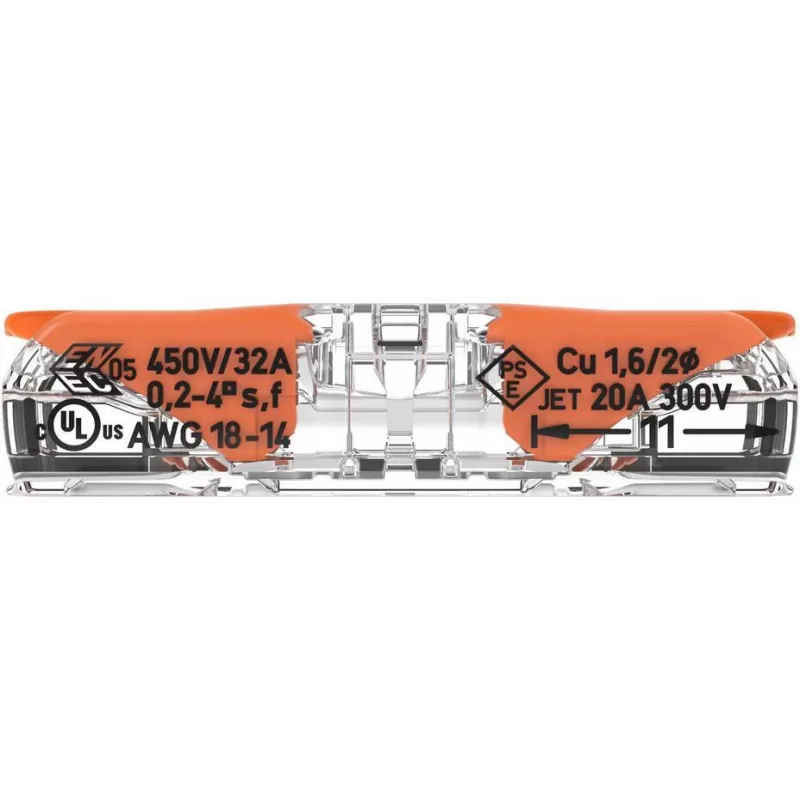

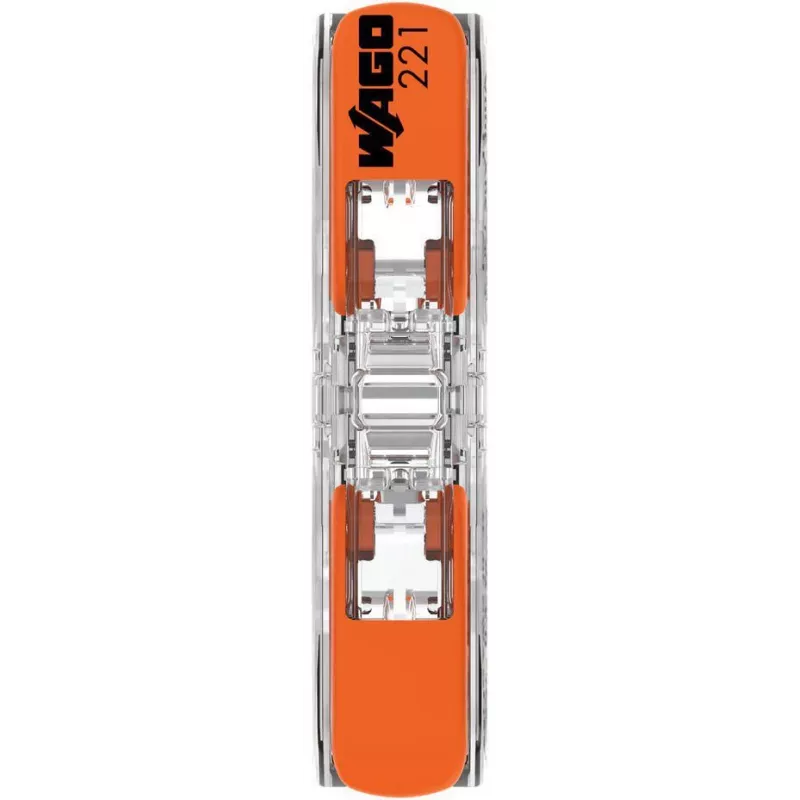

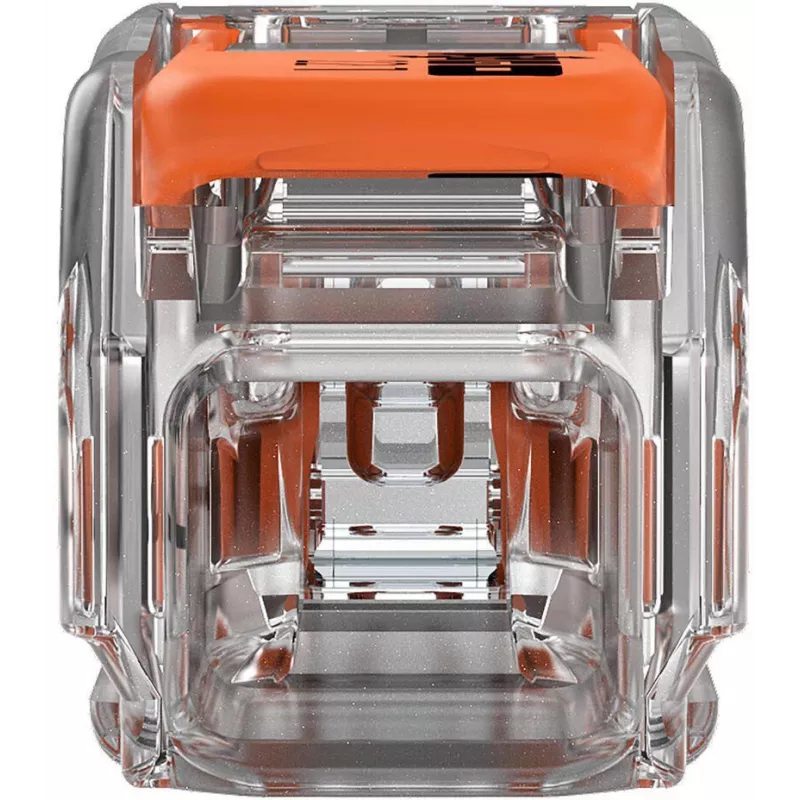

WAGO 221-2411 2-aderige compacte verbinder, 0,2-4 mm², 60-pack

The WAGO 221-2411 is a high-quality 2-conductor compact splicing connector from the renowned WAGO 221 Series. Designed for universal use with solid, stranded, and fine-stranded copper wires, it offers a reliable and tool-free connection thanks to the innovative CAGE CLAMP® technology. This pack contains 60 pieces, making it ideal for professional electricians and DIY enthusiasts alike.

Advantages

Tool-free lever actuation for quick and easy wiring. Transparent housing allows visual inspection of the connection. Compact design saves space in junction boxes. Suitable for a wide range of conductor sizes from 0.2 to 4 mm² (24-12 AWG). Rated voltage up to 450 V and current up to 32 A ensure robust performance.

Suitable for

• Electrical installations in residential and commercial buildings
• Lighting and switchgear connections
• Junction boxes and distribution boards
• Repair and maintenance work

Key specifications

• Number of conductors: 2
• Conductor cross-section: 0.2 - 4 mm² (solid/stranded), 0.14 - 4 mm² (fine-stranded)
• Rated voltage: 450 V
• Rated current: 32 A
• Connection technology: CAGE CLAMP®
• Actuation: Lever
• Strip length: 9 - 10 mm
• Operating temperature: -20 to +85 °C
• Flammability rating: UL 94 V-2
• Color: Transparent housing, orange levers
• Pack quantity: 60 pieces

Recommendations

For optimal performance, use with copper conductors only and ensure proper strip length. Suitable for use in pollution degree 2 environments. Always follow local electrical codes and regulations.
