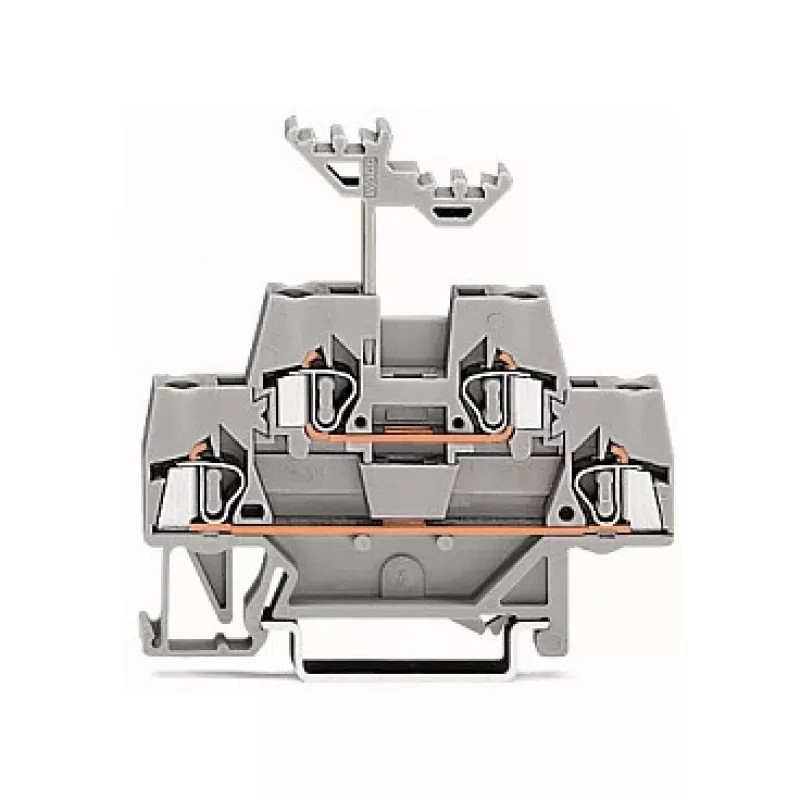

WAGO 280-519 2-aderige Push-in CAGE CLAMP klemmenblok, 2,5 mm², grijs, DIN-railmontage

The WAGO 280-519 is a high-quality 2-conductor terminal block featuring the innovative Push-in CAGE CLAMP® connection technology. Designed for reliable and maintenance-free wiring, this compact terminal block is ideal for a wide range of industrial and building automation applications. With a nominal cross-section of 2.5 mm² (AWG 12) and a rated voltage of 800 V, it ensures safe and efficient electrical connections.

Advantages

• Tool-free Push-in CAGE CLAMP® connection for solid and stranded conductors
• Compact design saves space on DIN-rail 35 x 7.5 / 35 x 15
• High reliability with rated impulse voltage of 8 kV and pollution degree 3
• Wide operating temperature range from -35 °C to +85 °C
• Multiple international approvals (VDE, UL, CSA, EAC, KEMA/KEUR, GL, LR, BV, RINA, DNV) ensure global compliance

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution and signal wiring
• Lighting and HVAC applications

Key specifications

• Number of Conductors: 2
• Connection Technology: Push-in CAGE CLAMP®
• Nominal Cross-Section: 2.5 mm² (AWG 12)
• Connectable Conductor Size (Solid): 0.25 ... 4 mm² / 22 ... 12 AWG
• Connectable Conductor Size (Stranded): 0.25 ... 4 mm² / 22 ... 12 AWG
• Connectable Conductor Size (Fine-Stranded): 0.25 ... 2.5 mm² / 22 ... 14 AWG
• Nominal Voltage (EN 60947-7-1): 800 V
• Nominal Current (EN 60947-7-1): 24 A
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Overvoltage Category: III
• Insulation Material: Polyamide (PA 66)
• Color: Gray
• Mounting Type: DIN-rail 35 x 7.5 / 35 x 15
• Stripping Length: 9 ... 11 mm / 0.35 ... 0.43 inch
• Operating Temperature: -35 ... +85 °C
• Approvals: VDE, UL, CSA, EAC, KEMA/KEUR, GL, LR, BV, RINA, DNV

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor preparation for reliable connections.
