Wandbeugel B-Tech XL universeel flatscreen VESA 900x600

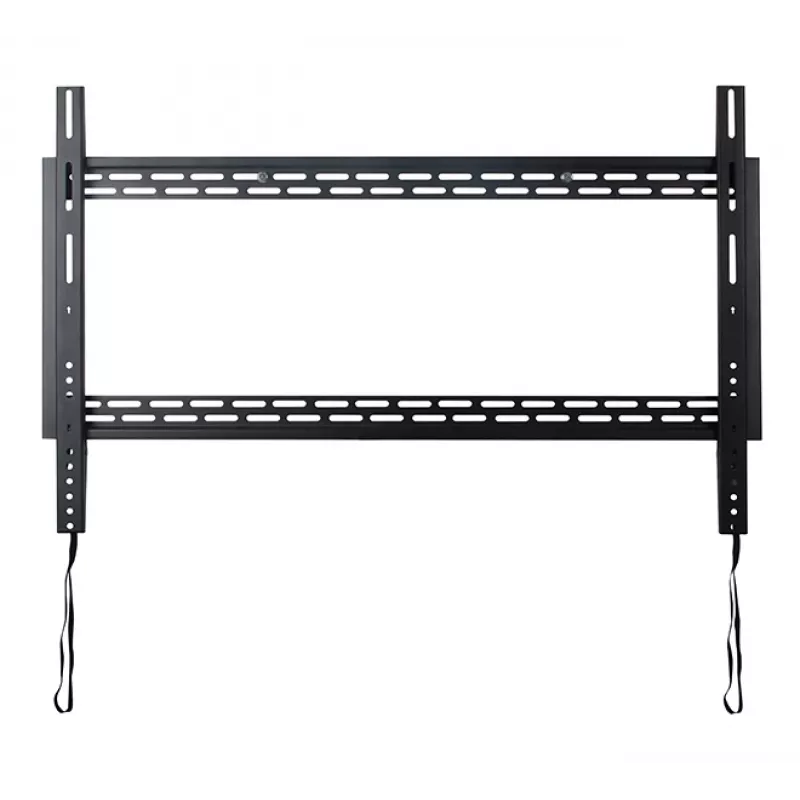

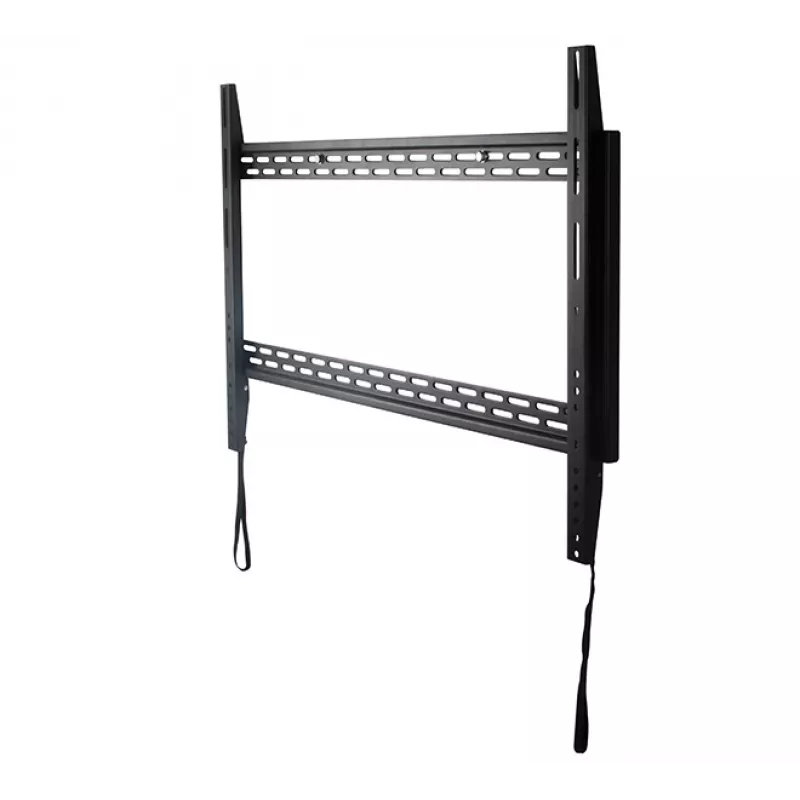

The B-Tech XL Universal Flat Screen Wall Mount VESA 900x600 is a fixed wall bracket designed to support a single flat screen television up to 65" with a maximum load of 100 kg. The bracket is compatible with VESA mounting patterns up to 900 x 600 mm and positions the screen close to the wall with a minimal gap of 3.3 cm. Finished in black, the mount provides a discreet profile and solid support for residential and commercial installations where a robust, low-profile solution is required.

Advantages

This wall mount combines wide VESA compatibility (up to 900 x 600 mm) with a high weight capacity of 100 kg, allowing installation of larger flat screens while maintaining a compact distance to the wall. The minimal 3.3 cm clearance reduces visual bulk and creates a clean, space-saving installation. The single-display design simplifies fitting and reduces hardware complexity while the black finish integrates with most screen bezels and interior schemes.

Suitable for

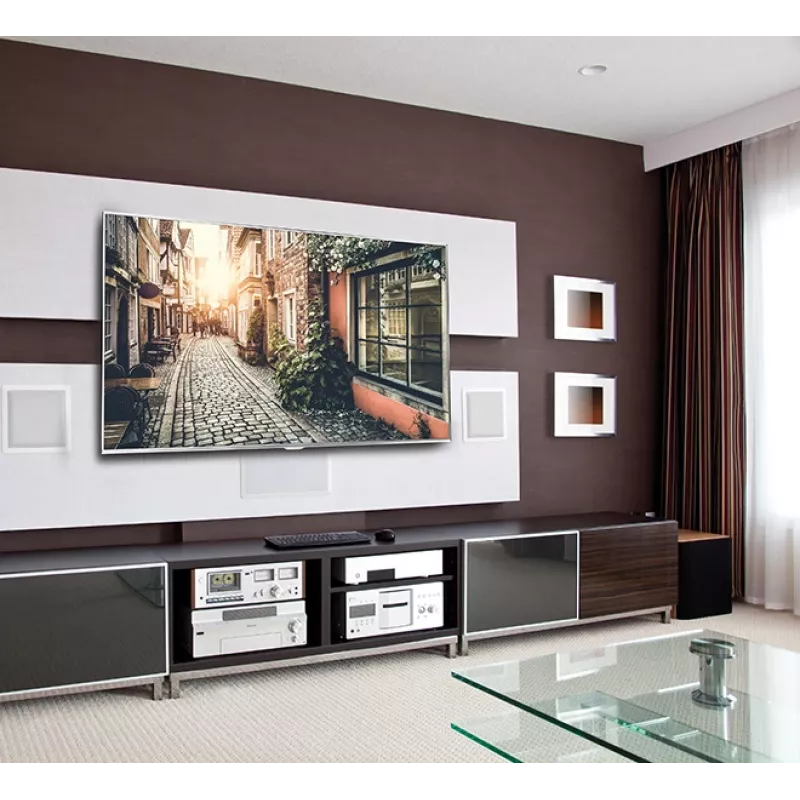

• Mounting a single 65" flat screen TV in living rooms or conference areas
• Wall installations in retail displays or public spaces where a secure, low-profile mount is required
• Home cinema or media rooms where a close-to-wall fit is preferred

Key specifications

• Maximum weight capacity: 100 kg
• Maximum screen size supported: 65"
• VESA compatibility: up to 900 x 600 mm
• Number of displays supported: 1

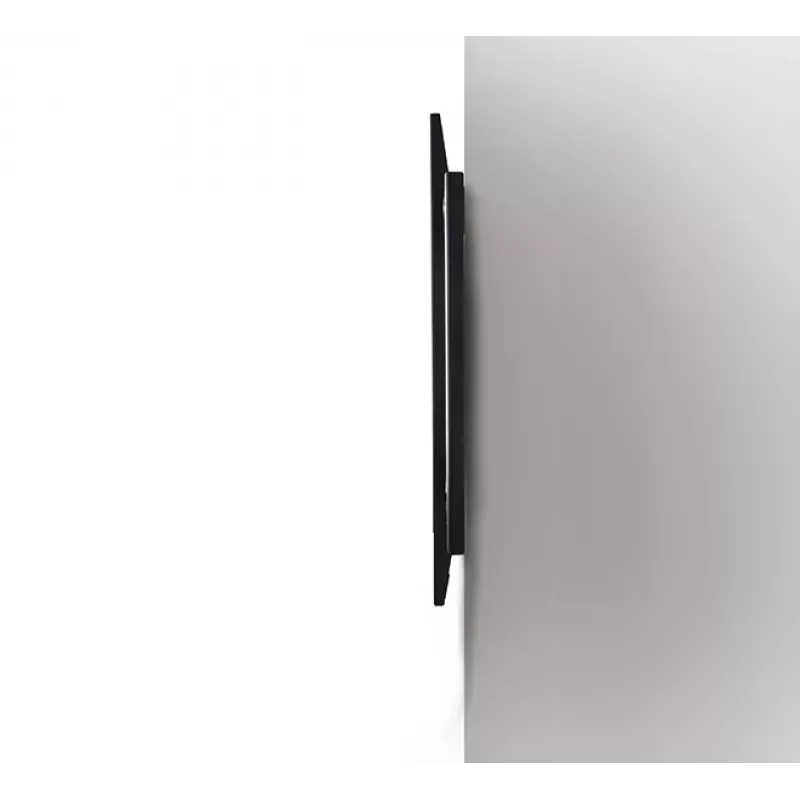

• Distance from wall (minimal): 3.3 cm
• Finish / colour: Black

How to use

Identify a suitable load-bearing wall and mark fixing points at the required height, ensuring the chosen location can support the combined weight of the mount and the screen. Attach the wall plate securely using appropriate anchors or bolts for the wall type, then affix the display adapter arms to the TV using screws that match the TV's VESA pattern up to 900 x 600 mm. Lift the screen and engage the adapter arms with the wall plate according to the product's installation sequence, then tighten security screws or safety locks. Verify the mount is level and that all fastenings are secure before releasing the screen.

Recommendations

Use suitable fixings rated for the combined weight and wall material; if unsure, consult a qualified installer. Confirm the TV's VESA pattern and use the correct screw sizes supplied or recommended by the TV manufacturer. Regularly check all fastenings for tightness and inspect the mount periodically for signs of wear or movement.
