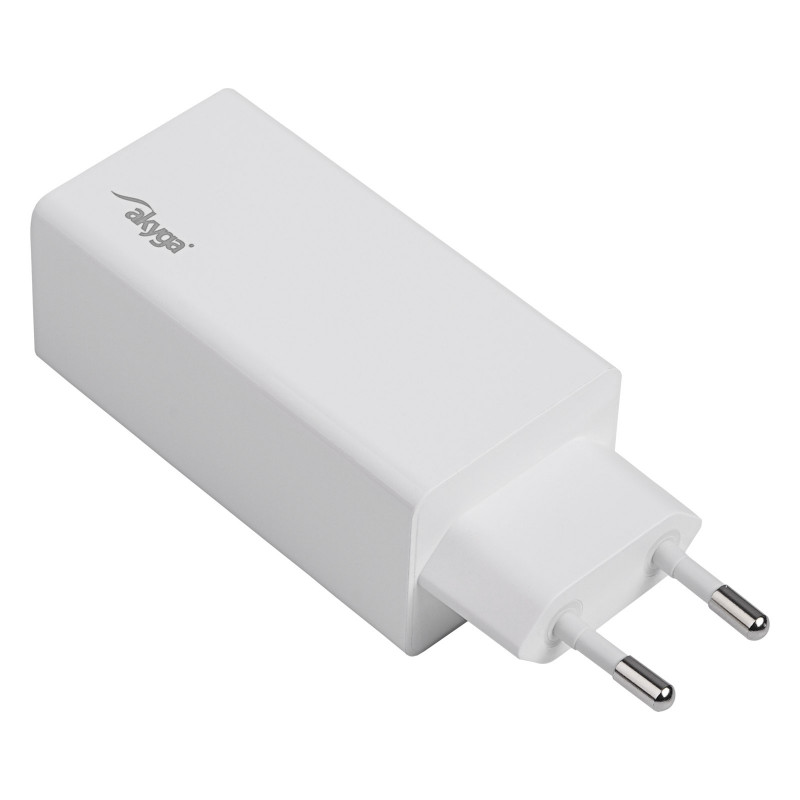

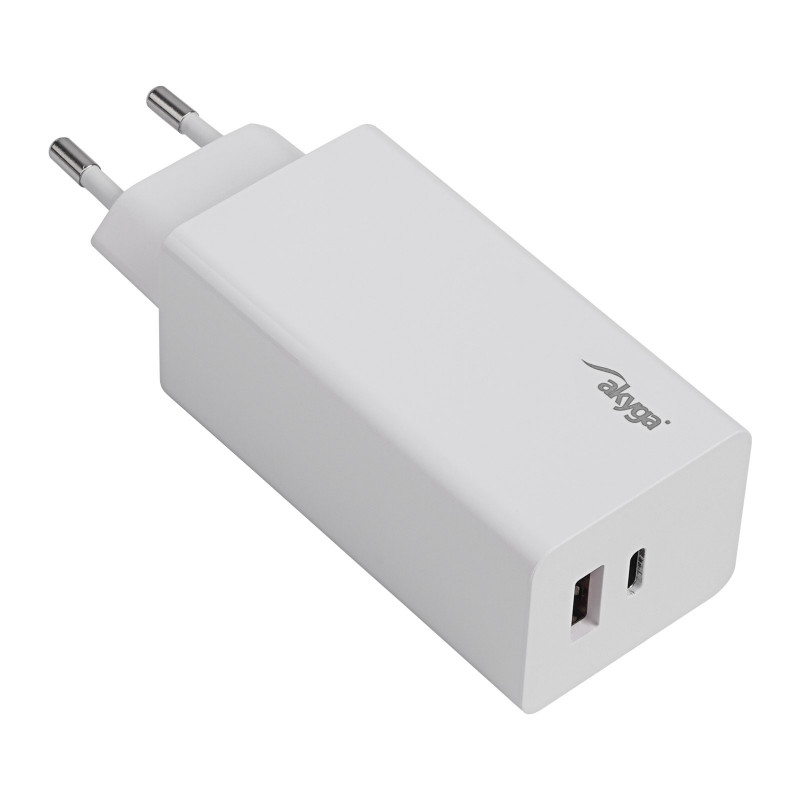

Wandlader Akyga AK-CH-20 100W USB-C USB-A PD GaN 5-20V / 1.5-5A wit

The Akyga AK-CH-20 GaN charger is a lightweight and handy power solution for mobile devices. It delivers up to 100 W via USB-C and 18 W via USB-A, allowing two devices to be charged simultaneously. The charger supports Quick Charge 3.0 and Power Delivery 3.0 for fast and safe charging.

Key features

• GaN technology for reduced size

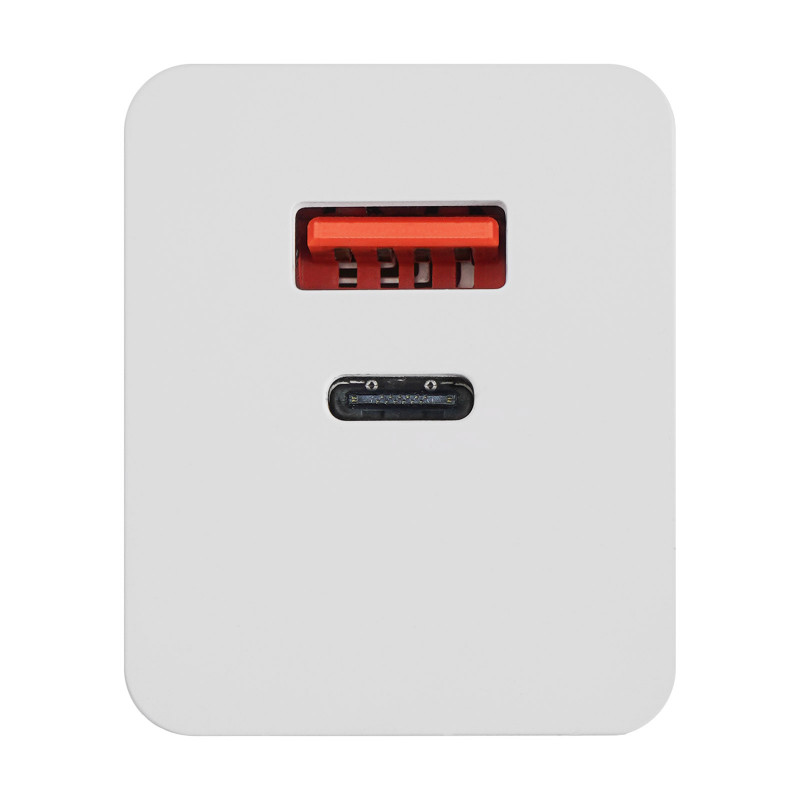

• Two USB ports: USB Type-A (18 W) and USB Type-C (100 W)
• Supports Quick Charge 3.0 and Power Delivery 3.0
• OVP, OCP, OTP, SCP protections
• Compliance with DCP (Dedicated Charging Port)

Specifications

• Brand: Akyga
• MPN: AK-CH-20
• Product colour: White
• Product type: AC/DC adapter
• Series: Universal
• Supply voltage: 110-240 V / 50/60 Hz
• Power consumption: < 1.6 A

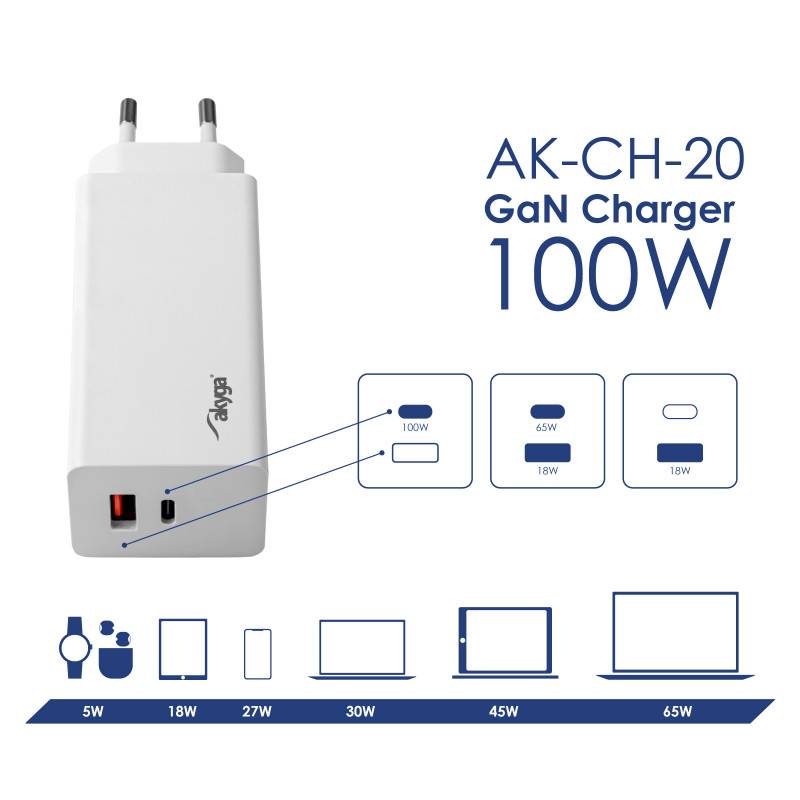

• Maximum power: 100 W (USB-C) or (65 W + 18 W)
• Mechanical switch: None
• Ground wire: None (II protection class)
• Power supply connector: CEE 7/16 (Europlug)
• USB-A output voltage: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A (Max. 18 W)
• USB-C output voltage: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 5 A (Max. 100 W)
• Material: ABS
• Display: None
• MTBF: 100000 h
• Temperature: 5 - 50 °C
• Product size (L x W x H): 112 x 39 x 32 mm
• Net weight: 148 g
• CE compatibility: Yes
• FCC compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720137814
