Wandmontage-rack Lanberg WF11-3304-10B 4U zwart 30 kg draagvermogen

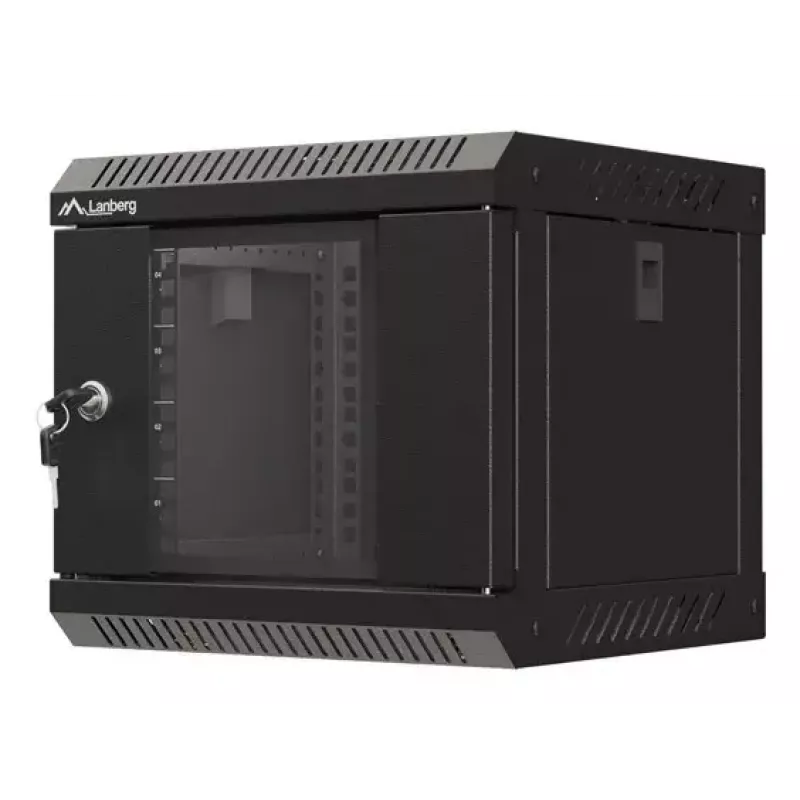

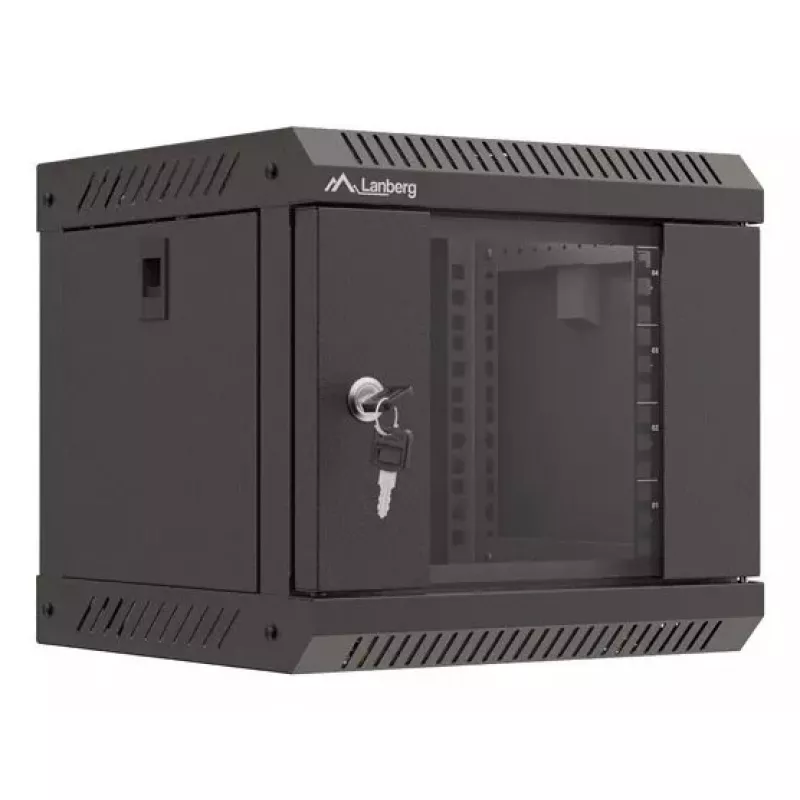

New series of WF11 wall-mounted 10" rack cabinets from Lanberg designed for ICT and IT professionals. The WF11 range is suitable for home IT networks, small and medium-sized businesses, server rooms and data centres. Cabinets are available in 4U, 6U and 9U sizes and feature a compact 300 x 300 mm footprint, tempered glass front door, grounding cable and multiple cable openings for neat installation and inspection of equipment.

Advantages

The WF11 series offers four vertical mounting rails, two additional rear rails for greater stability, and side access via pull-down doors. The design allows mounting a fan without using equipment space and includes M10 holes in the bottom cover for casters, feet or accessories. Flat-pack packaging reduces transport and storage costs and enables quick self-assembly. Cabinets are made of rolled steel for durable construction and are compatible with a wide range of Lanberg rack accessories.

Key specifications

• Form factor: 10" wall-mounted rack cabinet
• Available heights: 4U, 6U, 9U
• Footprint: 300 x 300 mm
• Material: rolled steel

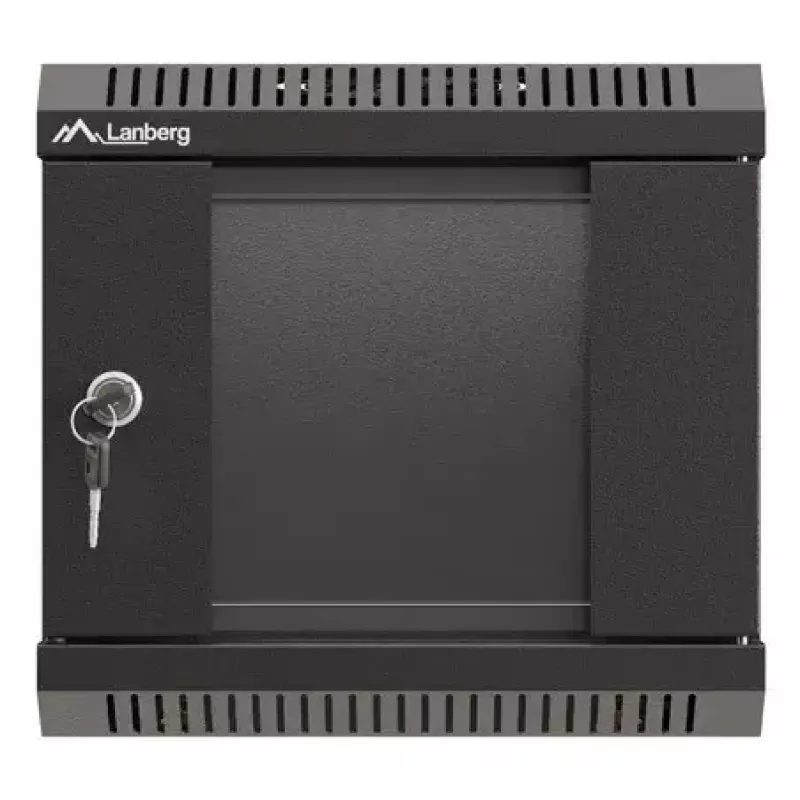

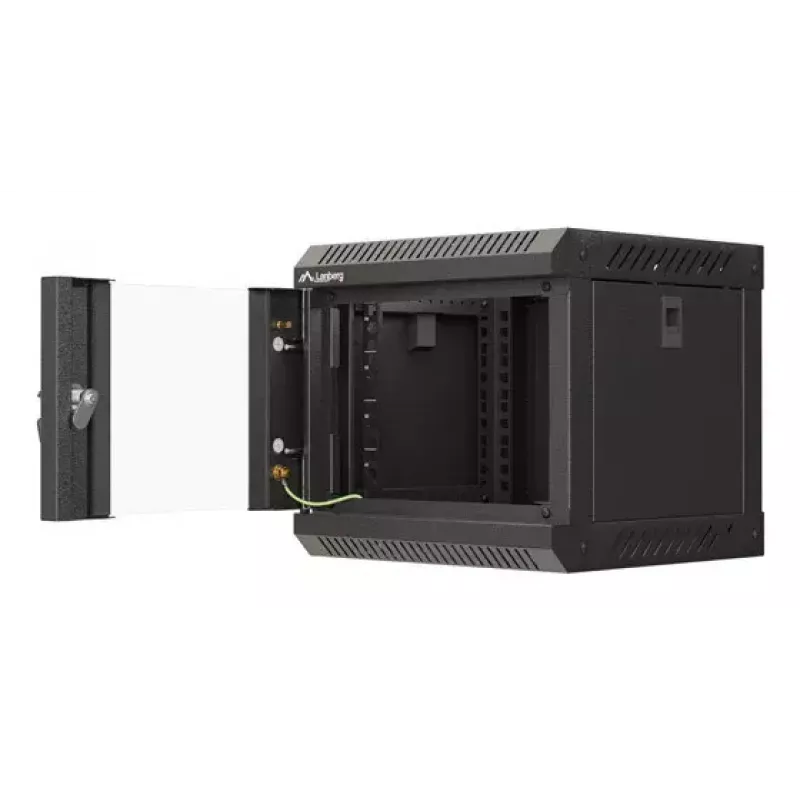

• Front door: tempered glass
• Mounting rails: 4 vertical rails + 2 rear rails

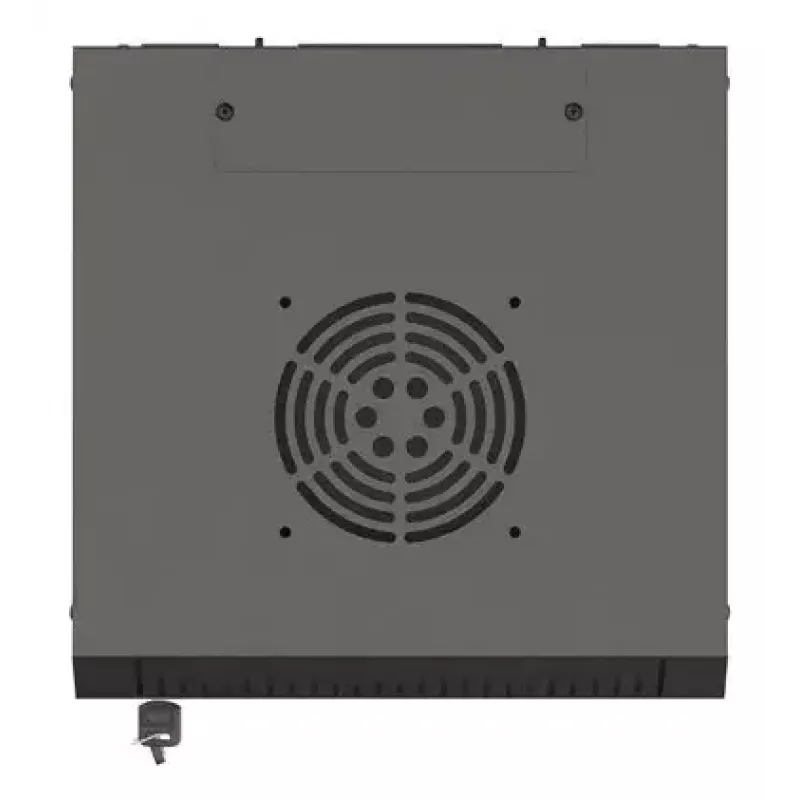

• Ventilation: ceiling and bottom ventilation holes; fan can be mounted without occupying equipment space

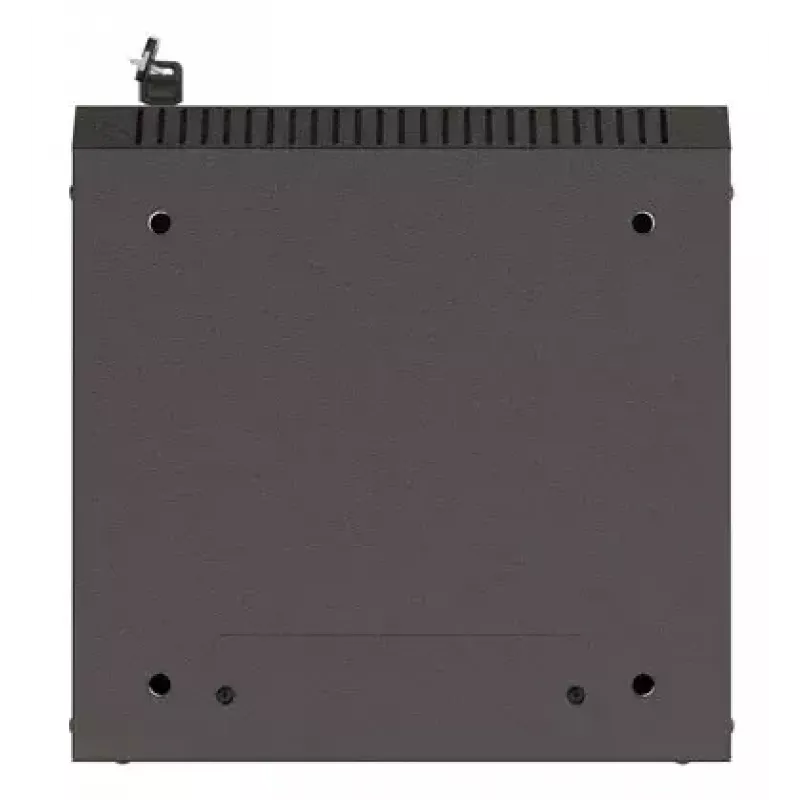

• Bottom cover: M10 holes for casters/feet/accessories

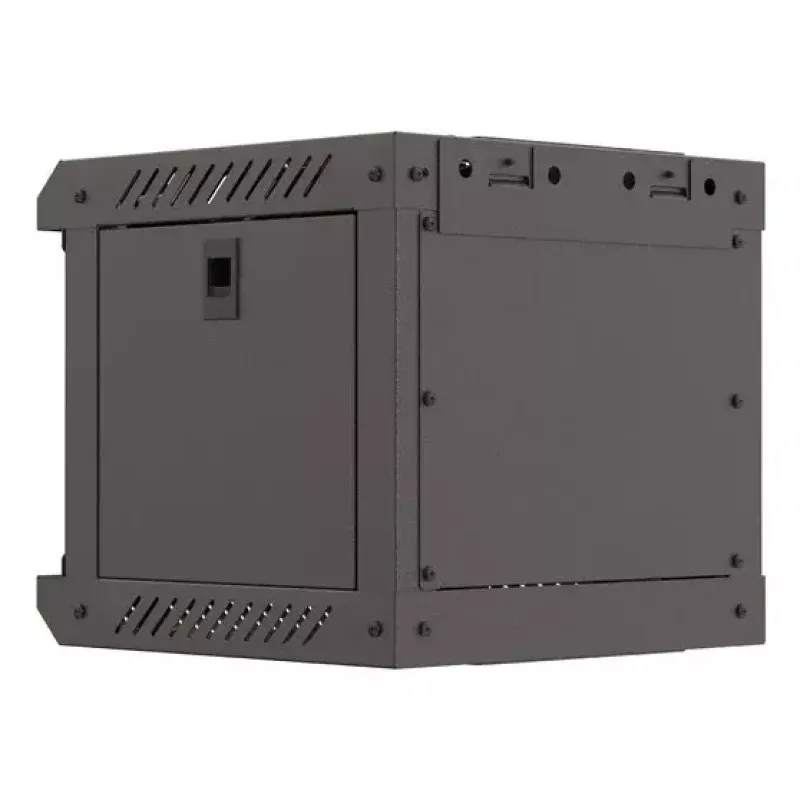

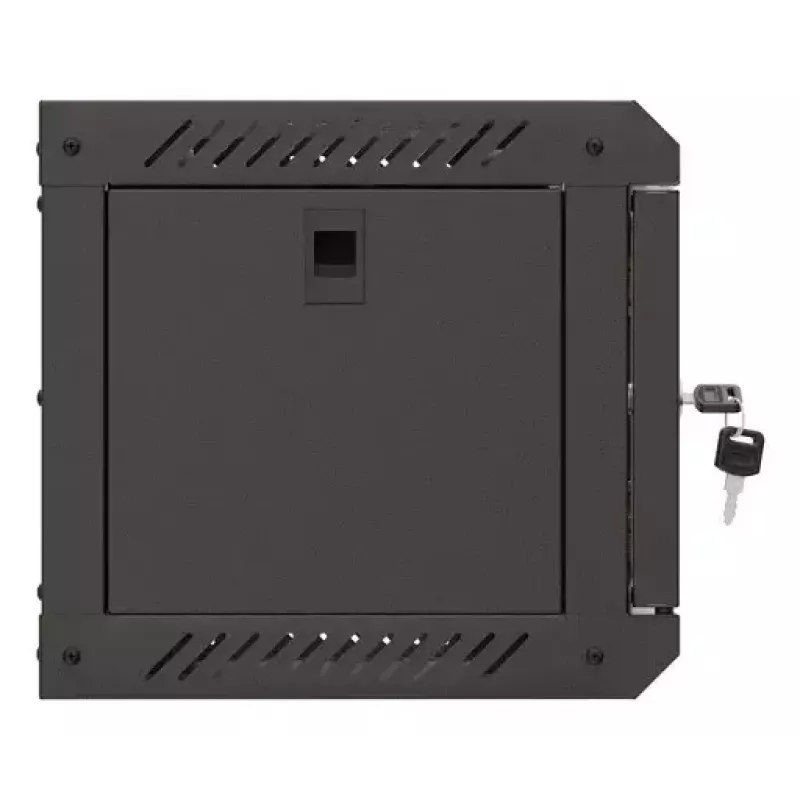

• Access: reversible front door (left/right), pull-down side doors, removable rear wall

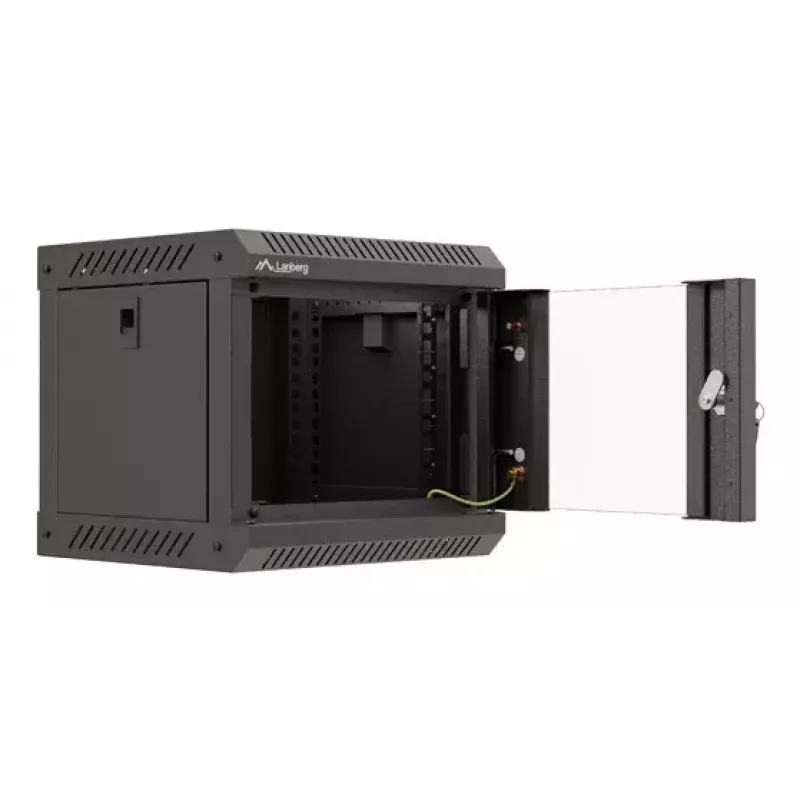

• Grounding: included grounding cable
• Packaging: flat pack for compact transport and storage
• Compatibility: supports Lanberg accessories (shelves, brush panels, cable organisers, caps, fans, thermostats, patch panels, keystone panels, PDU strips, casters, feet, installation tools)

How to use

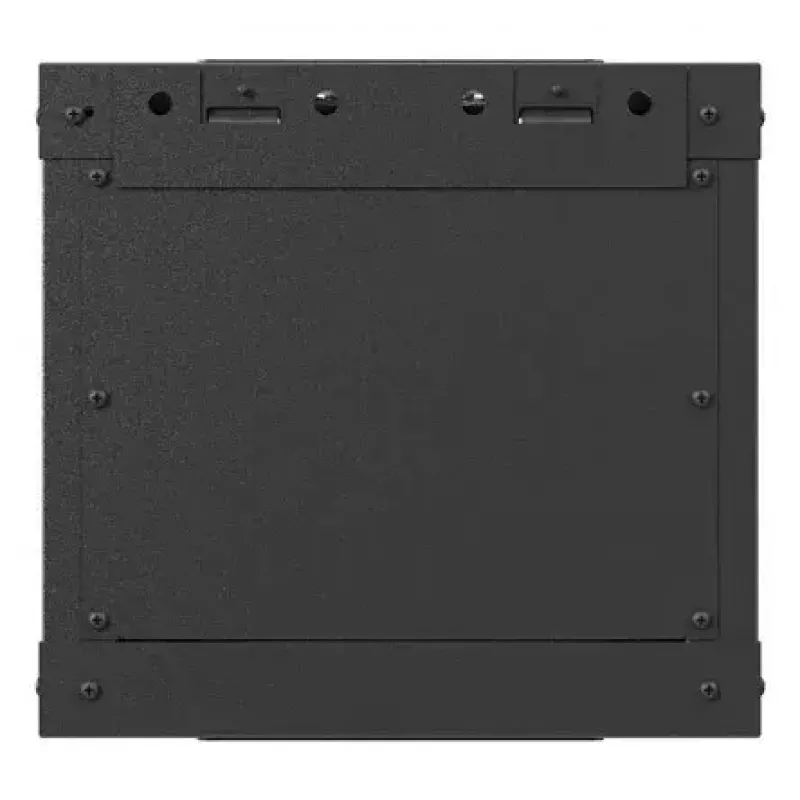

Mount the rear mounting strip to the wall at the required height, then hang and secure the cabinet. Install equipment on the vertical mounting rails and use the additional rear rails for heavy or long items to improve stability. Use the top and bottom cable openings for routing power and network cabling and attach the included grounding cable to the chassis. Configure the front door as left- or right-handed if needed, open pull-down side doors for easier access during installation and maintenance, and remove the rear wall when large internal access is required.

Recommendations

For reliable cooling, combine the cabinet's passive ventilation with appropriate fans and monitor equipment temperature. Choose compatible Lanberg shelves, brush panels and cable organisers to keep cabling tidy and to maximise usable space. When mounting on wheels or fixing feet, use the M10 mounting holes and verify load capacity of chosen accessories.
