Wandmontagerack Intellinet 714808

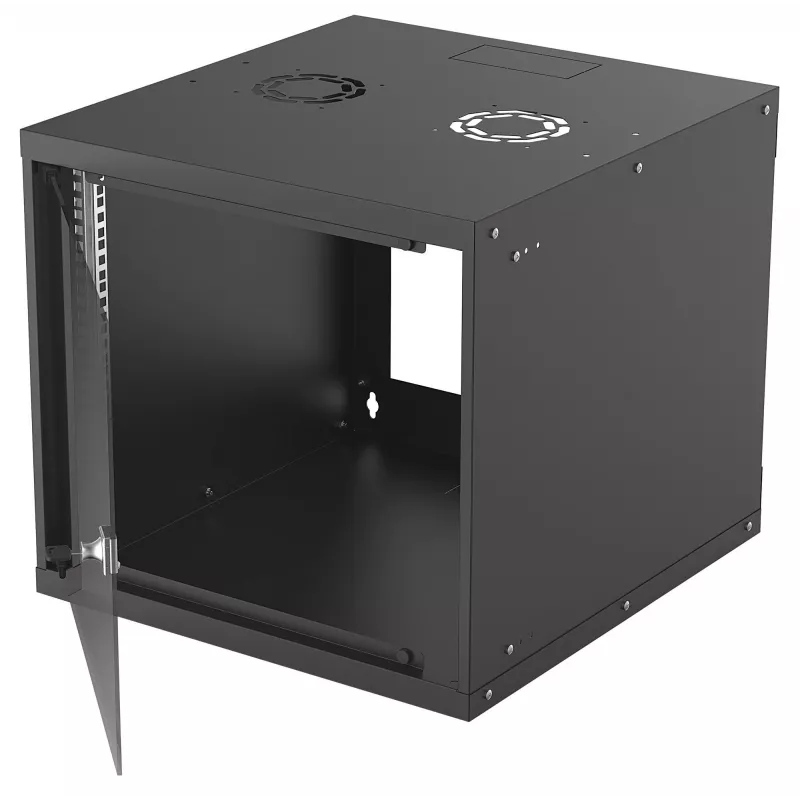

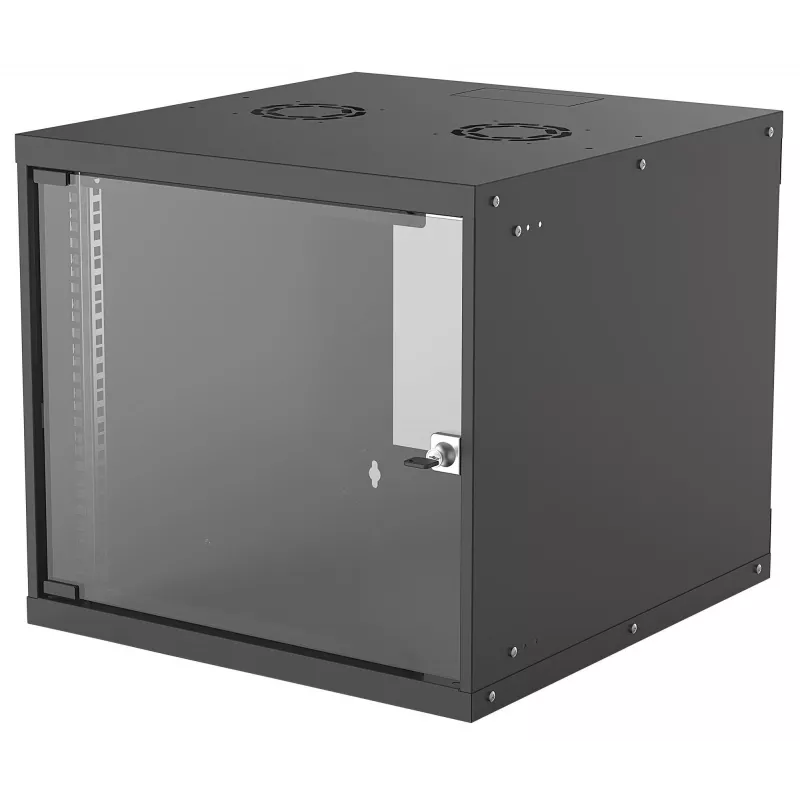

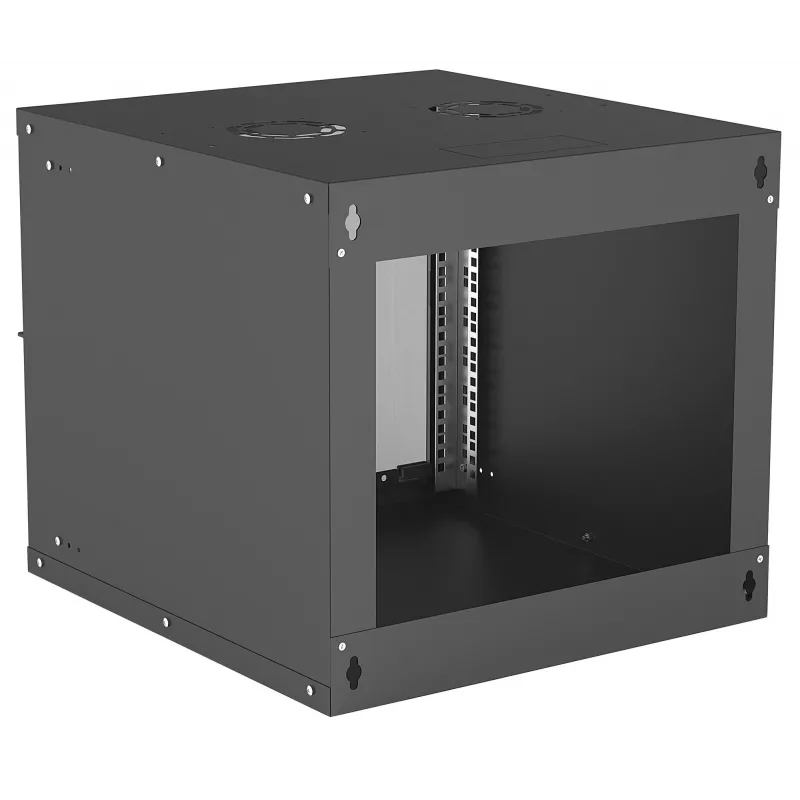

The Intellinet Wall Mount Rack 714808 is a 9U wallmount cabinet designed to protect and organize network equipment in limited-space environments. Constructed from cold-rolled, galvanized steel with a reversible tempered-glass front door, the cabinet provides an IP20 protection rating and supports up to 50 kg of mounted equipment. It comes in a black finish and offers a usable internal depth suitable for common network devices.

Advantages

This wall mount rack combines durable steel construction and a tempered-glass door to allow visibility of installed devices while protecting them from casual contact. The reversible door supports flexible installation in tight spaces, and the cabinet’s 9U capacity and device-friendly depth accommodate standard networking equipment. The product’s IP20 rating signifies basic protection against solid objects, and the rack is lightweight for easier handling during mounting.

Suitable for

• Small server rooms and telecom closets
• Office network equipment such as switches, patch panels and routers
• Environments where a compact, visible wallmount cabinet is required

Key specifications

• Model: Intellinet Wall Mount Rack 714808 (9U)
• Width: 540 mm
• Depth: 560 mm (usable depth ~500 mm)
• Height: 487 mm
• Rack capacity: 9U (19" compatible)
• Maximum load: 50 kg
• Weight: 13.15 kg
• IP rating: IP20
• Material: Cold-rolled, galvanized steel with tempered glass door
• Colour: Black
• Installation parts: not included
• Warranty: 3 years

How to use

Mount the cabinet on a suitable load-bearing wall following local building and safety regulations. Use appropriate anchors and fasteners for the wall material (anchors not supplied). Install equipment into the 19" rack posts and secure with standard rack screws. The reversible glass door allows access from either side depending on mounting orientation. Ensure total mounted weight does not exceed the specified 50 kg limit.

Recommendations

Place heavier devices at the lower U positions to maintain stability, leave adequate ventilation space around active equipment, and verify grounding and cable strain relief during installation. Regularly inspect door hinges and mounting anchors for security.
