Wandrack Extralink 18U 600x450 grijs

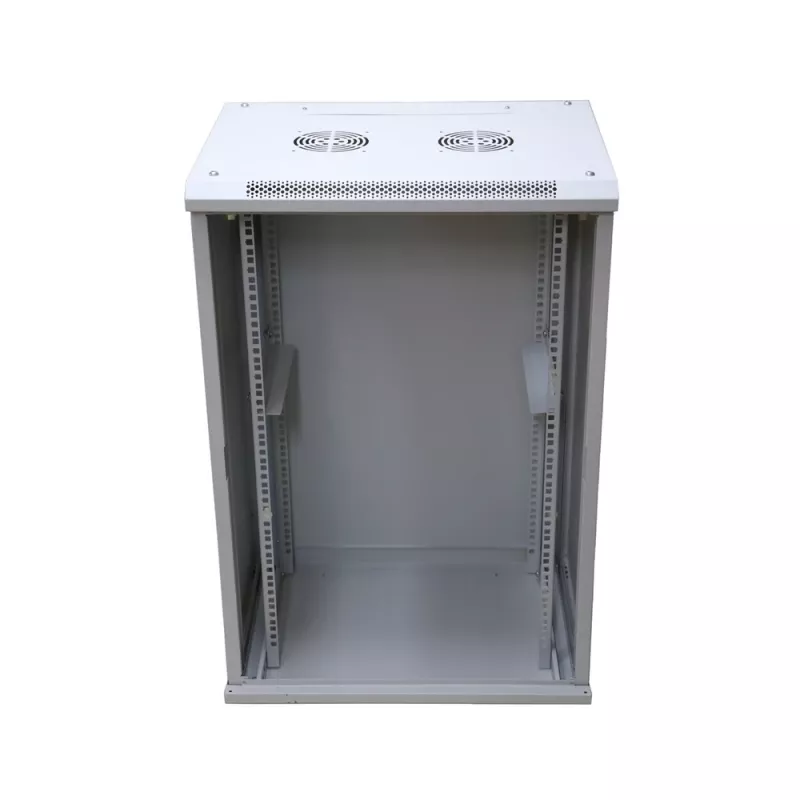

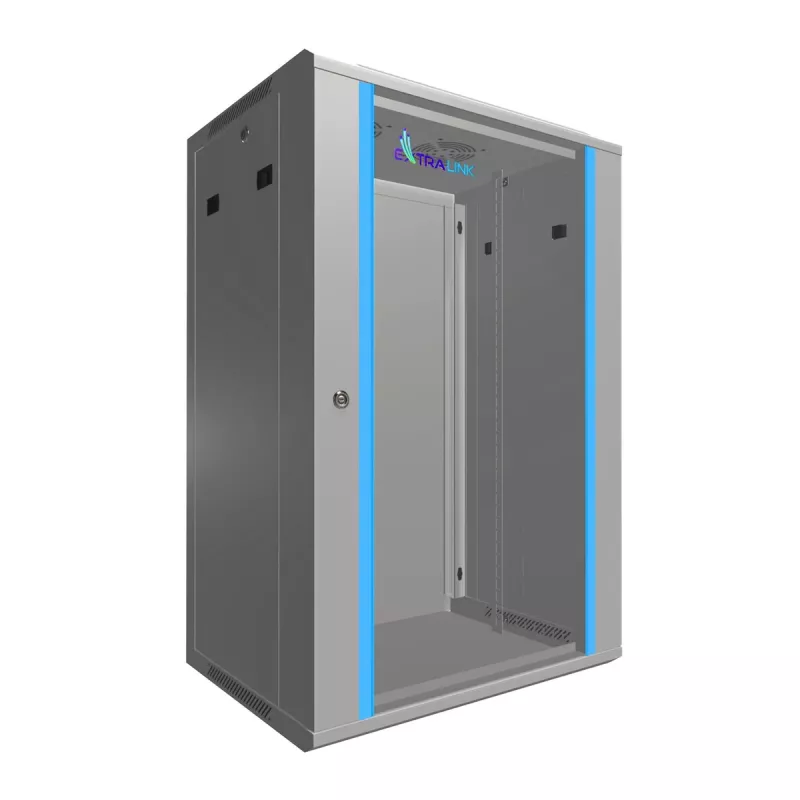

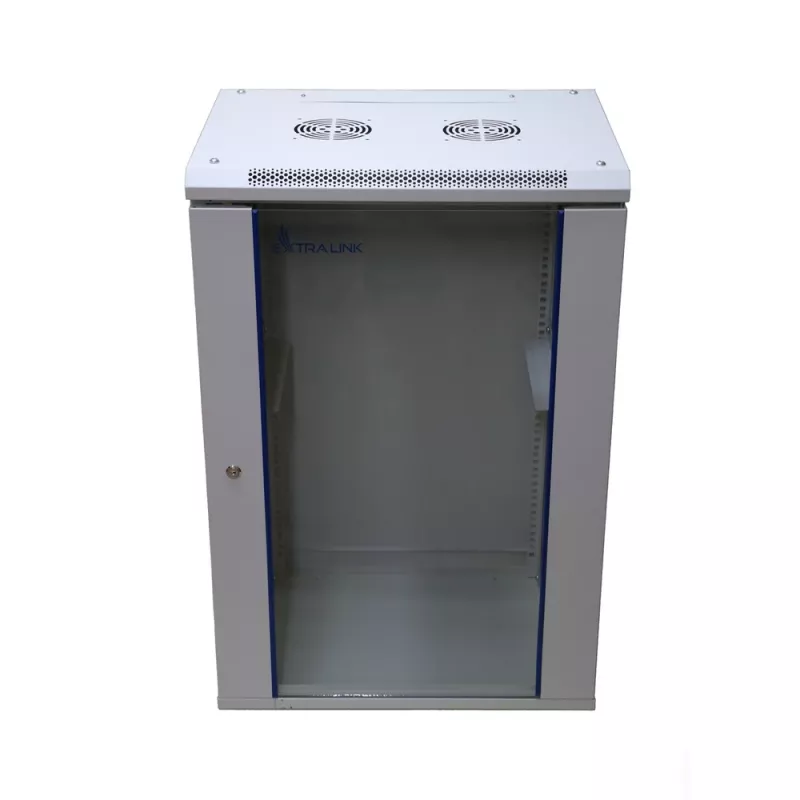

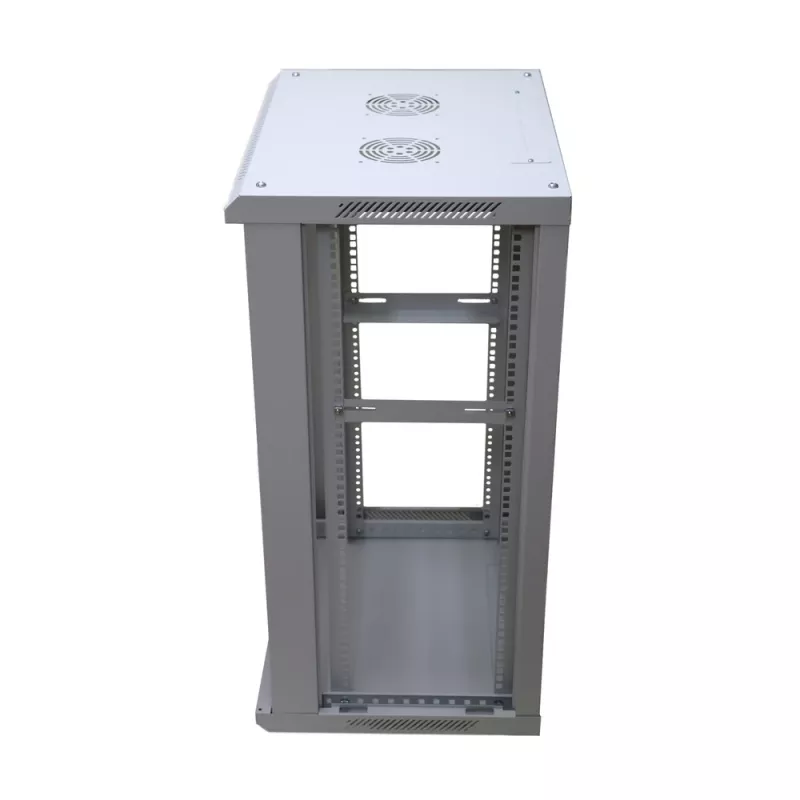

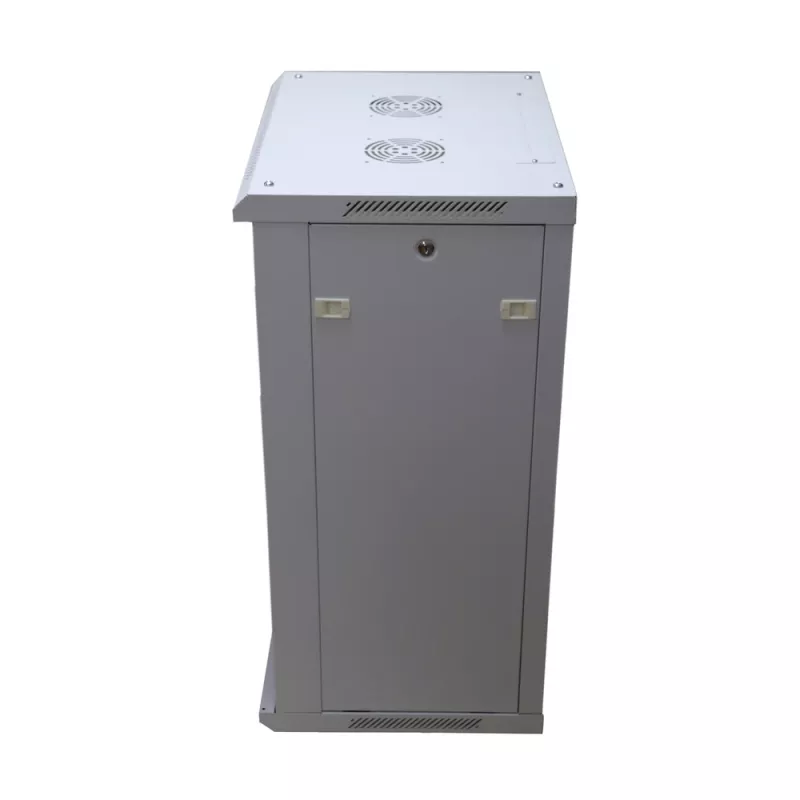

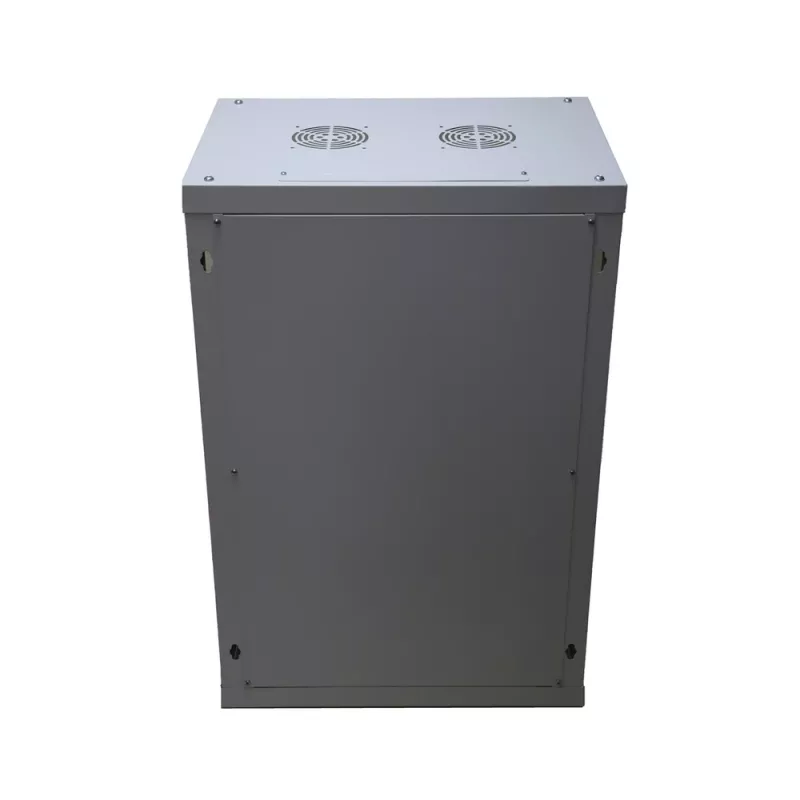

The Extralink 18U wall mounted rack cabinet (600 x 450 mm, grey) is designed for mounting on walls in offices, network server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can be opened to the left or right, the cabinet provides a secure, space-saving enclosure for networking equipment. Vertical mounting rails are marked for 18U, and the cabinet total height is 101 cm. Side panels are removable with snap fasteners, and the ceiling includes two fan mounting positions and an additional cable conduit.

Advantages

The cabinet offers a compact 18U capacity in a 600 x 450 mm footprint, suitable for small to medium equipment installations. Its cold-rolled steel body and tempered glass front door combine durability with visual access to installed devices. Removable side panels and included lock and keys simplify maintenance and security. Built-in provision for fan installation and cable routing supports improved cooling and cable management.

Suitable for

• Small office network switches and patch panels
• Server rooms with limited floor space
• CCTV DVRs/NVRs and related surveillance equipment
• Telecommunications and network distribution points

Key specifications

• Rack capacity: 18U
• Outer dimensions (W x D): 600 x 450 mm
• Total height: 1010 mm
• Material: cold-rolled steel body, tempered glass front door
• Colour: Grey
• Maximum load (manufacturer data): up to 180 kg (referenced in product summary)
• Accessories: vertical mounting rails with unit markings, locks and keys included

How to use

Mount the cabinet securely to a suitable wall structure using appropriate anchors and fixings for the wall type. Install equipment on the vertical rails using standard 19" rack mounting holes and fasteners. If required, remove the side panels via the snap fasteners to access cabling or rear device connections. Fit fans to the ceiling mounting positions to improve airflow and route cables through the provided conduit to avoid obstruction.

Recommendations

Ensure wall fixings are rated for the combined weight of the cabinet and installed equipment. Maintain adequate ventilation and, where necessary, use the ceiling fan mounts to prevent overheating of active devices. Use the included lock to restrict physical access and route network and power cabling separately to reduce interference.
