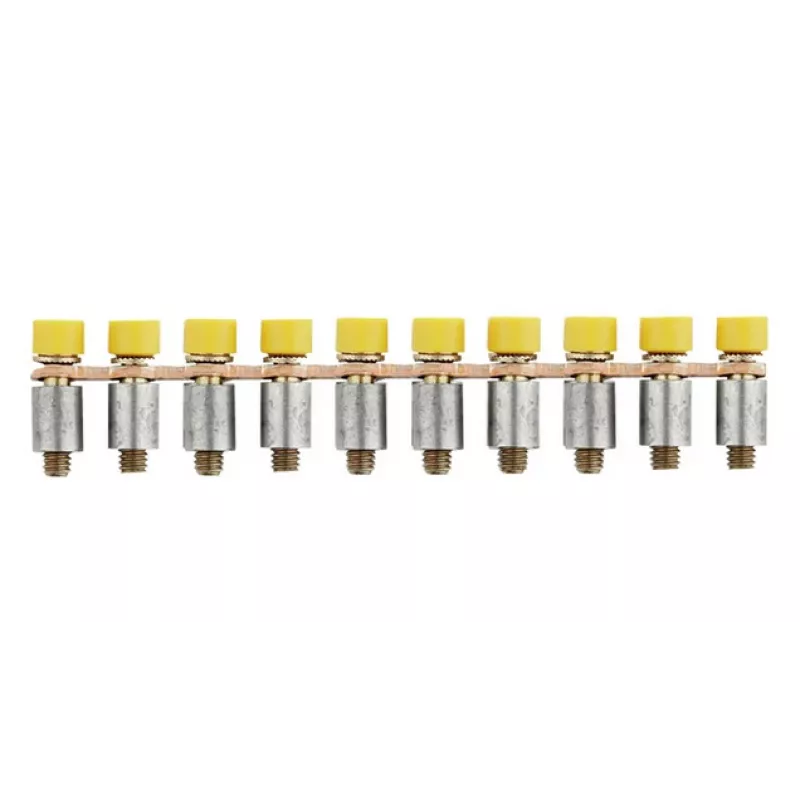

Weidmüller dwarsverbinder Q 10 WDL2.5S, 10-polig, grijs

The Weidmüller Cross-Connector Q 10 WDL2.5S is a high-quality 10-pole plug-in jumper designed for potential distribution in WDL 2.5S series terminal blocks. It enables efficient and reliable electrical connections within control cabinets and industrial installations.

Advantages

• Quick and tool-free installation via plug-in design
• Space-saving 5.0 mm pitch for compact wiring
• Robust polyamide housing with UL94 V-2 flammability rating for safety
• Wide operating temperature range from -50 to +100 °C
• RoHS and REACH compliant, ensuring environmental responsibility

Suitable for

• Potential distribution in Weidmüller WDL 2.5S terminal blocks
• Industrial control panels and automation systems
• Electrical installations requiring reliable cross-connections

Key specifications

• Number of Poles: 10
• Rated Current: 24 A
• Rated Voltage: 800 V
• Pitch: 5.0 mm
• Housing Material: Polyamide (PA)
• Colour: Grey
• Operating Temperature: -50 to +100 °C
• Flammability Rating: UL94 V-2

Recommendations

For optimal performance, use with Weidmüller WDL 2.5S terminal blocks. Ensure proper insertion to maintain rated electrical characteristics.
