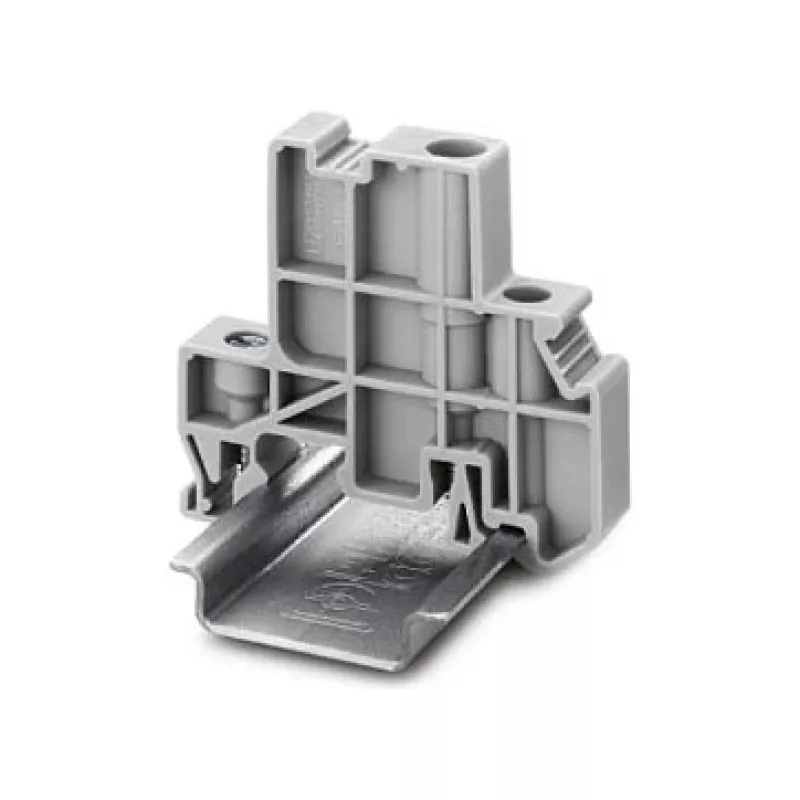

Phoenix 1201413 eindhouder E/UK 1, DIN-railmontage, polyamide, grijs, 9,5 mm breed

In industrial control panels and building installations, terminal blocks on DIN rails must be securely fixed to prevent movement and maintain electrical isolation. The Phoenix 1201413 End Stop E/UK 1 provides a reliable mechanical stop for CLIPLINE complete terminal blocks on NS 35/7.5 and NS 35/15 DIN rails. Its snap-on mounting requires no tools, and the polyamide construction ensures long-term stability even under vibration.

Key specifications

• Product type: End stop for terminal blocks
• Mounting type: DIN rail mount (snap-on, screwless)
• Compatible rails: NS 35/7.5 and NS 35/15
• Material: Polyamide (PA), gray
• Dimensions: Width 9.5 mm, height 35.5 mm, depth 42.5 mm
• Operating temperature: -60 °C to 105 °C
• Flammability rating: UL 94 V0
• Insulating material group: I
• Approvals: EAC, cULus Recognized, UL Recognized
• Environmental compliance: RoHS compliant
• System compatibility: CLIPLINE complete

Why choose it

This end stop ensures terminal blocks remain firmly fixed on the DIN rail, preventing lateral movement that could compromise connections. The high-quality polyamide offers excellent electrical insulation and mechanical strength, while the wide temperature range suits demanding environments. Its compact width saves space in dense installations.

Ideal use cases

• Securing terminal blocks in control cabinets
• Industrial automation and machinery wiring
• Building installation distribution boards
• Railway and transportation systems
• Any application using CLIPLINE complete terminal blocks

Good to know

The end stop is designed for tool-free installation: simply snap it onto the DIN rail at the end of the terminal block row. It is compatible with standard 35 mm rails and meets stringent safety standards, making it a dependable choice for professional electricians and panel builders.
