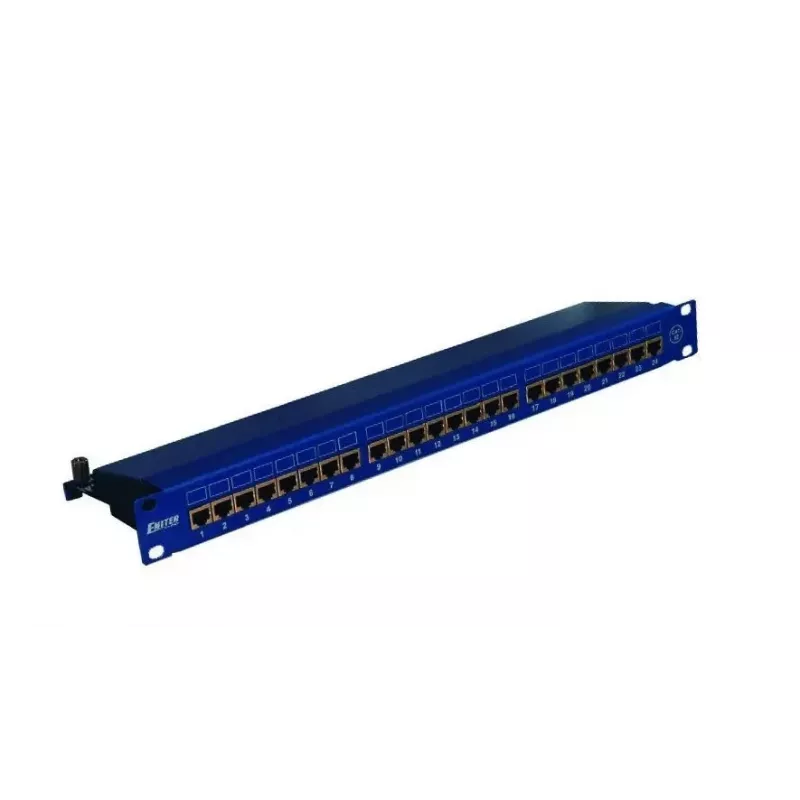

EMITERNET PATCH PANEL 19 inch 24xRJ45 STP CAT.5E (1U) BLAUW DCN/PPFA674BKS248C5E

Dense rack environments demand a patch panel that preserves signal integrity without wasting space. The EMITERNET 19" 24-Port STP Cat.5e Patch Panel delivers 24 shielded RJ45 ports in a single rack unit, combining maximum density with robust EMI rejection. Its grounded steel frame and STP design make it ideal for server rooms, industrial floors, and any high-interference area where unshielded panels fall short. The blue powder-coated finish enables quick visual identification in multi-panel installations, while the Cat.5e rating ensures reliable Gigabit Ethernet performance.

Highlights

• 24 shielded RJ45 ports in 1U – maximum density without sacrificing shielding
• STP Cat.5e compliance supports 1000BASE-T and lower-speed networks
• Gold-plated phosphor bronze contacts resist corrosion and maintain signal clarity
• SPCC steel panel with blue powder coating for durability and easy rack identification
• Tool-free IDC termination with color-coded T568A/B wiring guides

In daily use

Termination is straightforward: punch down solid or stranded 22–26 AWG conductors using a standard 110-style tool. The rear cable manager keeps bundles tidy, and the front labeling area lets you document port assignments. In a 19-inch rack, the panel occupies only 1U, leaving room for switches, servers, or cable management. The shielded design is particularly effective near motors, radio equipment, or dense cable trays where unshielded panels often suffer from alien crosstalk.

Full specifications

• Product type: Network patch panel
• Rack size: 19-inch
• Rack units: 1U
• Number of ports: 24
• Connector type: RJ45
• Cabling standard: Cat.5e
• Shielding type: STP
• Color: Blue
• Termination type: IDC
• Wiring standard: TIA/EIA 568A/B
• Panel material: SPCC steel
• Contact material: Phosphor bronze
• Contact plating: Gold-plated (50 micron)
• Wire gauge compatibility: 22-26 AWG solid or stranded
• Mounting type: Rack-mountable
• Operating temperature: -10°C to 60°C
• Storage temperature: -40°C to 70°C
• Humidity range: 10% to 90% RH (non-condensing)
• Flammability rating: UL 94V-0
• Compliance: RoHS

Final note

For high-density, interference-prone installations, this shielded patch panel offers a reliable, space-efficient solution that maintains signal clarity and simplifies cable management.
