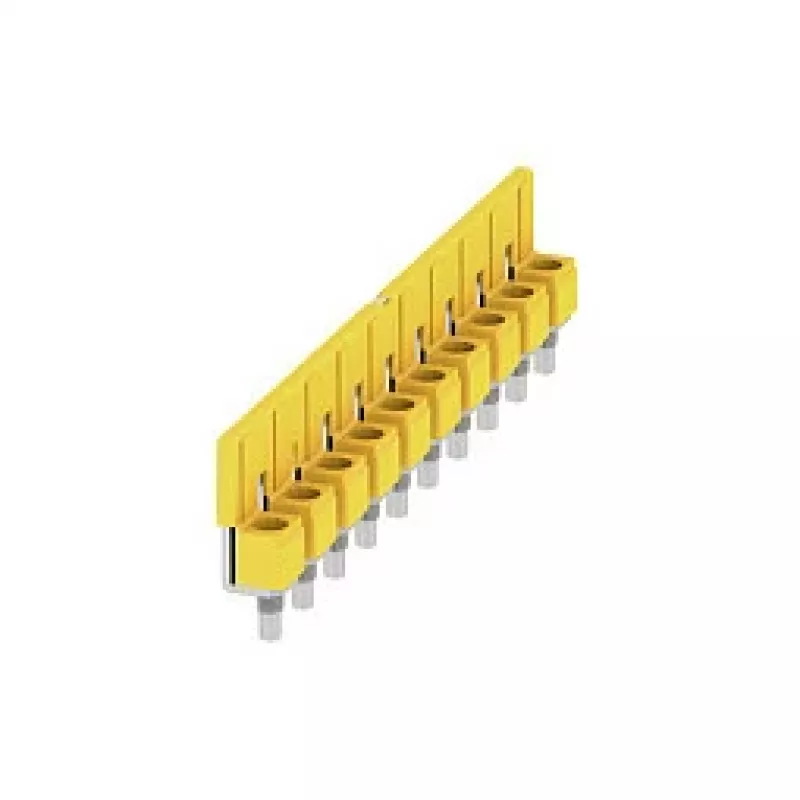

Weidmüller WQV 10/10 dwarsverbinder, 10-polig, 10 mm², geel, polyamide, 20 stuks

The Weidmüller WQV 10/10 is a high-quality cross-connector designed for use with Weidmüller W-Series terminal blocks. It enables efficient and reliable electrical connections across multiple poles, saving time and reducing wiring errors. This cross-connector is made from durable polyamide (PA) with a yellow color and features a flammability rating of UL 94 V-0, ensuring safety in demanding environments.

Advantages

• Simplifies wiring by connecting multiple terminal blocks in parallel
• Space-saving design with a pitch of 10 mm
• Wide operating temperature range from -60 °C to 130 °C
• High rated voltage up to 1000 V (IEC) and 600 V (UL)
• Rated current of 57 A (IEC) for robust performance
• Easy plug-in mounting without tools

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution applications
• Machine and plant engineering

Key specifications

• Product Type: Cross-Connector
• Number of Poles: 10
• Nominal Cross-Section: 10 mm²
• Material: Polyamide (PA)
• Color: Yellow
• Operating Temperature: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Rated Voltage (IEC): 1000 V
• Rated Voltage (UL): 600 V
• Rated Current (IEC): 57 A
• Mounting Type: Plug-in
• Packaging Quantity: 20 pieces
• Connection Method: Direct Plug-in
• Pitch: 10 mm
• Approvals: CE, cULus

Recommendations

For optimal performance, pair the WQV 10/10 with Weidmüller W-Series terminal blocks. Ensure proper installation according to manufacturer guidelines to maintain safety and reliability.
