Weinzierl KNX IP Router 752 secure, KNX IP-router/IP-interface, 1 TE, 18 mm, 5249

Supports KNX Secure for both routing and tunneling, with up to 8 simultaneous KNXnet/IP tunneling connections and Power over Ethernet (IEEE 802.3af Class 1) or 12-30 V DC supply.

Overview

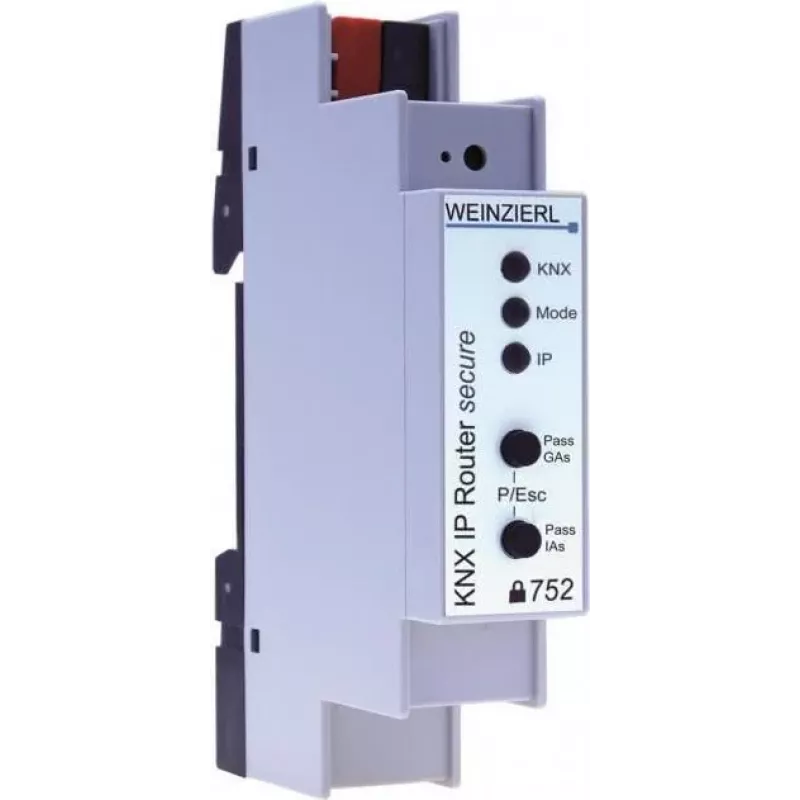

The Weinzierl KNX IP Router 752 secure is a compact DIN rail mounted device that combines a KNX IP router and interface in a single 1 TE (18 mm) module. It connects KNX TP (Twisted Pair) to Ethernet via a 10/100BaseT RJ45 port, enabling KNXnet/IP routing and tunneling. The device supports KNX Secure, ensuring encrypted communication for both routing and tunneling. Configuration is done via ETS (Engineering Tool Software).

What stands out

• KNX Secure support for routing and tunneling
• Up to 8 simultaneous KNXnet/IP tunneling connections
• Power over Ethernet (PoE) or external 12-30 V DC
• Compact 1 TE (18 mm) DIN rail mounting
• IP address assignment via static IP or DHCP

Technical details

• Product type: KNX IP Router / KNX IP Interface
• KNX bus connection: TP (Twisted Pair)
• Ethernet connection: 10/100BaseT (RJ45)
• Power supply: PoE IEEE 802.3af Class 1 or 12-30 V DC external
• KNX current consumption: max. 10 mA
• External/PoE current consumption: max. 50 mA
• IP address assignment: static IP / DHCP
• KNXnet/IP tunneling connections: up to 8 simultaneous
• KNXnet/IP routing: yes
• Configuration software: ETS
• Mounting type: DIN rail (EN 60715)
• Module width: 1 TE (18 mm)
• Operating temperature: -5 °C to +45 °C
• Protection class: IP20
• Firmware update: via Ethernet

Our verdict

An efficient and secure solution for integrating KNX installations into IP networks, ideal for both residential and commercial building automation.
