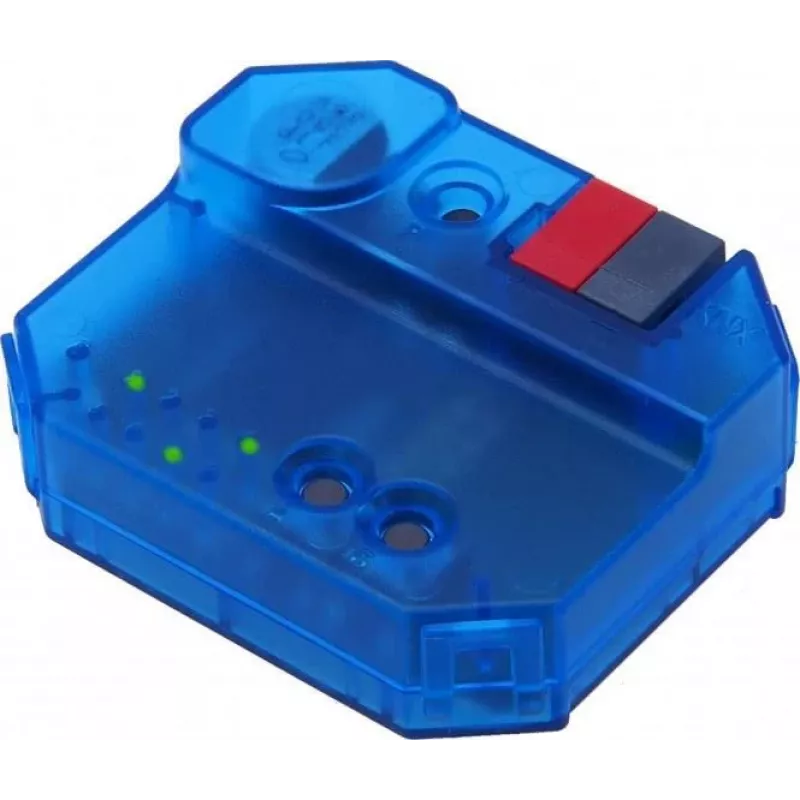

Weinzierl 5269 KNX ENO 626 Secure Gateway EnOcean 8+8 kanalen bidirectioneel

Integrating EnOcean wireless sensors and actuators into a KNX installation often requires a bridge that can translate between the two protocols reliably and securely. The Weinzierl 5269 KNX ENO 626 secure Gateway solves this by providing bidirectional communication between KNX TP and EnOcean networks, with support for KNX Data Secure to protect your building automation data.

Who is it for

This gateway is intended for system integrators and building automation professionals who need to connect EnOcean energy-harvesting devices—such as switches, sensors, and actuators—to a KNX installation. It is suitable for both new projects and retrofits where wireless EnOcean devices are preferred or required.

Main features

• Bidirectional mapping: 8 channels from EnOcean to KNX and 8 channels from KNX to EnOcean.
• KNX Data Secure support for encrypted communication on the KNX bus.
• EnOcean radio frequency 868.3 MHz (Europe) for reliable wireless communication.
• Compact DIN rail housing (1 TE width) for easy installation in distribution boards.
• Powered directly from the KNX bus (21-30V DC), no separate power supply needed.
• Configuration via ETS (Engineering Tool Software) for seamless integration into KNX projects.

Specifications

• Product type: KNX EnOcean Gateway
• Communication protocols: KNX TP, EnOcean
• EnOcean frequency: 868.3 MHz
• Mapping channels: 8 EnOcean to KNX, 8 KNX to EnOcean
• Power supply: KNX bus (21-30V DC)
• Current consumption: max. 10 mA
• Mounting: DIN rail (1 TE)
• Dimensions (H x W x D): 90 x 18 x 64 mm
• Operating temperature: 0°C to +45°C
• Protection class: IP20
• Housing material: Plastic
• Firmware update: via KNX
• Certification: KNX Certified

Tips

When planning your EnOcean integration, ensure that the EnOcean devices you intend to use operate on the 868.3 MHz frequency and are compatible with the EnOcean Equipment Profiles (EEP) supported by the gateway. Use ETS to configure the mapping and enable KNX Data Secure for enhanced security.
