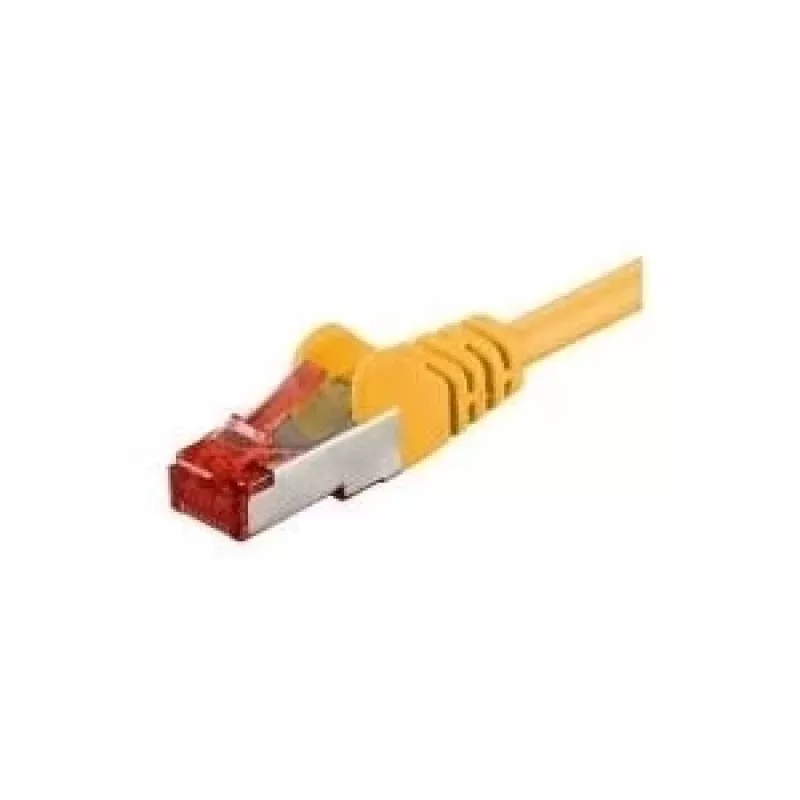

Wentronic Goobay CAT 6 patchkabel, S/FTP (PiMF), geel, 50 m – LSZH halogeenvrij, koper 68309

For installations where fire safety is non-negotiable, this 50-metre CAT 6 patch cable uses an LSZH jacket that emits almost no smoke and zero halogens when exposed to flame. The S/FTP shielding with individually foiled pairs (PiMF) and an overall braid keeps alien crosstalk out of dense cable bundles, making it a reliable backbone for structured cabling in offices, schools, and public buildings.

Highlights

• CAT 6 performance with up to 250 MHz bandwidth and 1 Gbps data rate
• S/FTP (PiMF) shielding: foil around each pair plus overall braid
• LSZH halogen-free jacket meets IEC 60332-1-2 flame retardancy
• Pure copper stranded conductors (27 AWG) for flexibility and long-term signal integrity
• Gold-plated RJ45 connectors (50µ) resist corrosion and ensure reliable contacts
• Yellow jacket for high visibility in cable trays and server rooms

In daily use

Terminate this cable into patch panels, wall outlets, or directly between switches and servers. The stranded copper core bends easily around corners without breaking, while the rugged LSZH jacket stands up to pulling through conduits. Because it is halogen-free, it is approved for use in areas with strict fire regulations, including hospitals, airports, and underground transport systems.

Full specifications

• Brand: Wentronic Goobay
• Model: 68309
• MPN: 68309
• EAN: 4040849683091
• Cable standard: CAT 6
• Cable type: Patch cable
• Shielding: S/FTP (PiMF)
• Length: 50 m
• Colour: Yellow
• Conductor material: Copper (Cu)
• Conductor type: Stranded
• Conductor gauge: 27 AWG
• Jacket material: LSZH (halogen-free)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated (50µ)
• Data transfer rate: up to 1 Gbps (10/100/1000 Mbps)
• Bandwidth: up to 250 MHz
• Wiring standard: TIA/EIA 568B
• Number of pairs: 4
• Outer diameter: 6.2 mm
• Operating temperature: -20 °C to +60 °C
• Flame retardancy: IEC 60332-1-2

Final note

When safety and performance must coexist, this LSZH CAT 6 cable delivers both without compromise.
