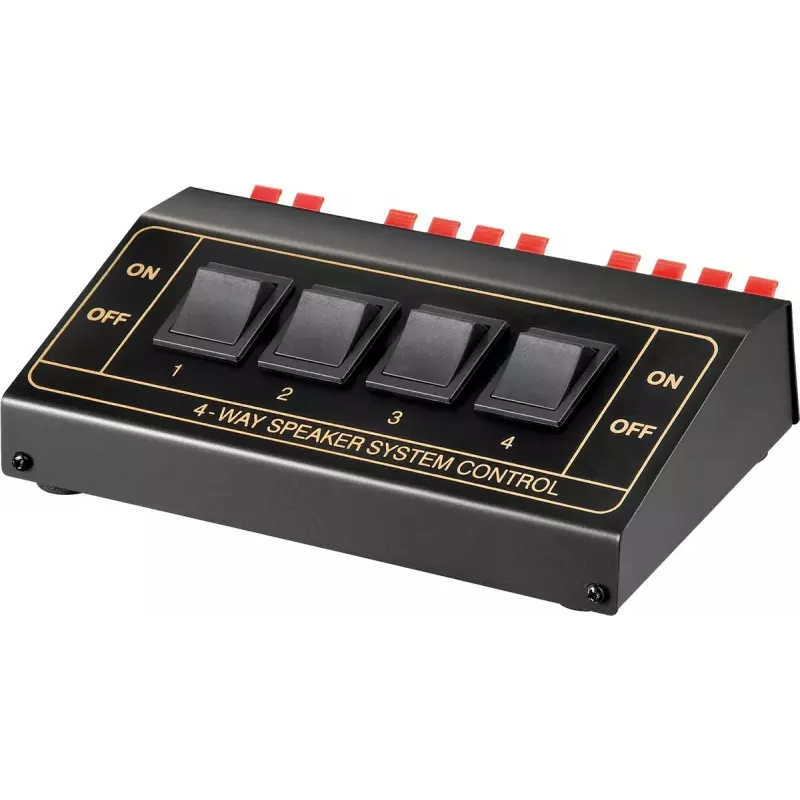

Luidsprekeromschakelaar Goobay 11934

The Goobay Speaker Selector 11934 lets you manage multiple speakers by connecting up to four pairs of speakers and routing up to four audio input channels to four outputs. Designed for home and small professional audio setups, it offers screw terminal connections for reliable wiring and a compact metal housing (175 x 49 x 114 mm) that supports a maximum power handling of 200 W.

Advantages

The unit provides secure screw-terminal connections for both inputs and outputs, reducing the risk of loose contacts. Its compact form factor allows easy placement in racks or near audio equipment. Constructed with robust components, the selector is suitable for distributing signals without complicated wiring or active amplification management.

Suitable for

• Home multi-room audio systems
• Small studios and rehearsal spaces
• Connecting multiple passive speakers to a single amplifier
• Temporary or fixed sound installations

Key specifications

• Brand: WENTRONIC (Goobay)
• Model / MPN: 11934
• EAN: 4040849119347
• Dimensions: 175 x 49 x 114 mm
• Max power handling: 200 W

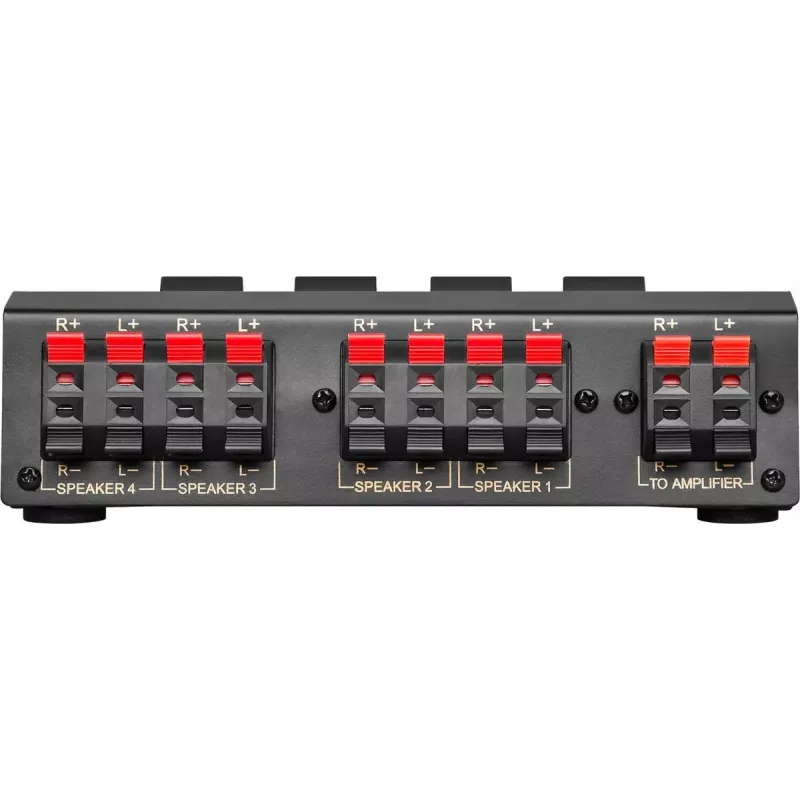

• Connections: Screw terminals for audio input and output
• Channels: Up to 4 input channels and 4 output channels

How to use

Mount the speaker selector in a convenient location near your amplifier or speaker cluster. Turn off all equipment before making connections. Secure each speaker and amplifier output to the appropriate screw terminals, observing polarity for positive and negative terminals. After all wiring is checked, power on the amplifier and adjust levels as required. Use the selector to route different inputs to the connected speaker pairs as needed.

Recommendations

Ensure the combined impedance and power ratings of connected speakers do not exceed the amplifier and the selector’s specifications. Always power down equipment before changing wiring and check polarity to avoid phase issues.
