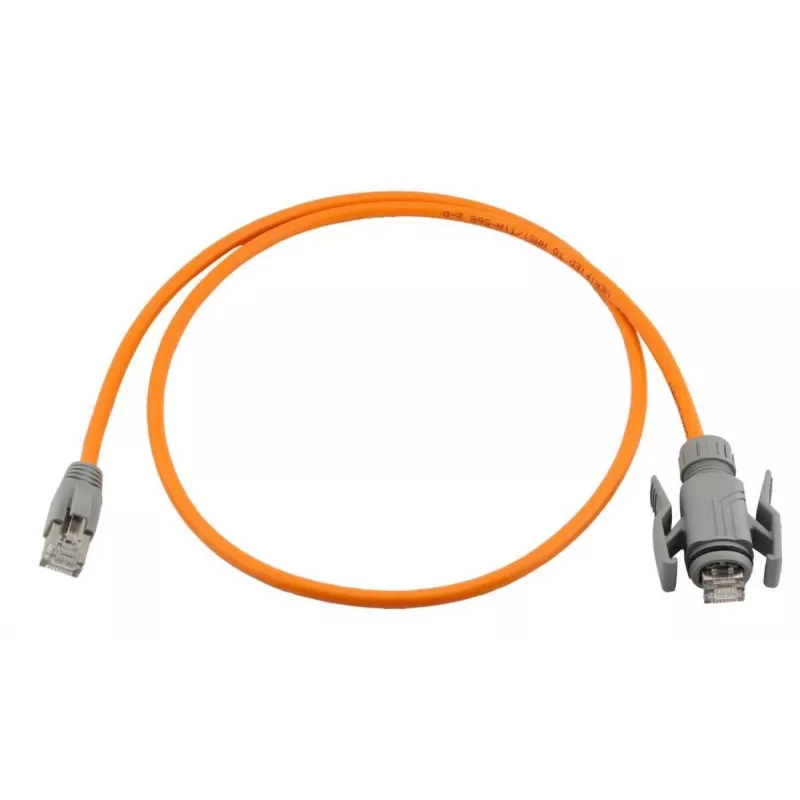

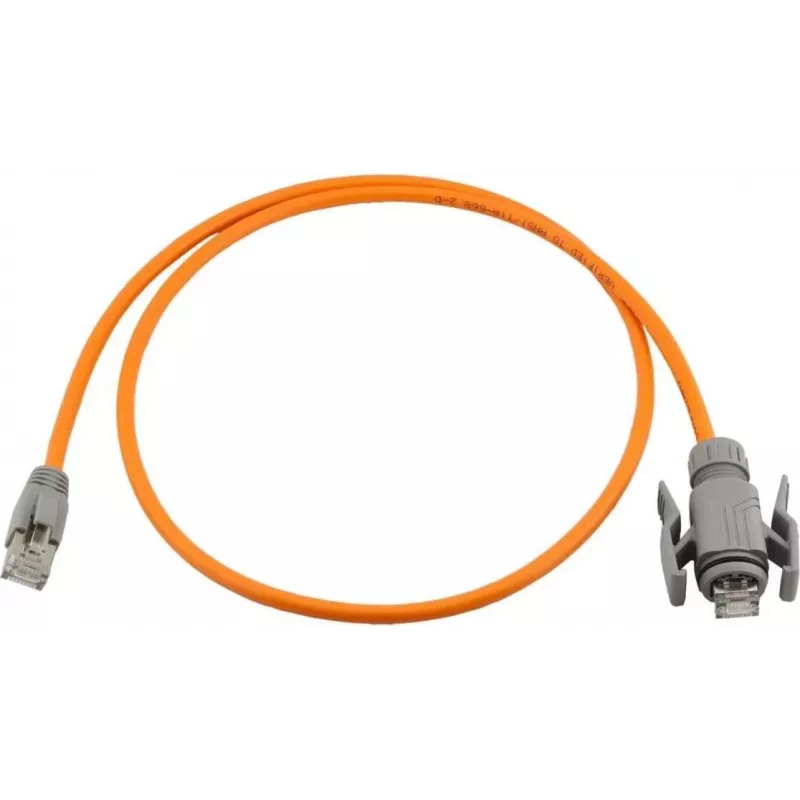

Wirewin industriële Cat.6A S/FTP PUR patchkabel, 5m, oranje, IP67 RJ45 PKW-I1-SF-K6A-PUR 5.0 OR

Industrial environments demand reliable, high-speed data connections that withstand harsh conditions. The SLIM WIREWIN Industrial Cat.6A S/FTP PUR patch cable delivers 10 Gigabit Ethernet performance with an anti-UV, oil-resistant PUR jacket and IP67-rated connectors for dust-tight, water-resistant operation in demanding applications.

Who is it for

This cable is built for industrial Ethernet, process automation, and outdoor installations where standard patch cables fail. It suits system integrators, maintenance engineers, and network technicians who need robust, high-performance connectivity in factories, warehouses, or outdoor enclosures.

Main features

• Cat.6A performance up to 10 Gbps and 500 MHz bandwidth
• S/FTP shielding: overall braid plus individual foil-screened pairs for superior EMI protection
• Durable PUR jacket with anti-UV, oil, chemical, and abrasion resistance
• IP67-rated RJ45 connectors: dust-tight and protected against temporary immersion
• 5.0-meter length with stranded bare copper conductors (AWG 26/7) for flexibility
• Gold-plated contacts for reliable signal integrity

Specifications

• Cable type: Industrial patch cable
• Category: Cat.6A (Category 6A)
• Shielding: S/FTP (overall braid, individual foil-screened pairs)
• Jacket material: PUR (polyurethane), anti-UV, oil/chemical/abrasion resistant
• Connector type: RJ45 (both ends), IP67 rated
• Length: 5.0 m
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Bare copper, stranded, AWG 26/7
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS, REACH

Tips

For outdoor or washdown areas, ensure the IP67 connectors are fully mated and consider using protective caps when disconnected to maintain sealing integrity.
