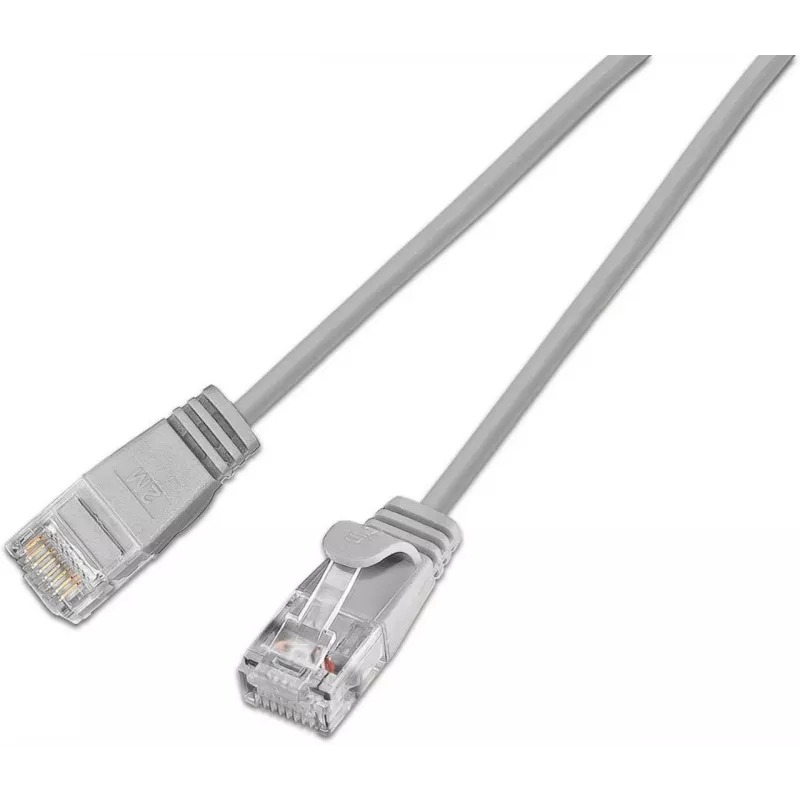

Wirewin SLIM KAT6A 10 Gigabit Light-patchkabel rond, U/UTP, Ø 3,6 mm, grijs (SLIM-L-UU-K6A 0.25)

Experience 10 Gigabit Ethernet performance in an ultra-slim 3.6 mm round patch cable. This SLIM WIREWINE Cat.6A U/UTP cable delivers 500 MHz bandwidth and supports PoE++ for high-speed, power-hungry devices.

Overview

Designed for space-constrained high-density patching, this 0.25 m grey patch cable combines exceptional performance with a reduced diameter. The stranded copper conductors (AWG 28/7) and gold-plated RJ45 connectors ensure reliable connectivity and durability. The LSZH jacket meets IEC 60332-1 flammability standards, making it suitable for public and commercial installations.

What stands out

• 10 Gigabit data transfer rate for demanding applications
• Ultra-slim 3.6 mm diameter saves space in racks and cable trays
• U/UTP shielding with stranded copper conductors for flexibility
• LSZH jacket for low smoke and zero halogen emissions
• Supports PoE, PoE+, and PoE++ (4PPoE) for power delivery

Technical details

• Cable Type: Patch Cable
• Ethernet Category: Cat.6A
• Data Transfer Rate: 10 Gbps
• Shielding: U/UTP
• Cable Shape: Round
• Cable Diameter: 3.6 mm
• Length: 0.25 m
• Colour: Grey
• Connector Type: RJ45 (8P8C) Male to RJ45 (8P8C) Male
• Connector Plating: Gold-plated (50µ")
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 28/7 (stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: Up to 500 MHz
• PoE Support: PoE, PoE+, PoE++ (4PPoE)
• Wiring Scheme: T568B
• Standards Compliance: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Flammability Rating: IEC 60332-1
• Operating Temperature: -20°C to +60°C

Our verdict

A high-performance slim Cat.6A patch cable that delivers 10 Gigabit speeds and PoE++ support in a compact, LSZH-rated design. Ideal for modern network infrastructure.
