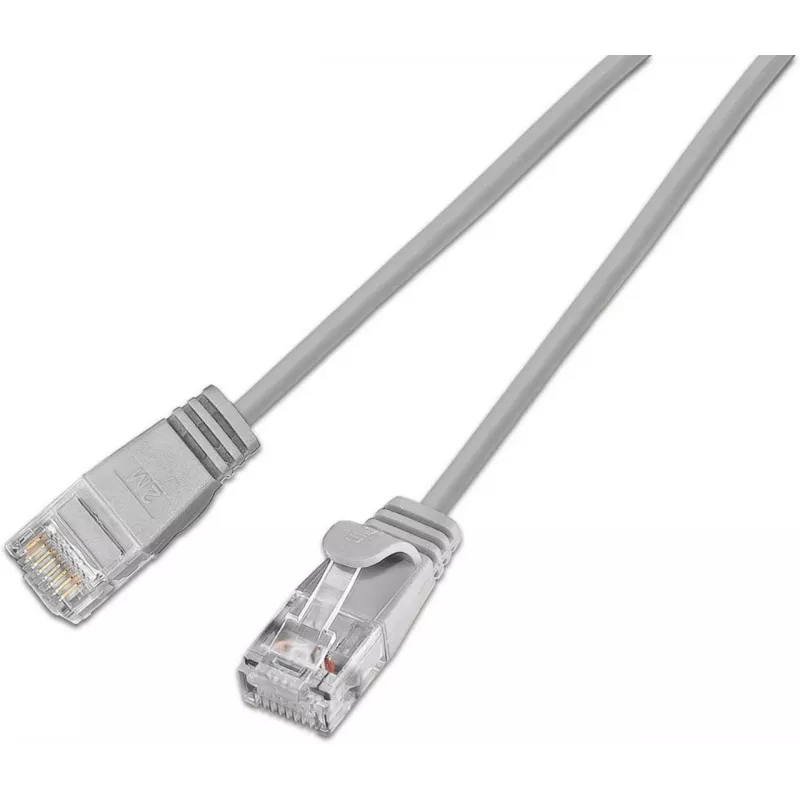

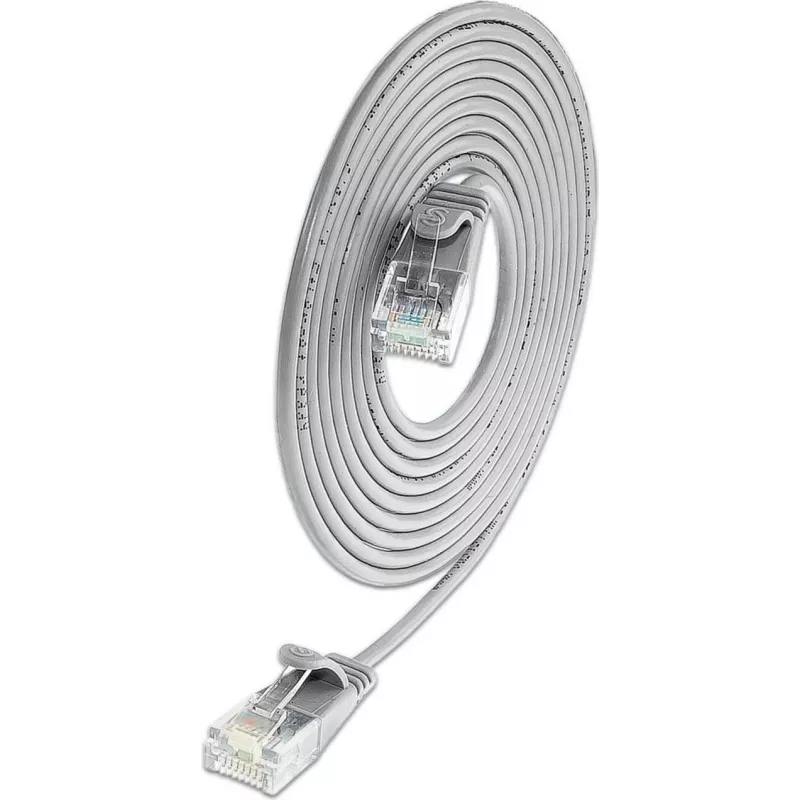

Wirewin SLIM KAT6A 10 Gigabit Light-patchkabel rond, U/UTP, Ø 3,6 mm, grijs (SLIM-L-UU-K6A 1.0)

Experience 10 Gigabit Ethernet performance in a cable with a diameter of just 3.6 mm. The SLIM WIREWINE SLIM KAT6A Lightpatchkabel delivers Cat.6A speeds with U/UTP construction, making it ideal for high-density patching where space is limited.

Overview

This 1.0 meter grey patch cable is built with stranded copper conductors (28 AWG) and gold-plated RJ45 connectors (50µ) for reliable, corrosion-resistant connections. It supports Power over Ethernet up to 4PPoE (IEEE 802.3af/at/bt), so you can power devices directly through the cable. The LSZH jacket ensures low smoke and zero halogen emissions in case of fire, enhancing safety in enclosed spaces.

What stands out

• Ultra-slim 3.6 mm diameter saves space in racks and improves airflow.
• 10 Gigabit Ethernet ready with 500 MHz bandwidth.
• Snagless molded boots protect the locking tab during installation.
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA 568-C.2 standards.

Technical details

• Cable type: Ethernet Patch Cable, Cat.6A
• Shielding: U/UTP (unshielded)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 1.0 m
• Colour: Grey
• Connector: RJ45 (8P8C) male to RJ45 (8P8C) male, gold-plated (50µ)
• Conductor: Stranded copper, 28 AWG
• Jacket material: LSZH (Low Smoke Zero Halogen)
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Wiring scheme: TIA/EIA 568B
• Boot type: Molded, snagless

Our verdict

A high-performance slim patch cable that combines 10G speed with space-saving design, perfect for modern network installations.
