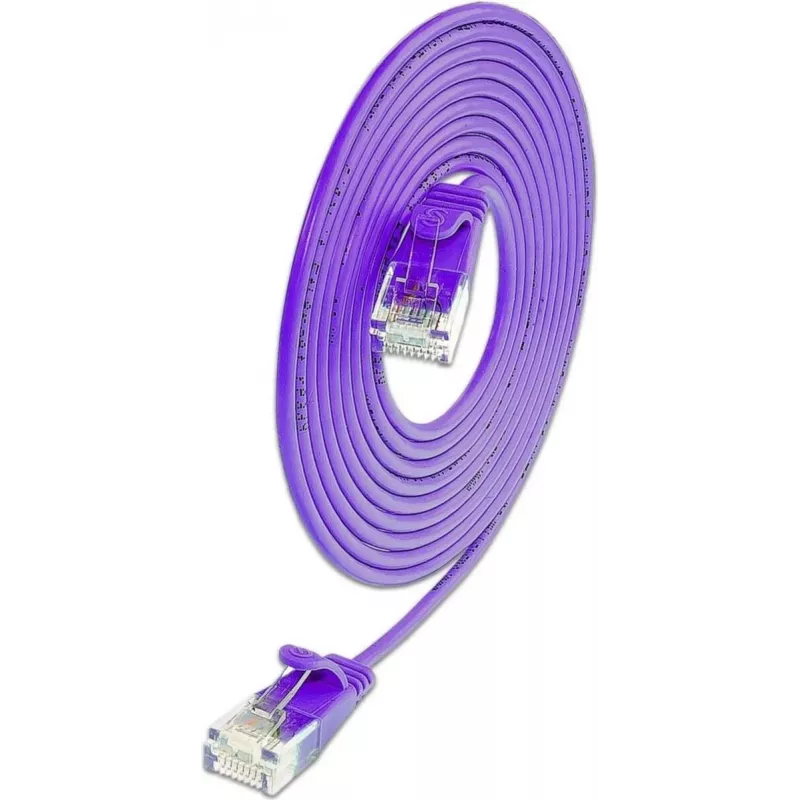

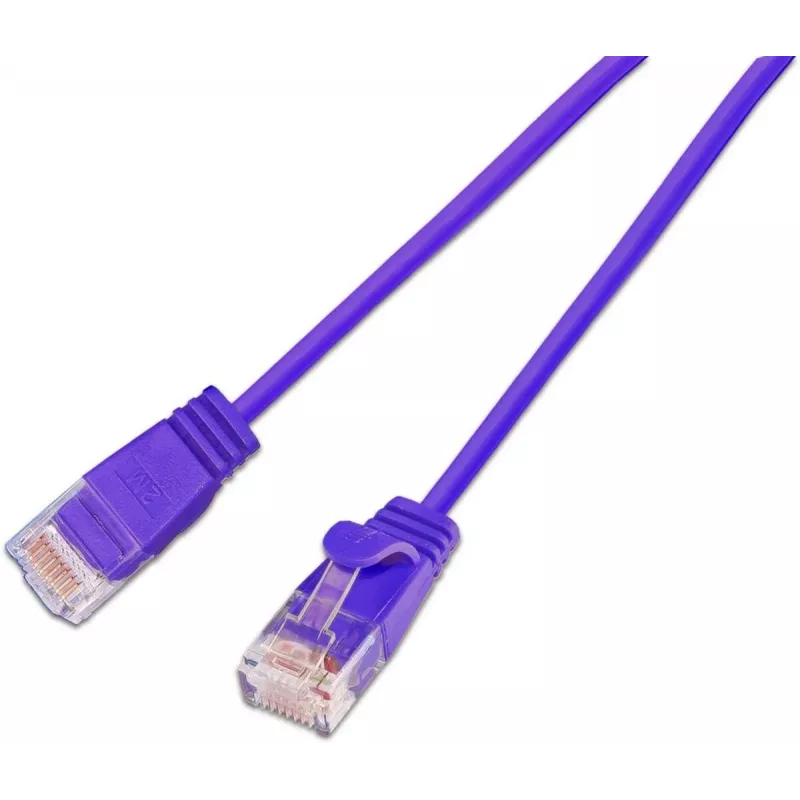

Wirewin SLIM KAT6A 10 Gigabit Light-patchkabel rond, U/UTP, Ø 3,6 mm, violet (SLIM-L-UU-K6A 3.0 VT)

This slim Cat.6A patch cable delivers 10 Gigabit Ethernet in a round, space-saving design with a 3.6 mm outer diameter. Its U/UTP construction and LSZH jacket make it suitable for high-density installations where airflow and fire safety are priorities.

Highlights

• 10 Gigabit Ethernet performance up to 500 MHz
• Round, slim 3.6 mm diameter for easy routing and improved airflow
• U/UTP unshielded twisted pair construction
• LSZH (Low Smoke Zero Halogen) jacket
• Supports PoE, PoE+, and 4PPoE (PoE++)
• Stranded copper conductors (AWG 30/7) for flexibility

In daily use

The violet colour aids identification in crowded patch panels. With a length of 3.0 meters, it connects devices in server racks, workstations, or network cabinets without excess slack. The slim profile reduces cable bulk, improving airflow and simplifying cable management.

Full specifications

• Cable Type: Patch Cable
• Ethernet Category: Cat.6A
• Shielding: U/UTP (Unshielded/Unshielded Twisted Pair)
• Data Transfer Rate: 10 Gigabit Ethernet
• Bandwidth: Up to 500 MHz
• Cable Construction: Round
• Outer Diameter: 3.6 mm
• Conductor Gauge: AWG 30/7 (Stranded)
• Conductor Material: Copper
• Jacket Material: LSZH
• Connector Type: RJ45 Male to RJ45 Male
• Pin Assignment: TIA/EIA 568B
• Cable Length: 3.0 m
• Colour: Violet
• PoE Support: PoE, PoE+, 4PPoE/PoE++
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, RoHS, REACH

Final note

Ideal for high-density 10G networks where space and safety matter, this cable combines performance with a slim, halogen-free design.
