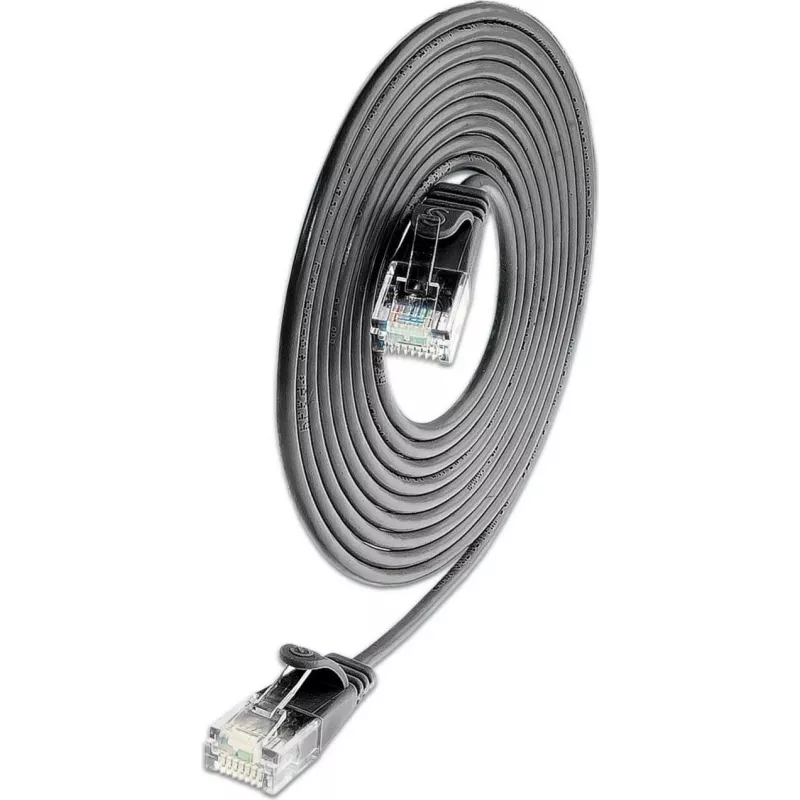

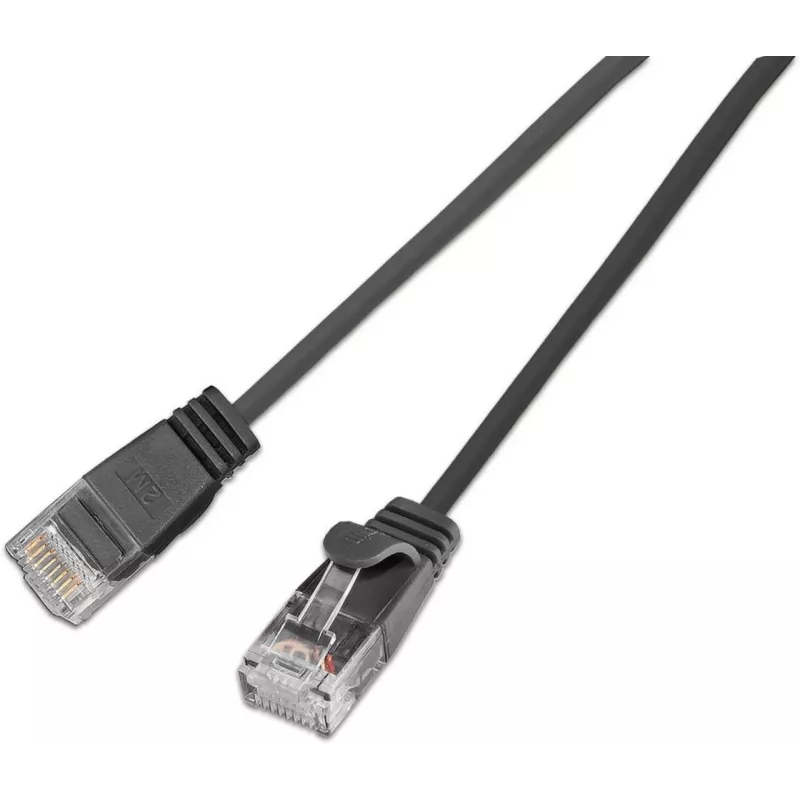

Wirewin SLIM KAT6A 10 Gigabit Light-patchkabel rond, U/UTP, Ø 3,6 mm, zwart (SLIM-L-UU-K6A 5.0 BK)

High-density network installations often struggle with bulky cables that block airflow and complicate cable management. This 5-meter slim Cat6A patch cable solves that problem with a 3.6 mm round profile, delivering full 10 Gigabit performance in a space-saving design.

Who is it for

Network administrators and IT professionals working in data centers, server rooms, and high-density office environments who need reliable high-speed connectivity without sacrificing rack space or airflow.

Main features

• Supports 10GBASE-T Ethernet with 500 MHz bandwidth
• U/UTP unshielded twisted pair construction for flexibility
• Slim 3.6 mm outer diameter reduces cable bulk
• Gold-plated RJ45 connectors (50µ") ensure reliable connections
• LSZH jacket is halogen-free and low smoke for safety
• PoE support up to 4PPoE (IEEE 802.3af/at/bt)
• Molded strain relief with latch protection for durability

Specifications

• Cable standard: Cat6A
• Shielding: U/UTP
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 5.0 m
• Connector: RJ45 (8P8C)
• Conductor: 4x2 AWG 30/7 stranded copper
• Jacket material: LSZH
• Color: Black
• Operating temperature: -20°C to +60°C
• Wiring scheme: TIA/EIA 568B
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For best performance, avoid sharp bends and keep the cable away from sources of electromagnetic interference. The slim design is ideal for high-density patch panels where space is at a premium.
