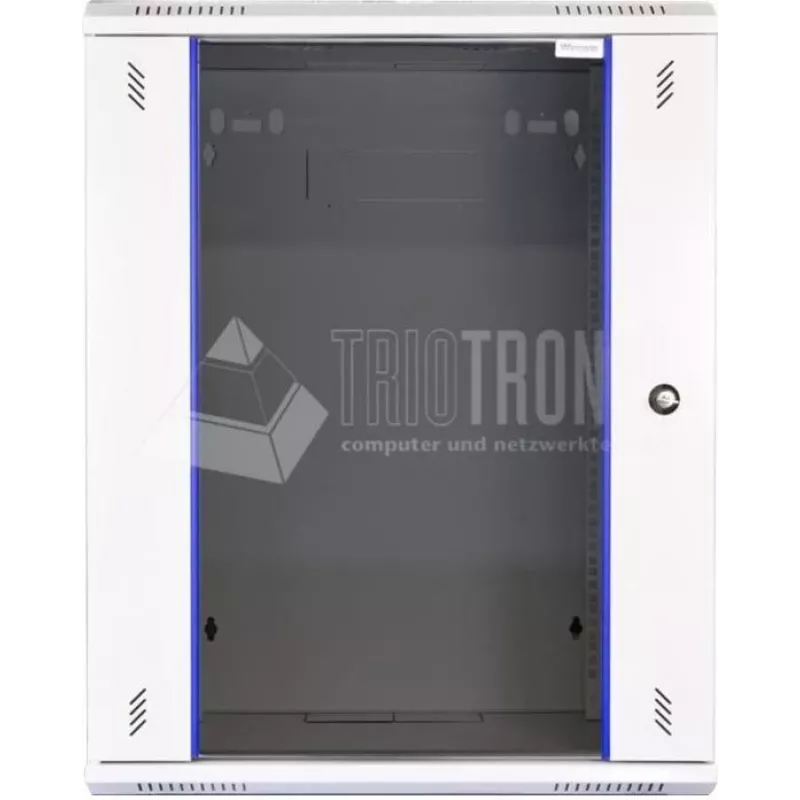

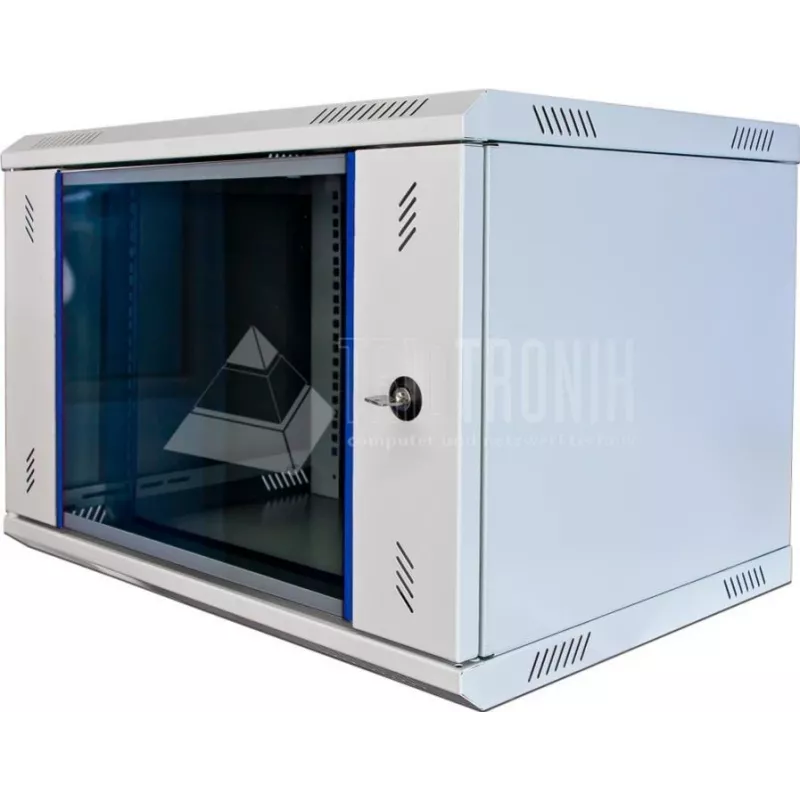

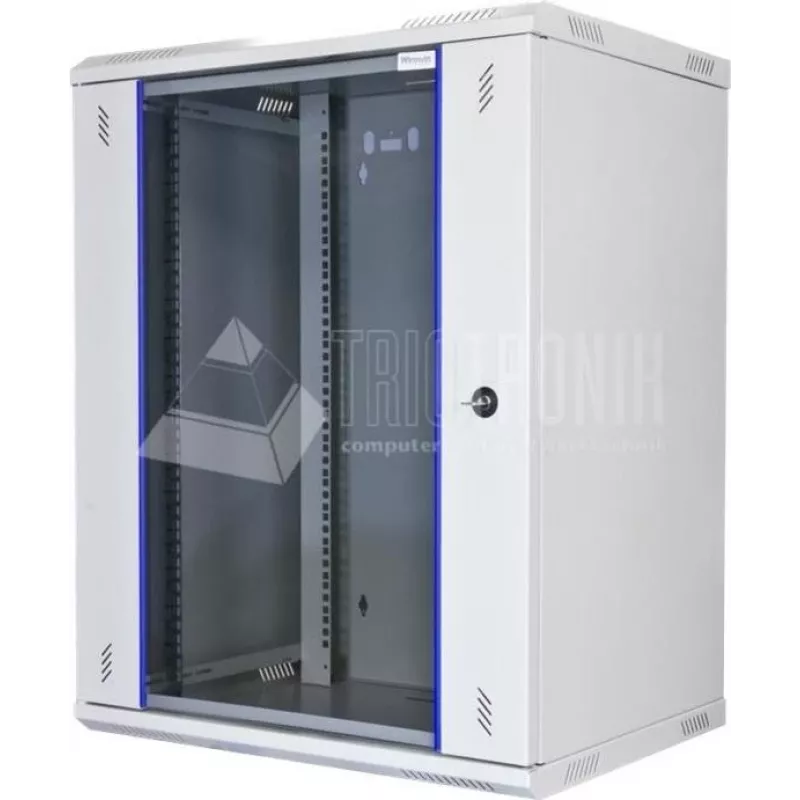

Wirewin WCAB PS2 600X450X15U wandgemonteerd rack 15U grijs

With a 60 kg static load capacity and a lockable tempered glass front door, this 15U wall-mounted rack secures your network, server, and telecommunications equipment in a compact footprint.

Overview

The Wirewin WCAB PS2 600X450X15U is a pre-assembled 19-inch rack enclosure designed for wall mounting. It features a welded SPCC cold-rolled steel frame with a powder-coated grey finish (RAL 7035) for durability and corrosion resistance. The rack provides 15 rack units of space, with external dimensions of 600 mm width, 450 mm depth, and 750 mm height, making it suitable for installations where floor space is limited.

What stands out

• Lockable tempered glass front door protects equipment while allowing visual monitoring.
• Removable, lockable side panels provide easy access for maintenance and cable management.
• Top and bottom cable entry with brush strips keeps dust out and cables organized.
• Passive ventilation and fan-ready cut-outs support optional active cooling.
• Pre-assembled welded frame reduces installation time; mounting hardware, cage nuts, and keys included.

Technical details

• Rack Units: 15U
• Mounting Type: Wall-mounted
• External Dimensions (W x D x H): 600 x 450 x 750 mm
• Material: SPCC Cold Rolled Steel
• Finish: Powder Coated, Grey (RAL 7035)
• Door Type: Lockable Tempered Glass Front Door
• Side Panels: Removable, Lockable
• Cable Entry: Top and Bottom with Brush Strips
• Ventilation: Passive, Fan-Ready Cut-outs
• Max Static Load Capacity: 60 kg
• Protection Rating: IP20
• Rack Standard: 19-inch EIA-310-D
• Included Accessories: Mounting hardware, cage nuts, keys

Our verdict

The Wirewin WCAB PS2 600X450X15U offers a robust and secure wall-mount solution for small to medium network installations, combining solid construction with practical features like lockable access and cable management.
