Wittenberg Antennen 0,5 m SMB bus naar SMB stekker RG174 antennekabel 103516

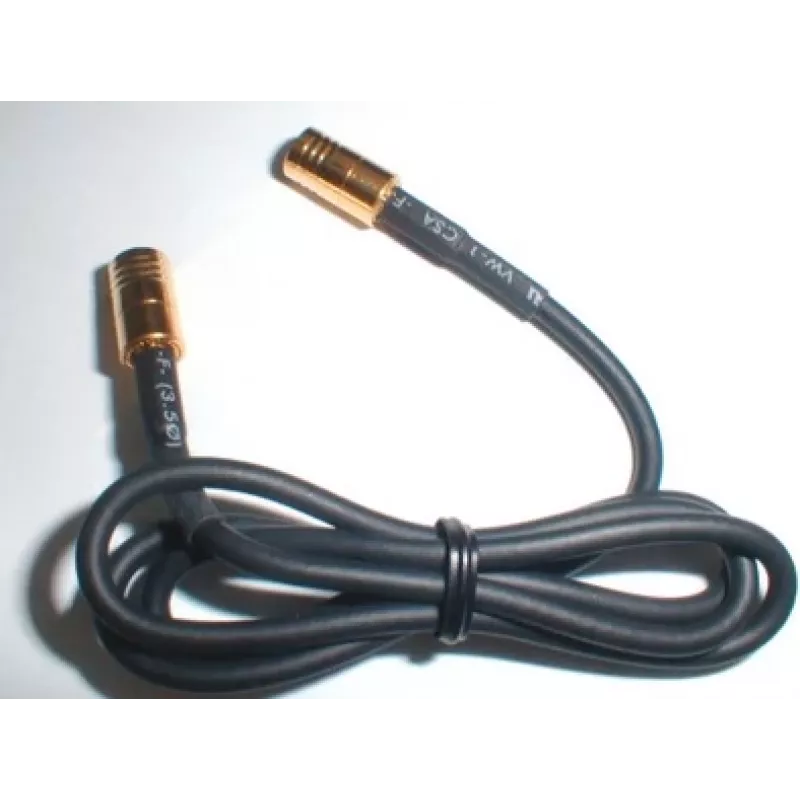

This antenna cable pairs an SMB female connector with an SMB male connector on a 0.5 m RG174 coaxial line, making it a direct fit for compact RF links where space is tight. The 50 Ω impedance and gold-plated contacts keep signal loss low across DC to 3 GHz, so it works for GPS, GSM, WLAN, DVB-T and similar mobile communication setups.

Highlights

• Length: 0.5 m
• Connectors: SMB female to SMB male
• Cable type: RG174 coaxial
• Impedance: 50 Ω
• Frequency range: DC to 3 GHz
• Colour: black

In daily use

The thin 2.8 mm jacket and 15 mm minimum bend radius make routing easy in dense equipment. Single braid shielding and a PVC jacket hold up in normal indoor conditions, with an operating range of -20 °C to +70 °C.

Full specifications

• Connector 1: SMB female
• Connector 2: SMB male
• Cable length: 0.5 m
• Cable type: RG174
• Impedance: 50 Ω
• Frequency band: DC - 3 GHz
• Attenuation: 0.75 dB @ 1 GHz
• Jacket material: PVC
• Jacket outer diameter: 2.8 mm
• Minimum bend radius: 15 mm
• Operating temperature: -20 °C to +70 °C
• Product colour: Black

Final note

A compact SMB-to-SMB pigtail for short RF runs where a reliable 50 Ω connection matters.
