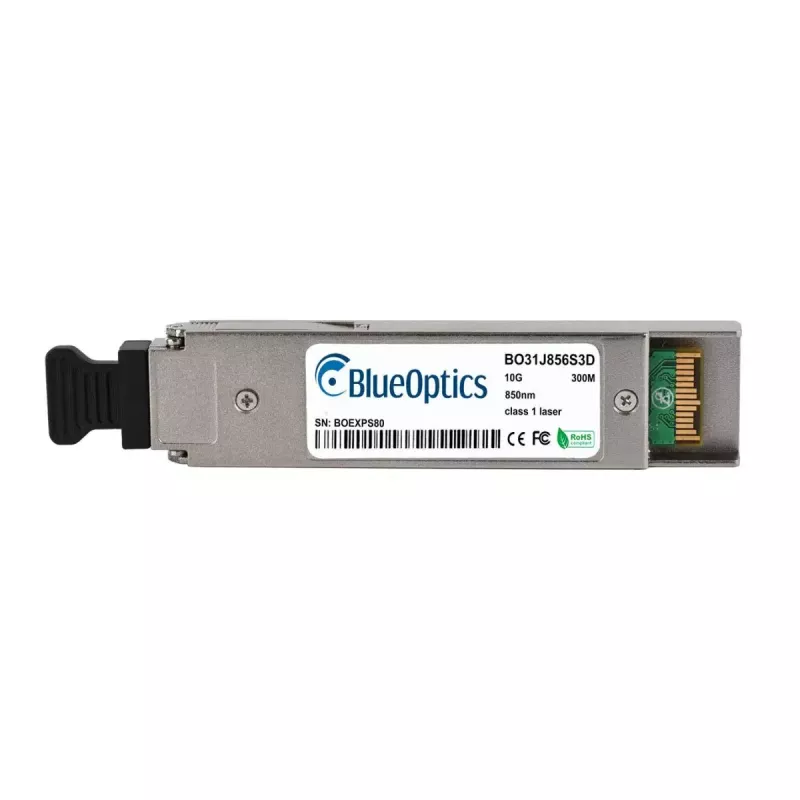

XFP-transceivermodule BlueOptics 9062096-BO 850 nm 300 m

The BlueOptics 9062096-BO XFP transceiver module is a 10GBASE-SR optical interface designed for multimode fiber links. It operates at an 850 nm wavelength, supports transmission distances up to 300 m, and uses an LC duplex fiber connector. The module is MSA-compliant and intended for use in network equipment that accepts XFP optics. It is offered in a compact grey housing and weighs approximately 20 g.

Advantages

This XFP transceiver offers compliance with industry MSA standards for mechanical and electrical interoperability, facilitating replacement or upgrade of compatible 10GBASE-SR ports. It supports bidirectional optical transmission over multimode fiber with an LC duplex connector and provides digital diagnostic monitoring (DDM/DOM) when the host device supports it. The module is designed and tested for compatibility with a wide range of network hardware and uses components selected for long operational life and stable performance.

Suitable for

• Short‑reach 10 Gigabit Ethernet links over multimode fiber
• Data center uplinks and switch-to-switch connections within campus or building networks
• Fiber channel and SDH/SONET applications up to 10 Gbit/s where XFP is supported

Key specifications

• Form factor: XFP optical transceiver
• Wavelength: 850 nm (VCSEL-based multimode operation)
• Maximum reach: up to 300 m over multimode fiber (OM3/OM4 dependent)
• Connector: LC duplex
• Data rate: up to 10 Gbit/s
• Digital diagnostics: DDM/DOM support (requires host support)
• Color: grey; weight: approximately 0.02 kg

How to use

Install the BlueOptics XFP module into the XFP slot of a compatible switch, router, storage array or other network device while the device is powered according to the vendor’s installation guidelines. Connect an LC duplex multimode fiber patch cable between the module and the remote transceiver or patch panel, ensuring correct polarity. If the host supports digital diagnostics, verify link status and monitor parameters such as supply voltage, transmit/receive power and temperature via the management interface.

Recommendations

For optimal performance, use multimode fiber rated for short‑reach 10G operation (OM3 or OM4), ensure clean LC connectors, and confirm that the network device firmware supports third‑party XFP transceivers and DDM/DOM functions. Test the link after installation and consider requesting a sample or running compatibility checks if deploying across a heterogeneous hardware environment.
