Zaag Einhell TC-CS 1250 16,5 cm zwart rood

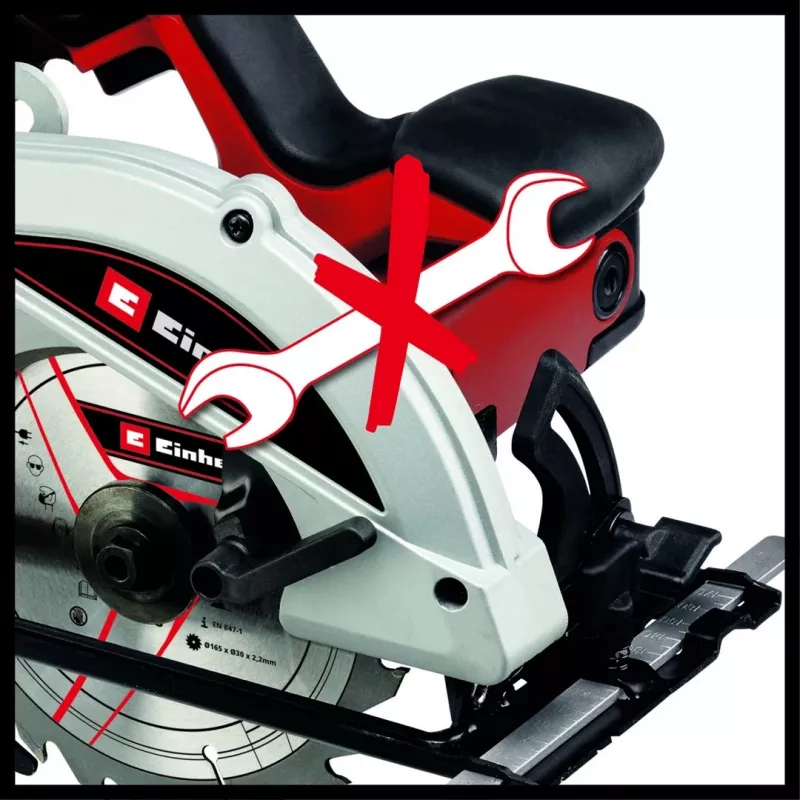

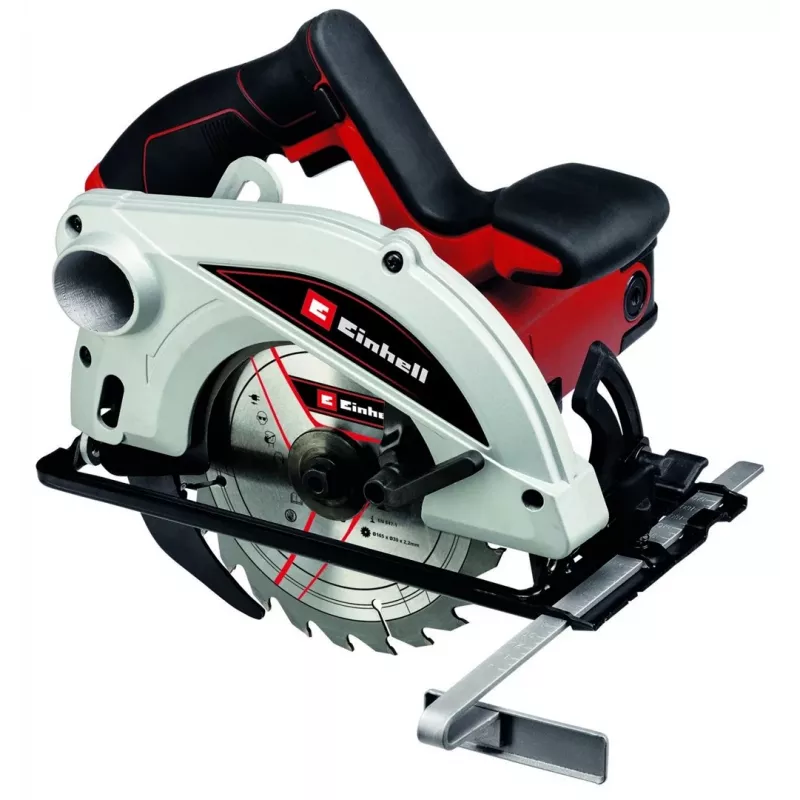

The Einhell TC-CS 1250 hand-held circular saw combines 1,250 W of motor power with a compact, easy-to-handle design. It is designed for making long, straight, and accurate sizing cuts in wood and similar materials. The saw comes with a high-grade carbide blade and supports saw blades with a 16 mm bore. Tool-free adjustment of cutting depth and tilt angle and a spindle locking system for quick blade changes simplify operation. The saw also includes a large additional handle for comfortable use, a splitter for increased safety, and a dust extraction connection for compatible vacuum systems.

Advantages

This handheld circular saw delivers strong cutting performance at up to 5,500 rpm while remaining lightweight and manageable at approximately 3.95 kg. Quick, tool-free adjustments of cutting depth and bevel angle enable efficient work. The supplied carbide saw blade provides clean cuts out of the box, and the spindle lock makes blade replacement simple. Integrated safety features such as the splitter and the dust extraction connection improve working conditions and operator safety.

Suitable for

• Long, straight cuts in wood and panel materials
• On-site carpentry and renovation tasks
• Accurate sizing cuts when used with an Einhell guide rail

Key specifications

• Manufacturer: Einhell
• Model: TC-CS 1250 (MPN 4331040, EAN 4006825649352)
• Power: 1,250 W
• No-load speed: up to 5,500 rpm
• Blade diameter: 165 mm (16.5 cm)
• Compatible blade bore: 16 mm
• Maximum cutting depth at 90°: 55 mm
• Maximum cutting depth at 45°: 38 mm
• Weight: approx. 3.95 kg
• Power source: mains (AC)

How to use

Secure the workpiece and set the required cutting depth and bevel angle using the tool-free adjustment controls. Fit the supplied carbide blade or another compatible 16 mm-bore blade, using the spindle lock to secure the blade before tightening. Hold the saw by the main and additional handles, switch on the tool, and guide it steadily along the cut line; for best results on long straight cuts, use an Einhell guide rail. Connect a compatible dust extraction device to the dust port to reduce dust while cutting. Observe the splitter and other safety devices during operation.

Recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection, and dust mask) and ensure the blade is suitable for the material being cut. For precise, straight cuts, pair the saw with the Einhell guide rail system and perform test cuts to verify depth and alignment before the final cut.
