Zebra autohouder voor inductief laden - voor Zebra TC73

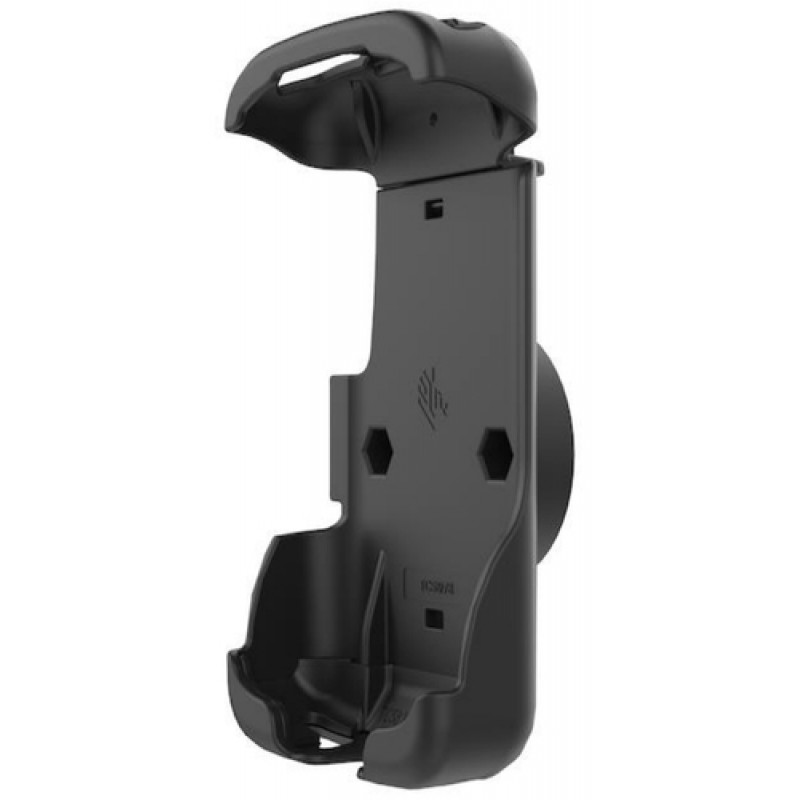

Unlike conventional cradles that rely on physical connectors, the Zebra CRD-TC7NG-NCCD-01 uses inductive charging to eliminate wear on device contacts and ensure reliable power transfer even in dusty or vibrating vehicle environments. Built for the demanding conditions of field service, logistics, and public safety, this cradle securely holds your Zebra TC73 or TC78 while keeping it fully charged and ready for action.

Highlights

• Inductive (wireless) charging technology – no exposed contacts, no corrosion risk
• One-hand docking and undocking for quick, safe operation while on the move
• AMPS hole pattern mounting – compatible with RAM mounts and other industry-standard brackets
• 12-24V DC power input via included cigarette lighter adapter (CLA)
• LED charging indicator for at-a-glance status
• Rugged construction with high-grade ABS plastic and metal components
• Operating temperature range: -20°C to 60°C (-4°F to 140°F)
• Certified to CE, FCC, and RoHS standards

In daily use

Mount the cradle on a RAM arm or AMPS-compatible bracket inside your vehicle, connect the CLA power cable, and slide your TC73 or TC78 into the cradle with one hand. The inductive charging begins automatically, and the LED confirms power delivery. The secure retention mechanism keeps the device firmly in place even on rough roads, while the one-hand release allows quick removal when you need to leave the vehicle. With no data connectivity, this cradle is purely a power and holding solution – ideal for fleets that rely on Wi-Fi or cellular connectivity directly from the device.

Full specifications

• Product type: Vehicle charging cradle
• Charging technology: Inductive (wireless)
• Compatible devices: Zebra TC73, Zebra TC78
• Power input: 12-24V DC
• Power connector: Cigarette lighter adapter (CLA)
• Mounting standard: AMPS hole pattern (RAM mount compatible)
• Material: High-grade ABS plastic, metal components
• Colour: Black
• Features: One-hand docking/undocking, secure device retention, LED charging indicator
• Operating temperature: -20°C to 60°C (-4°F to 140°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, RoHS
• Included accessories: 12-24V DC cigarette lighter adapter (CLA) power cable
• Data connectivity: None (power only)

Final note

For organisations that depend on Zebra mobile computers in the field, the CRD-TC7NG-NCCD-01 delivers a dependable, low-maintenance charging solution that keeps devices ready and protected throughout the workday.
