Zebra LI3678-SR handbarcodelezer 1D zwart, groen

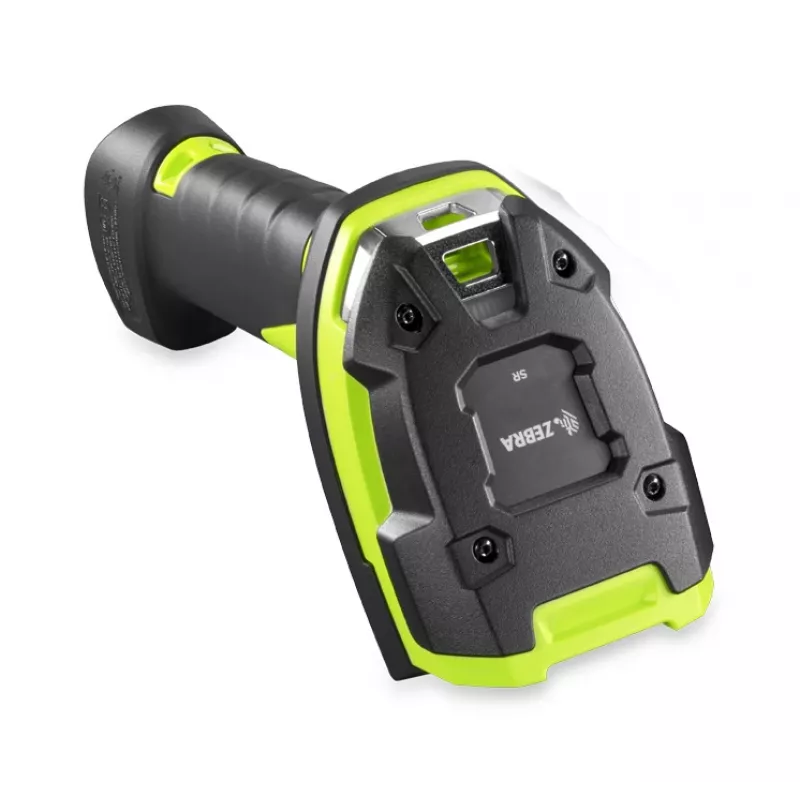

The Zebra LI3678-SR handheld barcode reader is a rugged, industrial-grade 1D scanner designed for rapid capture of linear barcodes in demanding environments. It supports common 1D symbologies such as UPC, Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Codabar, Code 11 and Code 128. The device is available in a green and black housing, offers both wired and wireless connectivity, and features an IP67 rating for dust and water resistance.

Advantages

The LI3678-SR combines a durable design with flexible connectivity: wired operation when a direct connection is needed and wireless operation with an approximate range up to 100 meters for mobile workflows. Its IP67 ingress protection, shock resistance and a 3100 mAh Lithium‑Ion battery provide reliable performance in harsh conditions. At 385 g it remains portable and easy to handle during extended use.

Suitable for

• Warehouse scanning and inventory management
• Manufacturing and production line identification
• Shipping, receiving and logistics operations
• Retail backroom and stock counting where 1D barcodes are used

Key specifications

• Scanner type: 1D linear barcode reader
• Supported 1D symbologies: U.P.C., Plessey, MSI, GS1-128 (UCC/EAN-128), Code 93, Code 39, Codabar, Code 11, Code 128
• 2D barcodes: Not supported
• Connectivity: Wired & Wireless (wireless range up to ~100 m)
• Ingress protection: IP67 (dust and water resistant)
• Battery: 3100 mAh Lithium‑Ion
• Weight: 0.385 kg
• Colours: Green, Black

How to use

For basic use, connect the LI3678-SR via the supplied cable for wired mode or enable wireless mode and pair the scanner with the host device according to the manufacturer's pairing procedure. Aim the scanner at the 1D barcode, keep the recommended distance for the barcode size and press the trigger to capture. Confirm successful reads via the device feedback (LED/aiming beam or vibration depending on configuration).

Recommendations

Use the scanner within its supported barcode types (1D only). Charge the 3100 mAh battery fully before extended mobile use, and store the device in a dry location when not in use. For best wireless performance maintain clear line-of-sight up to the specified range and follow Zebra's maintenance guidelines to preserve IP67 sealing.
