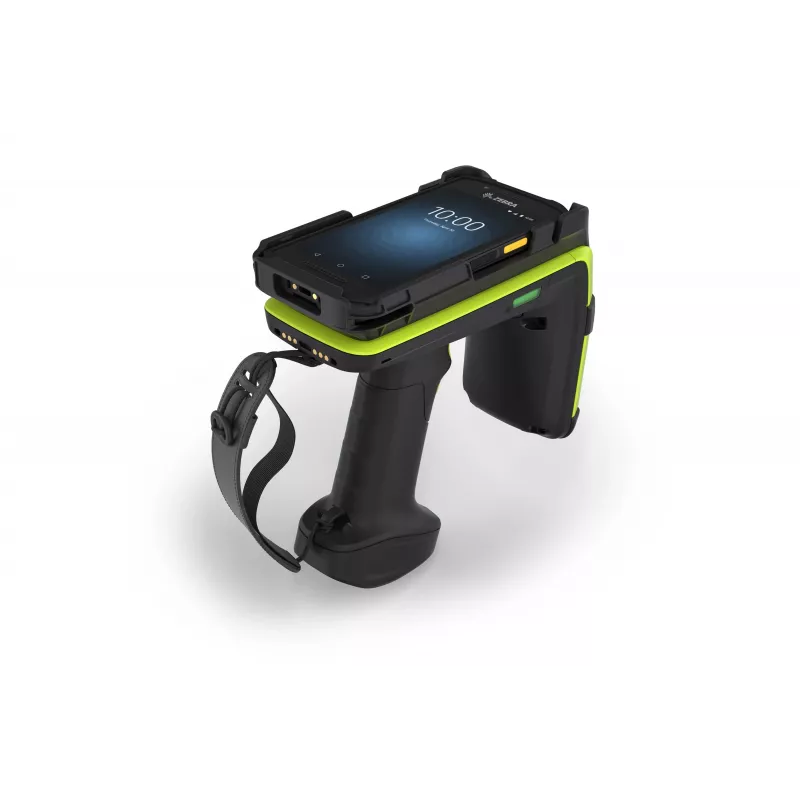

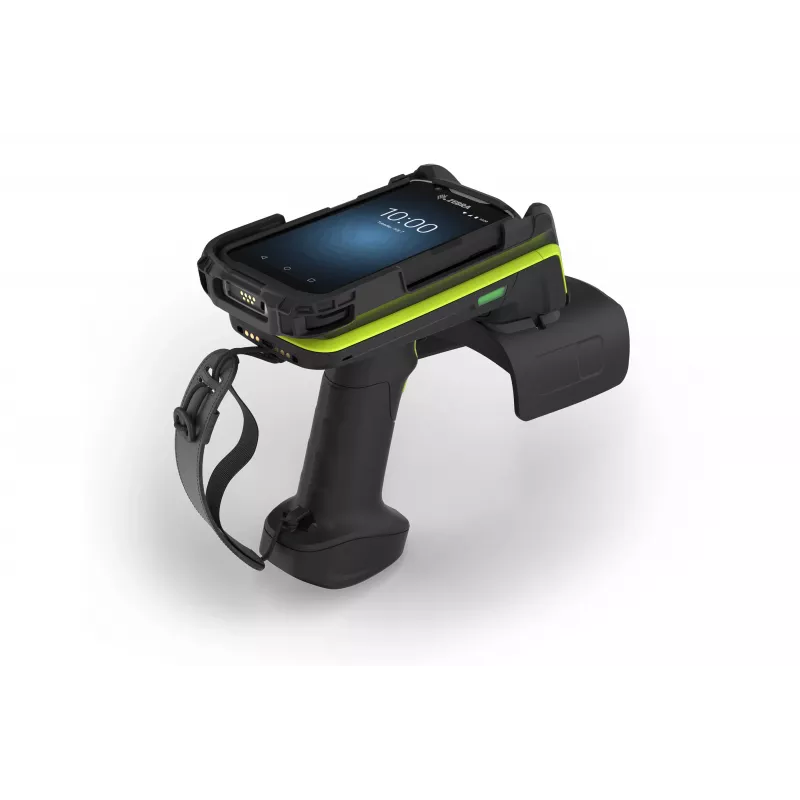

Zebra RFD90 PREM PLUS STD Range Circular UHF B

With a read rate exceeding 1300 tags per second, the Zebra RFD9031-G60G700-WR Premium Plus transforms inventory workflows into near-instantaneous data capture. This UHF RFID sled pairs with your existing Zebra mobile computer to deliver enterprise-grade RFID performance in a rugged, ergonomic form factor.

Overview

The RFD9031 is a high-performance UHF RFID reader designed for demanding environments. It features an integrated circularly polarized antenna for consistent read orientation, and supports both EPC Class 1 Gen 2 and EPC Gen2 V2 protocols. With a standard read range of up to 6.6 meters, it excels in retail, warehousing, and field service applications.

What stands out

• Blazing-fast capture: Up to 1300+ tags per second for rapid inventory counts.
• Rugged durability: IP65/IP67 sealing and multiple 1.8 m drops to concrete.
• Flexible connectivity: Bluetooth 5.3 and Wi-Fi 6 for reliable wireless operation, plus USB-C for wired use.
• All-day power: 7000 mAh PowerPrecision+ battery with hot-swap capability.
• User feedback: Haptic vibration, audible beeper, and multi-color LEDs for clear status indication.

Technical details

• RFID Frequency Band: UHF (902-928 MHz, FCC Part 15)
• Antenna: Integrated circularly polarized
• Read Range: Up to 6.6 m (22 ft)
• Protocols: EPC Class 1 Gen 2, EPC Gen2 V2
• Max Transmit Power: +33 dBm EIRP
• Wireless: Bluetooth 5.3, Wi-Fi 6 (802.11ax)
• Wired: USB-C
• Battery: 7000 mAh Li-Ion (PowerPrecision+)
• Ingress Protection: IP65 and IP67
• Drop Spec: Multiple 1.8 m drops to concrete
• Operating Temperature: -20°C to 50°C
• Memory: 256 MB RAM / 512 MB Flash
• Security: WPA3, FIPS 140-2
• Compatibility: Zebra TC5x, TC2x, ET4x, EC5x via eConnex™ adapter

Our verdict

The RFD9031 Premium Plus is a top-tier RFID sled that combines exceptional read performance with rugged reliability. It is an ideal choice for enterprises seeking to maximize efficiency in asset tracking and inventory management.
